SRX1400: Front slot labeled 3 when installed in conjunction with an SPC installed in
slot 1.
•
SRX3400: Rear slots labeled 5 through 7.
•
SRX3600: Rear slots labeled 10 through 12.
Supported Slots
NPCs are cold-swap-only modules. You must power-off the services gateway before
removing, replacing, or adding NPCs.
Swapping
SERVICE LED, one bicolor
•
Green–The NPC is mapped to an IOC and is actively carrying traffic.
•
Amber–The NPC is mapped to a IOC, but there is no SPC present or reachable in the
system so all traffic is dropped.
•
Off–The NPC is not carrying traffic.
OK/FAIL LED, one bicolor
•
Steady Green–The NPC is operating normally.
•
Blinking Green–The NPC is preparing for hot-swap event.
•
Red–The NPC has failed and is not operating normally.
•
Off–The NPC is powered down.
LEDs

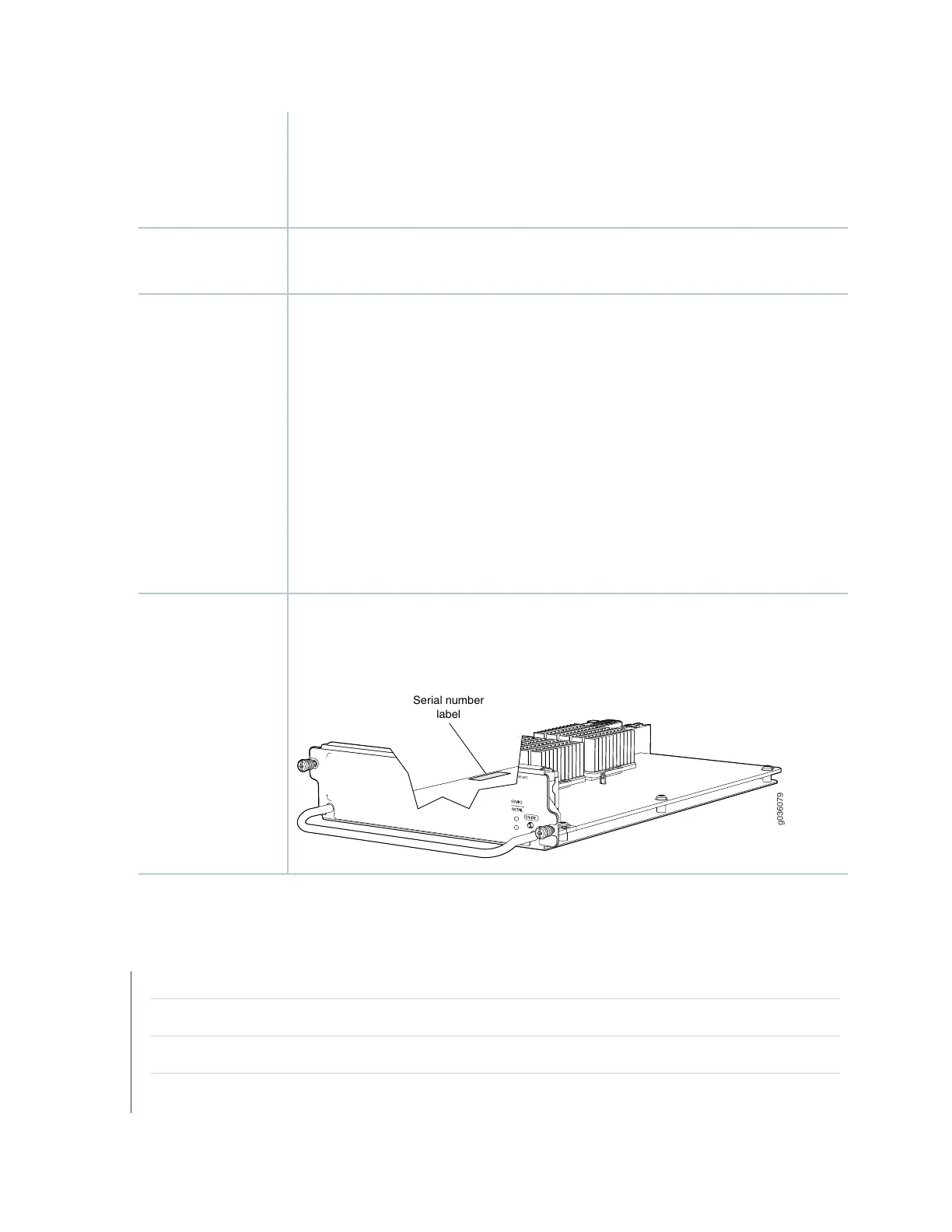

The serial number label for the NPC is located as shown in Figure 17 on page 35).
Figure 17: NPC Serial Number Label
g036079
S
R
X3K-NPC
Serial number
label
Serial Number
Location
RELATED DOCUMENTATION
SRX1400, SRX3400, and SRX3600 Services Gateway Module Overview | 27
Modules Supported on SRX1400, SRX3400, and SRX3600 Services Gateways | 28
Eligible Slots for SRX1400, SRX3400, and SRX3600 Services Gateway Modules | 30
Installing Common Form Factor Modules In SRX1400, SRX3400, and SRX3600 Services Gateways
35
