SERVICE LED, one bicolor
•
Off–The IOC is administratively disabled, butmapped to the NPC.
•
Green–The IOC is mapped to the NPC and is available to carry Ethernet traffic.
•
Amber–The IOC is not mapped to the NPC and is not available to carry Ethernet traffic.
OK/FAIL LED, one bicolor
•
Off–One or more of the following conditions apply:
•
The services gateway is not powered on.
•
The services gateway is still in the process of either booting or shutting down.
•
The services gateway is not configured for chassis clustering.
•
Steady Green–The services gateway is configured for chassis clustering, and the SCM
is operating normally.
•
Blinking Green–The SCM is initializing (preparing to come online) or is preparing to go
offline.
•
Red–The SCM has failed and is not operating normally.
LEDs
The serial number label for all IOC types is located as shown in Figure 19 on page 37).

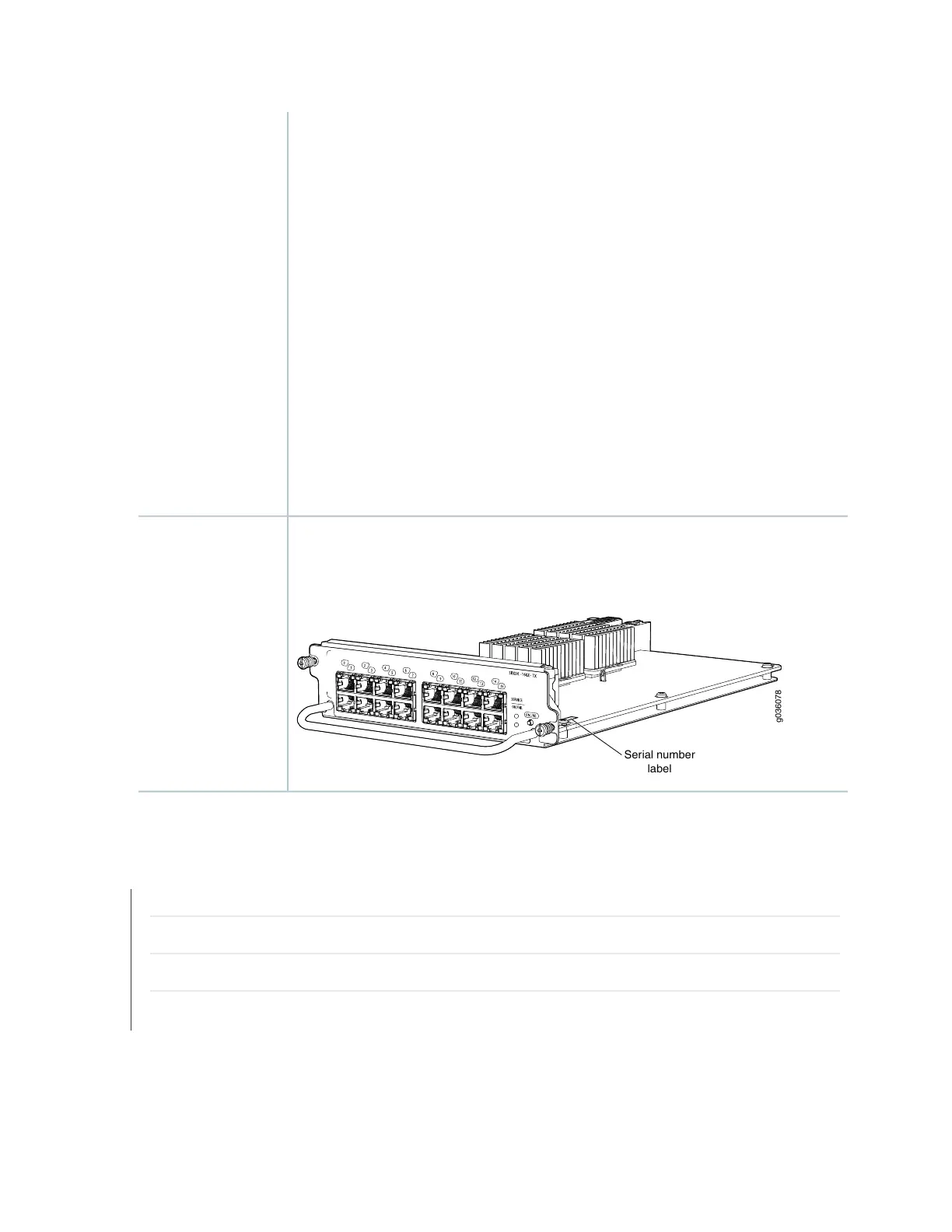

Figure 19: IOC Serial Number Label (SRX3K-16GE-TX Shown, Other IOCs Similar)
g036078
Serial number
label
Serial Number
Location
RELATED DOCUMENTATION
SRX1400, SRX3400, and SRX3600 Services Gateway Module Overview | 27
Modules Supported on SRX1400, SRX3400, and SRX3600 Services Gateways | 28
Eligible Slots for SRX1400, SRX3400, and SRX3600 Services Gateway Modules | 30
Installing Common Form Factor Modules In SRX1400, SRX3400, and SRX3600 Services Gateways
37
