2. Connect the other end of the Ethernet cable to the management device.

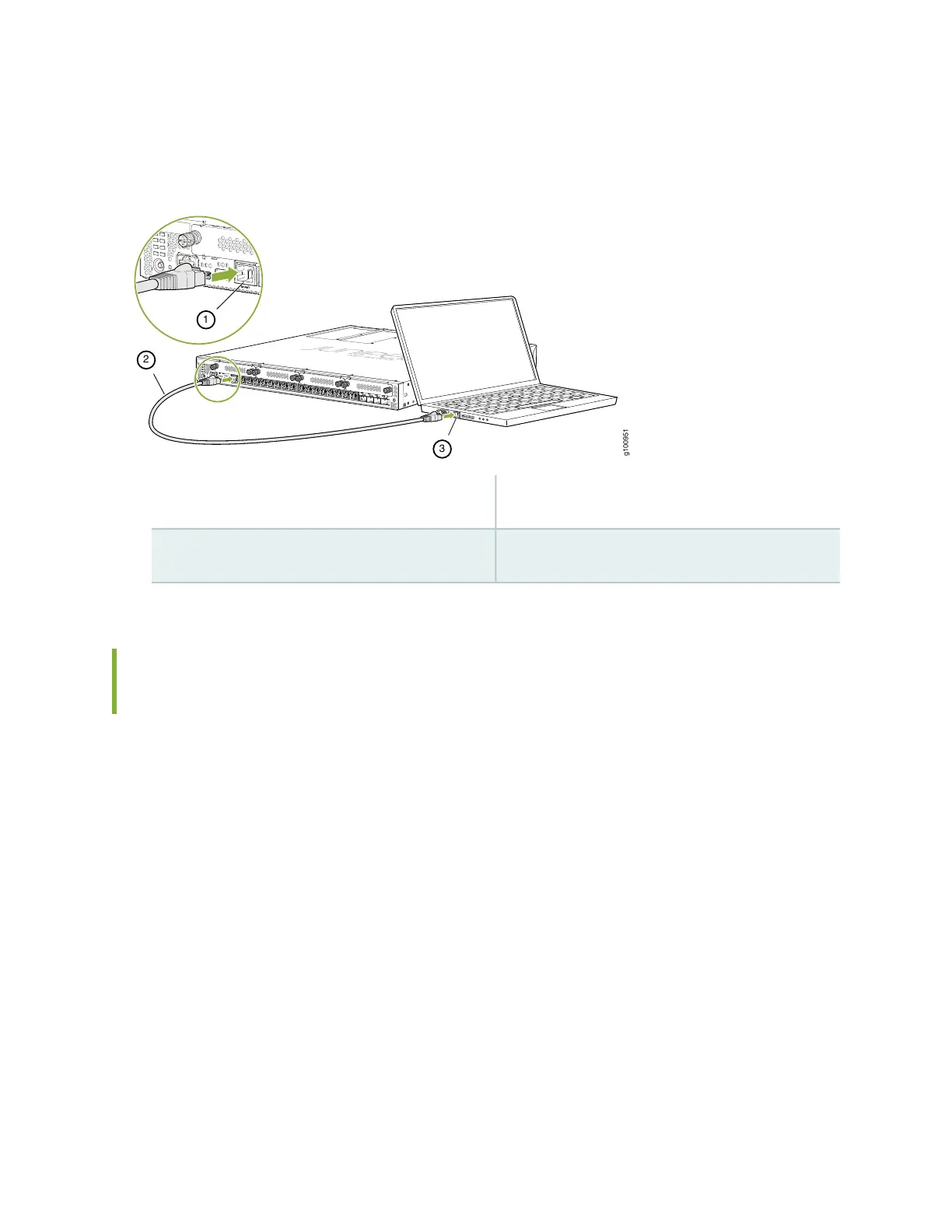

Figure 16: Connecting the SRX380 to a Management Device
g100951
2
3
1
3—1— RJ-45 cable connecting to the Ethernet port on the
laptop
Management port
2—RJ-45 cable connecting to the MGMT port on
SRX380
Connecting an SRX380 to a Management Console by Using an RJ-45
Connector
The SRX380 has an RJ-45 console port. Use the console port to connect the device to a management
console or to a console server.
If your laptop or PC does not have a DB-9 male connector pin and you want to connect your laptop or PC
directly to the SRX380, use a combination of the RJ-45 cable and RJ-45 to DB-9 adapter supplied with
the device and a USB to DB-9 male adapter. You must provide the USB to DB-9 male adapter.
To connect the SRX380 to a management console:
1. Connect one end of the Ethernet cable to the console port (labeled CON).
2. Connect the other end of the Ethernet cable into the console server or management console.
