Product Description Technical Manual
20 04045376 - 05/2016 Kaba access manager 92 30
3.4.7 Ambient conditions
• Ingress protection according to IEC 60529: IP40
• Relative humidity: 5% to 85%, non-condensing
• Ambient temperature:
– 0 °C – +50 °C (operation)
– -20 °C – +65 °C (storage)
3.4.8 Dimensions/Weight
• Length: 208 mm
• Width: 208 mm
• Depth: 48 mm
• Weight: approx. 0.6 kg

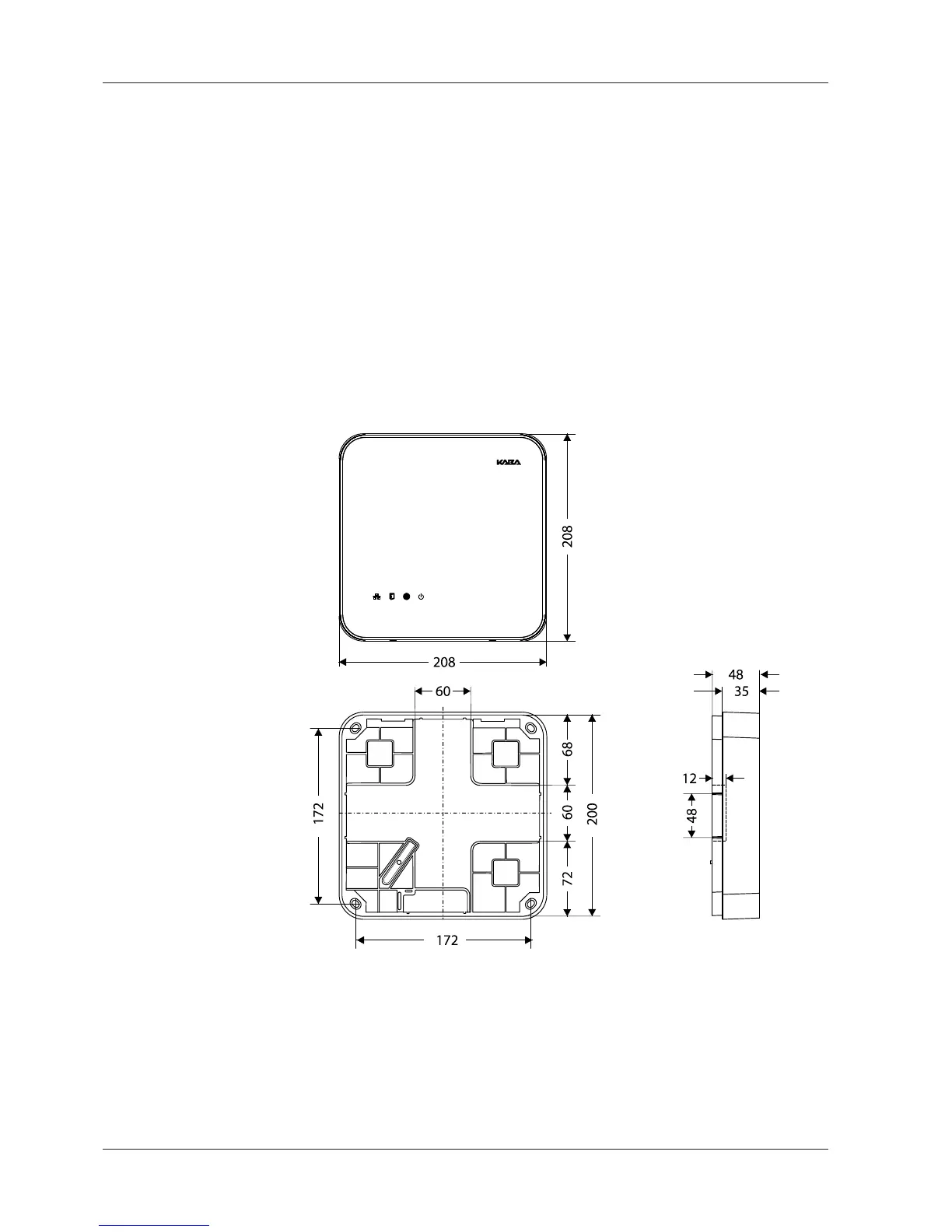

3.4.9 Dimensional drawings
Dimensions in mm
