Kaba access manager 92 30 User Manual

Technical Manual Installation
3904045376 - 05/2016Kaba access manager 92 30

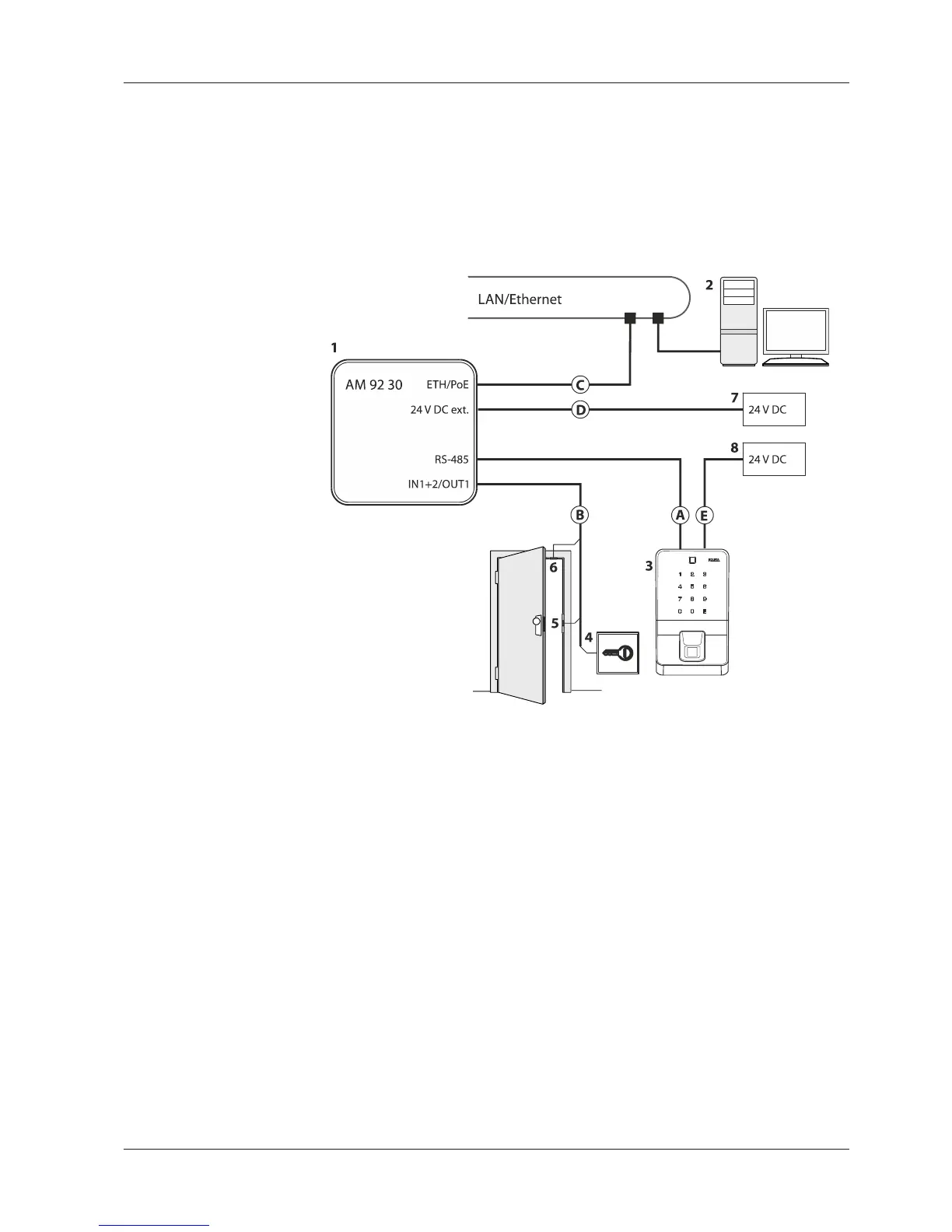

5.2.2 Access control with reader via RS-485
Example:
• Access control with biometric reader via RS-485
• External power supply of the biometric reader
• External power supply of the access manager
1 Kaba access manager 92 30
2 Host computer
3 Biometric reader
4 Door opener key
5 Door opener
6 Door frame contact
7 External 24 V DC power supply for the access manager
8 External 24 V DC power supply for the biometric reader
Installation lines
A Data line to the reader (RS-485)
B Line to the door contact, the door opener key, and the door opener
C Ethernet network cable
D Power supply line Access manager
E Power supply line Biometric reader
