5.7.6 Readers via Wiegand
Two readers can be connected to the access manager via the Wiegand interface.

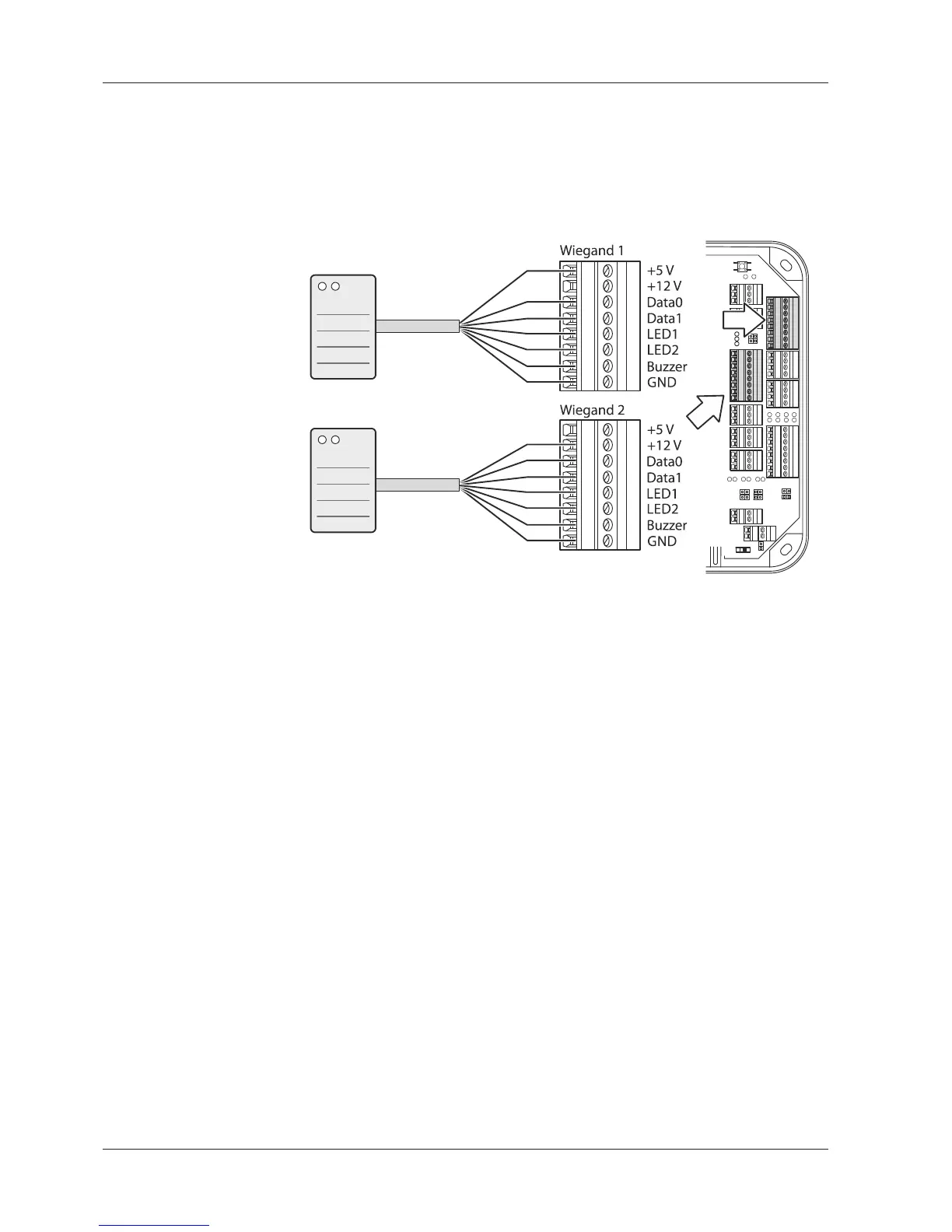

Example: Reader connection via Wiegand with 5 V and 12 V power supply from the
access manager.
