Kaba access manager 92 30 - Page 66

Installation Technical Manual
66 04045376 - 05/2016 Kaba access manager 92 30

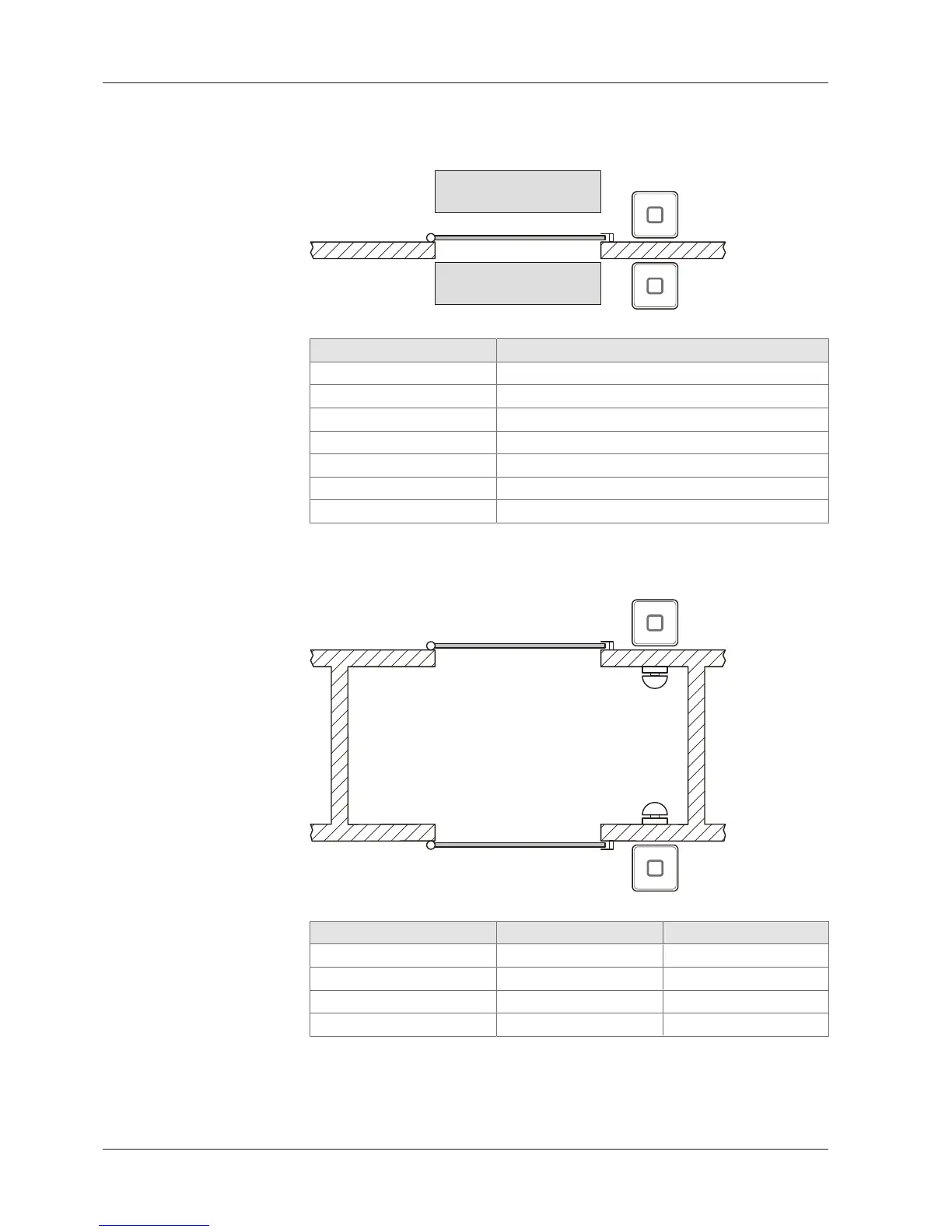

5.7.10.4 Configuration 3: Door with 2 subterminals and contact mat, barrier, etc.
A
B
Access 1
Door frame contact
IN1
Barrier
IN2
Bolt contact
IN3
Door opener relay
BO1
Alarm relay
BO2
GID/DID Subt. A
00/01
GID/DID Subt. B
00/02
5.7.10.5 Configuration 4: Sally port with 2 subterminals and 2 door opener keys
A
B
Access 1 A 1 B
Door frame contact
IN1 IN3
Door opener key
IN2 IN4
Door opener relay
BO1 BO2
GID/DID
00/01 00/02
