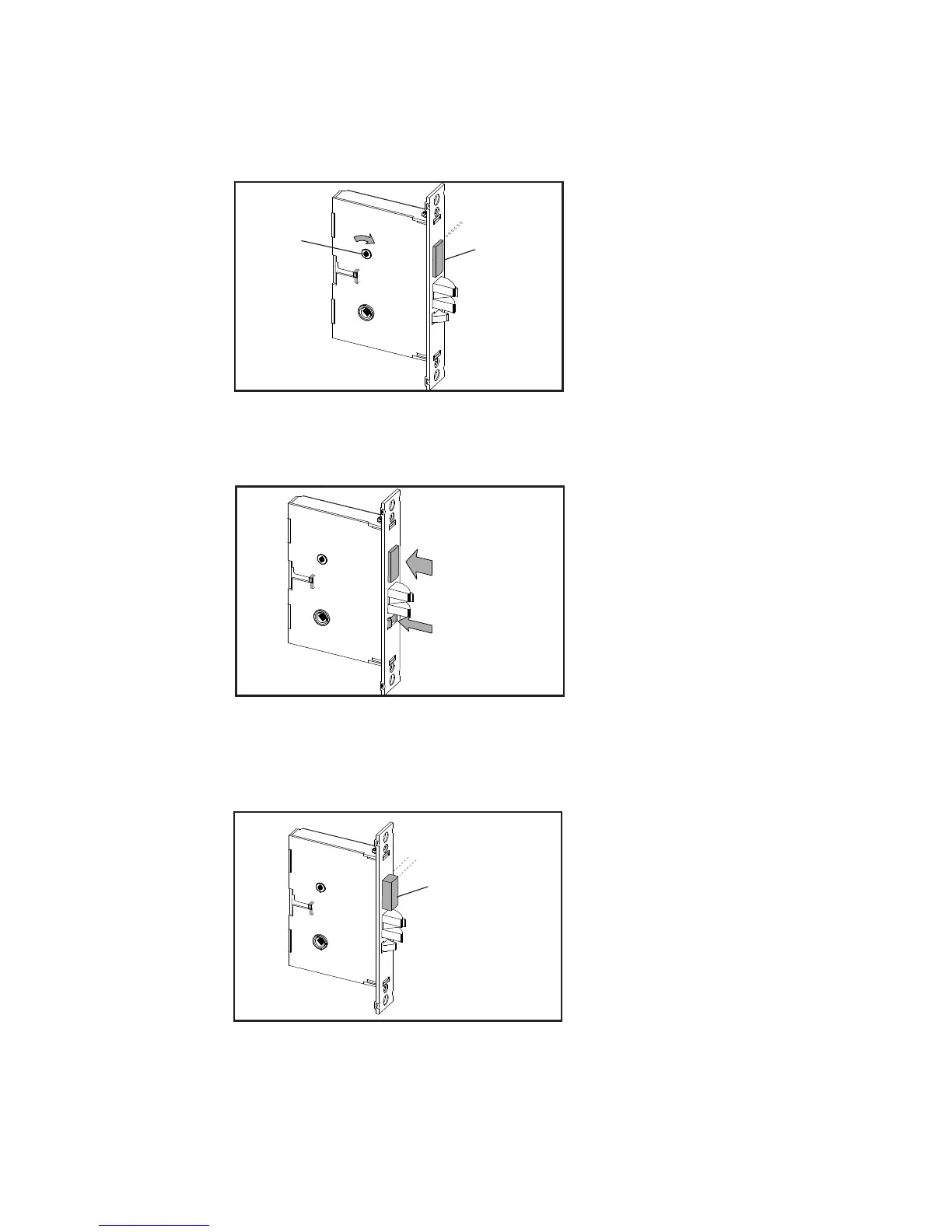

For Autodeadbolt ASM, rotate hub (H) until the deadbolt (D) is fully
retracted. The deadbolt will extend approx. 1/16” from the mortise case.
Hold deadbolt (D) gently. Press and release the auxiliary latch (X). You should
feel the deadbolt trigger and begin to extend under the force of the spring.
Release the deadbolt (D) gently. It should extend to 5/16” approx. and stop. If
the deadbolt extends past this point, gently press it in until it locks at 5/16”
throw, or start step b again.
D (hold gently)
X (press and release)
D
5/16”
D
1/16”
H
