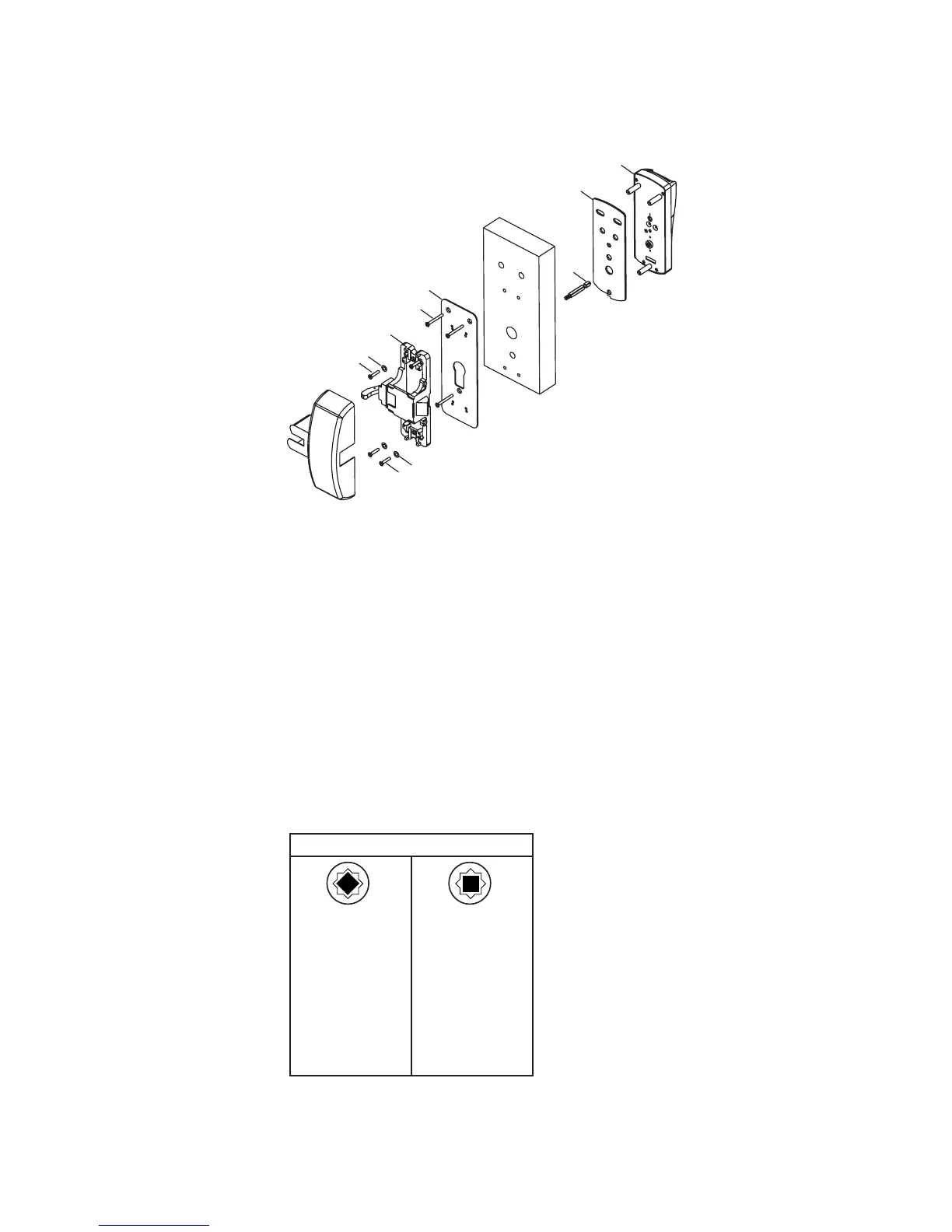

4. Install Lock & Exit Device on the door
a. Insert the slotted end of the spindle (D) into the outside housing until
it locks, at the correct position for the exit device (see Fig.4). The
spindle can be removed by pulling on it, and re-inserted if oriented
incorrectly.
b. Place the outside housing (B) on the door. (with gasket (C) if required)
c. Attach Adaptor Plate (E) to the lock (B) using Flat Head screws
(F)(12-24nc).
d. Attach the Exit Device chassis (G) to the Adaptor Plate (E) using 2
screws or 4 screws (H) depending on the Exit Device. For Detex only,
use 2 or 4 Flat washers (Q).
e. Make sure the lock and the Exit Device are well aligned and then
tighten screws.
f. Follow the manufacturer’s instructions to complete the installation of
the exit device and the appropriate strike.
** Detex 10/20/V40 Series are Panic hardware only.(Not fire rated)
Detex F10/F20 Series are Fire rated hardware
Spindle Position
Von Duprin 98/99
Von Duprin 9847/9947
Von Duprin 9827/9927
Precision 21/FL21
Precision 22/FL22
Arrow S3888
**Detex 10/F10
**Detex 20/F20
**Detex V40
Yale 7100-36
Yale 7160
Yale 7170
Dorma F9300
Von Duprin 9875/9975
Arrow S1908/S3908
Arrow S1708/S3708
Arrow S1808/S3808
Fig. 4
H
Q
D
C
B
G
Q
H
E
F
