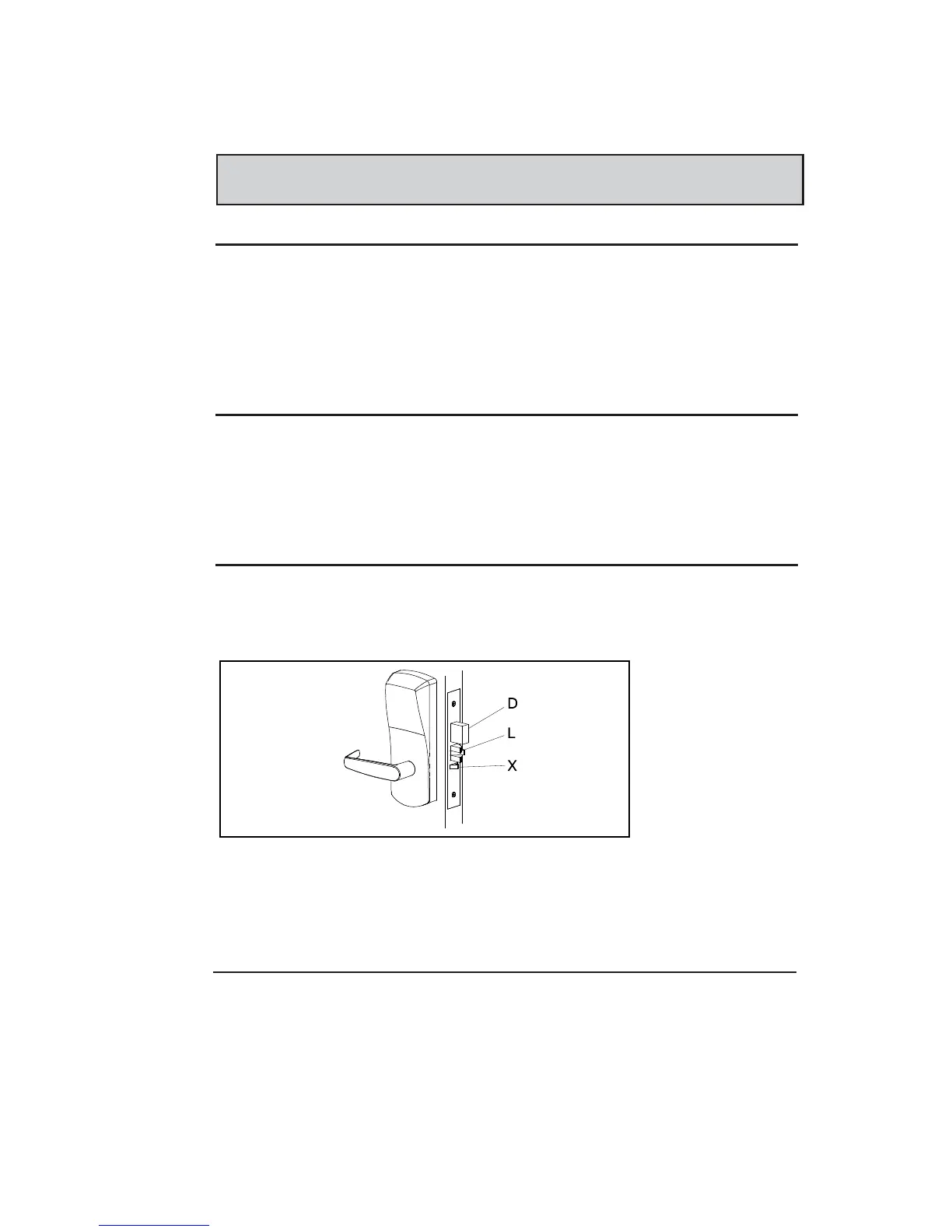

B-9.Testing (E-2400 Series ONLY)
Caution! Perform the following procedures in order, with the door OPEN
unless otherwise indicated.
Inside Lever:
Turn the inside lever downward. The latch bolt retracts fully.
If the lever or the thumbturn feels tight (hard to turn or does not return easily
to its horizontal position), check the alignment of the lock assemblies. Loosen
the mounting screws and shift the inside trim assembly slightly until the fric-
tion is eliminated. If the problem persists check the position of the holes on the
door (compared to the mortise).
Standard Deadbolt:
Turn the thumbturn back and forth. The deadbolt extends and retracts fully
and without undue friction.
Turn the thumbturn to extend the deadbolt again then turn the inside lever.
The deadbolt and the latch bolt retract simultaneously and fully without undue
friction.
Optional Autodeadbolt:
Press and hold the auxiliary bolt (X). The deadbolt (D) will extend. Keep the
auxiliary bolt depressed, and turn the inside lever all the way down and hold it
there. The latch (L) and deadbolt retract together.
Release the auxiliary bolt (X), then let the inside lever return to a horizontal
position. The deadbolt will remain retracted while the latch will extend.
Outside Lever:
Turn the outside lever downward. The latch bolt does not retract. If the latch
bolt retracts verify that the batteries are properly installed. If the lever feels
tight (hard to turn or does not return easily to its horizontal position), ensure
the square spindle is not too long or in proper orientation.
