42
J. CHANGING BEST-TYPE CORE
J-1 Use the control key to remove the removable core from the lever
J-2 Remove the adapter from the removable core and reassemble it on the
new removable core.
Note: It is important that the new removable core has the same number of
pins (6 or 7) as the dismounted one. If not, change the adapter to fit the core.
J-3 Check to make sure that the override shaft did not move and that the 2 small
indents on override shaft are still vertical (see below). Then, using the control
key on the new core, assemble the new removable core on the lever.
J-4 Test the locks using Steps G and H.

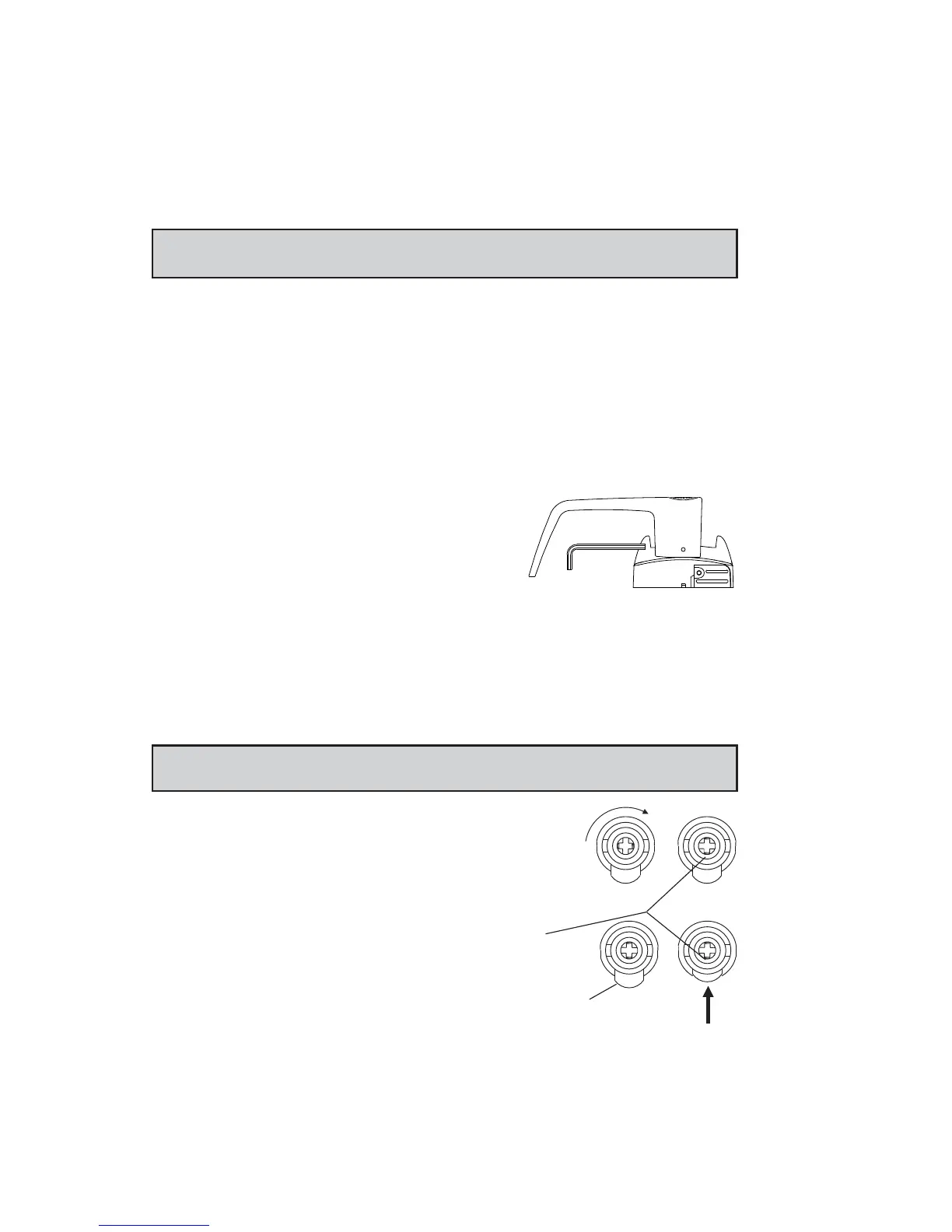

K. REMOVING AND REASSEMBLING
THE OUTSIDE LEVER
K-1 Loosen the set screw to free the lever
(just 1/4 to 1/2 turn).
K-2 Insert the change key in the cylinder.
K-3 Turn the key clockwise until it stops (for
both right and left-hand locks).
K-4 Release the key.
K-5 Use a small flat screw driver to push in the lever catch through the small
hole underneath the outside lever.
K-6 Pull the outside lever off of the lock housing. Be careful not to lose the
adapter.
Important: Assemble the lever, cylinder and lock components before affixing
the entire unit to the door.
K-7 Ensure that the two small indents on the cross are
now vertically in line. (The cylinder or override shaft
tool can be used to turn override shaft.)
K-8 Push in the lever catch (f) firmly.
2 indents
vertical
f
