Kaba E-PLEX 2000 Series User Manual

8

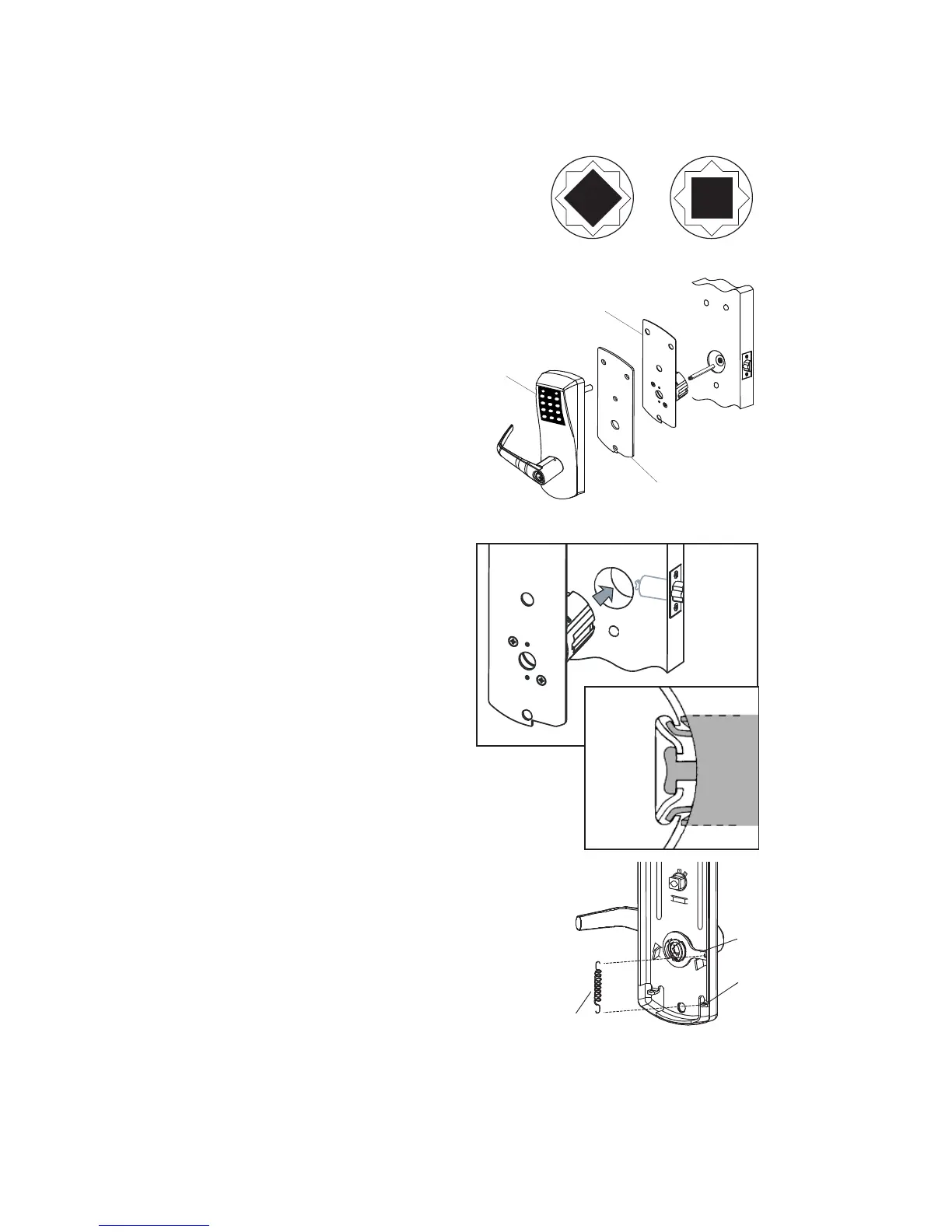

A-4. INSTALLING LOCK HOUSINGS
1. Insert the slotted end of the square spindle
into the outside lever hub until it locks, at an
angle of 45º. (The spindle can be removed
by pulling on it, if oriented incorrectly.)
2. Assemble gasket onto the outside
housing (a). Assemble cylindrical plate
assembly onto the outside lock hous-
ing. (Not required for PowerStar ver-
sions)
3. Place the outside housing (a) and
cylindrical plate assembly on the
door so that it engages the latch as
shown.
4.
On the inside trim assembly, turn the
lever to the correct horizontal rest
position for the handing of the door. Install the
tension spring (l) between
the stop plate (h) and the post (p).
Square Spindle Position
correct incorrect
a
Cylindrical Plate
Assembly
(outside)
cylindrical
unit
latch
h
p
l
Gasket
(not for PowerStar versions
