Kaba E-PLEX 2000 Series

4

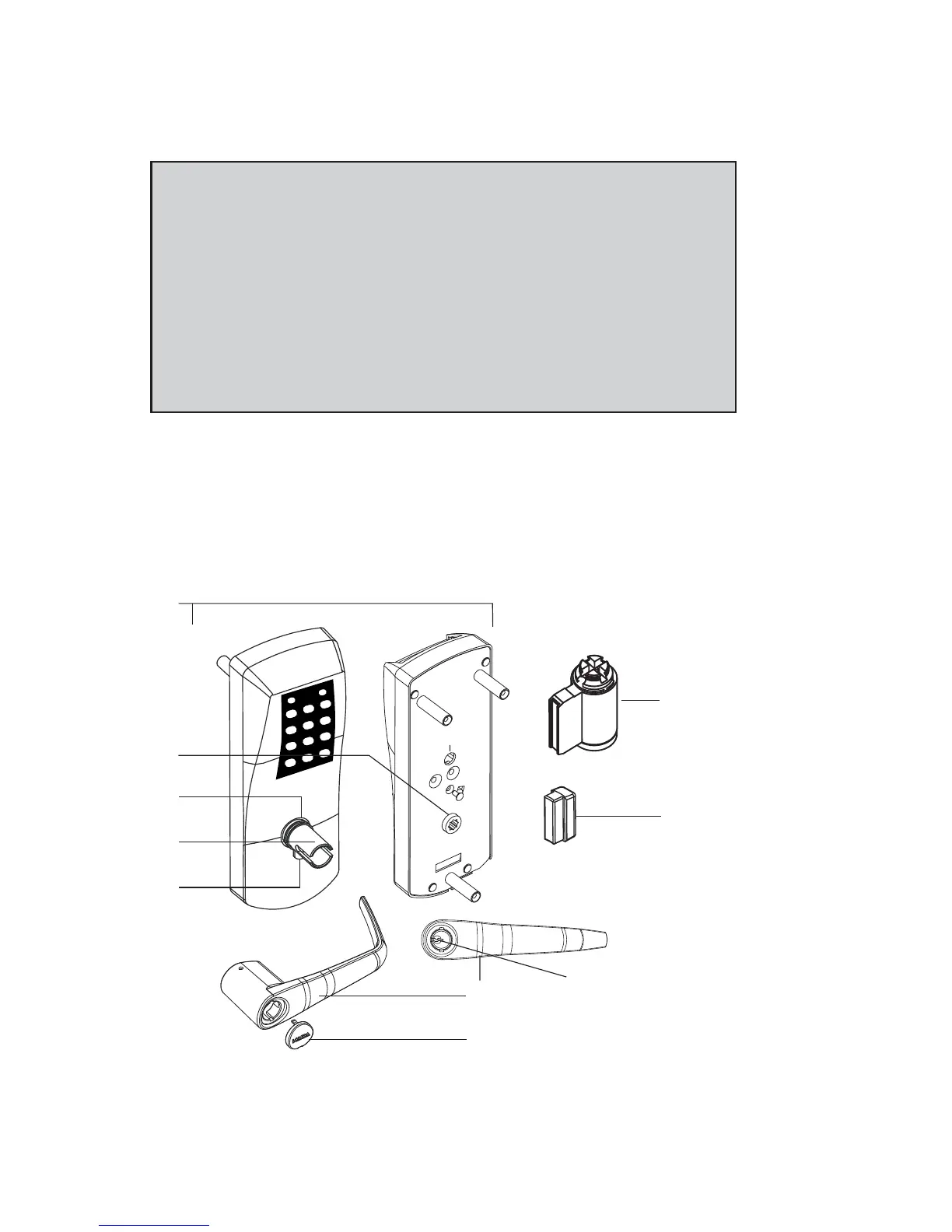

DIAGRAM OF LOCK:
BackFront
(A)
(D)
(B)
(E)
(F)
(G)
(H)
(I)
(J)
(C)
TOOLS REQUIRED:
TOOLS REQUIRED:
• Safety glasses
•
1
⁄2" (13 mm) chisel
•
1
⁄8" (3 mm) drill bit
•
1
⁄2" (13 mm) drill bit
•
7
⁄8" (22 mm) drill bit or hole saw
• 1" (25 mm) drill bit or hole saw
• 2
1
⁄8" (54 mm) hole saw
• Drill
• Awl or center punch
• Rubber mallet
• Small flat screwdriver (less than
1
⁄8")
• Phillips screwdriver (#2)
• Fine steel file
• Router
• Adjustable square
• Tape measure
• Pencil
• Tape
• Cleaning supplies (drop cloth,
vacuum)
• Spanner screwdriver #6
(A) Lock housing
(B) Inside drive hub
(C) Nylon washer
(D) Drive tube
(E) Lever catch
(F) Countersink
(G) Outside Lever
(H) Cap
(if equipped)
(I) Cylinder (if equipped)
(J) Cylinder plug (if equipped)
