C-3. INSTALL THE LOCK AND EXIT DEVICE
1. Install the Mortise (if applicable)
For mortise exit devices, install the mortise according to the
manufacturer’s instructions
2. Install the Outside Lever

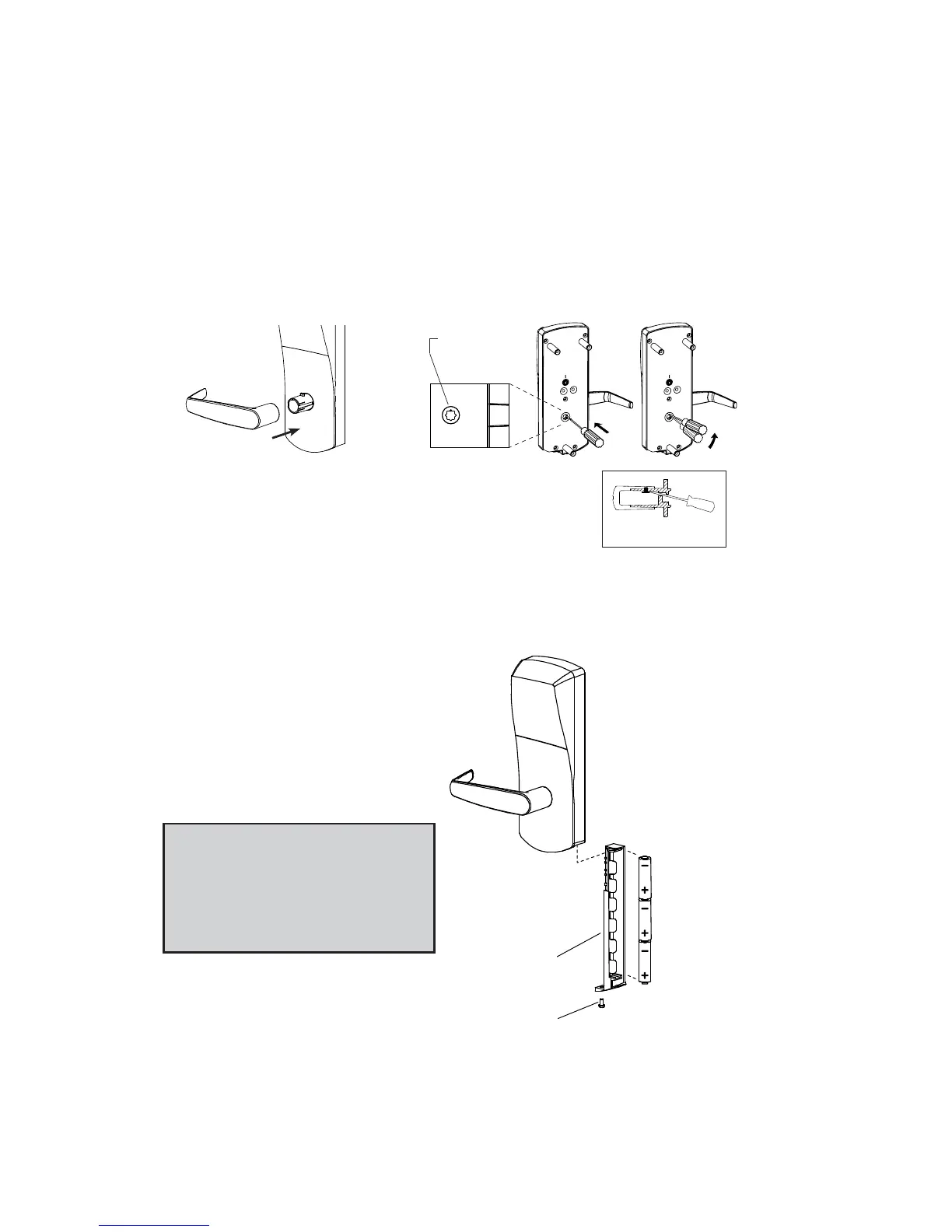

Assemble the lever on the outside housing, in the horizontal rest
position appropriate to the handing of the door as shown. Simply push
the lever onto the tube until it clicks in place. If more force is
required to engage the handle, use a rubber mallet. Test the attach-
ment of the handle by pulling smartly on it.
The lever is field reversible. If the handing is
incorrect, insert a small pick or flat screwdriver
in the hole in the hub as shown. Gently pry
back the spring clip inside the hub, and remove
the handle.
A
B
Access Hole
cutaway view
A. Assemble the lever on the outside housing,
in the horizontal rest position appropriate to
the handing of the door as shown. Simply
push the lever onto the tube until it clicks in
place. If more force is required to engage the
handle, use a rubber mallet. Test the attach-
ment of the handle by pulling smartly on it.
B. The lever is field reversible. If
the handing is incorrect, insert a
small pick or flat screwdriver in
the hole in the hub as shown.
Gently pry back the spring clip
inside the hub, and remove the
handle.
3. Install the Batteries
(Not for PowerStar versions)
Three AA batteries should already
be installed in the battery holder
(J). Insert the battery holder into
the outside housing and secure it
using the 6-32 X 3/8” spanner
drive screw (K).
Note: If the lock makes a contin-
uous buzzing noise or the red
LED lights continuously, reset
the electronics by removing the
battery holder for ten seconds,
then reinsert it.
To Next Page
