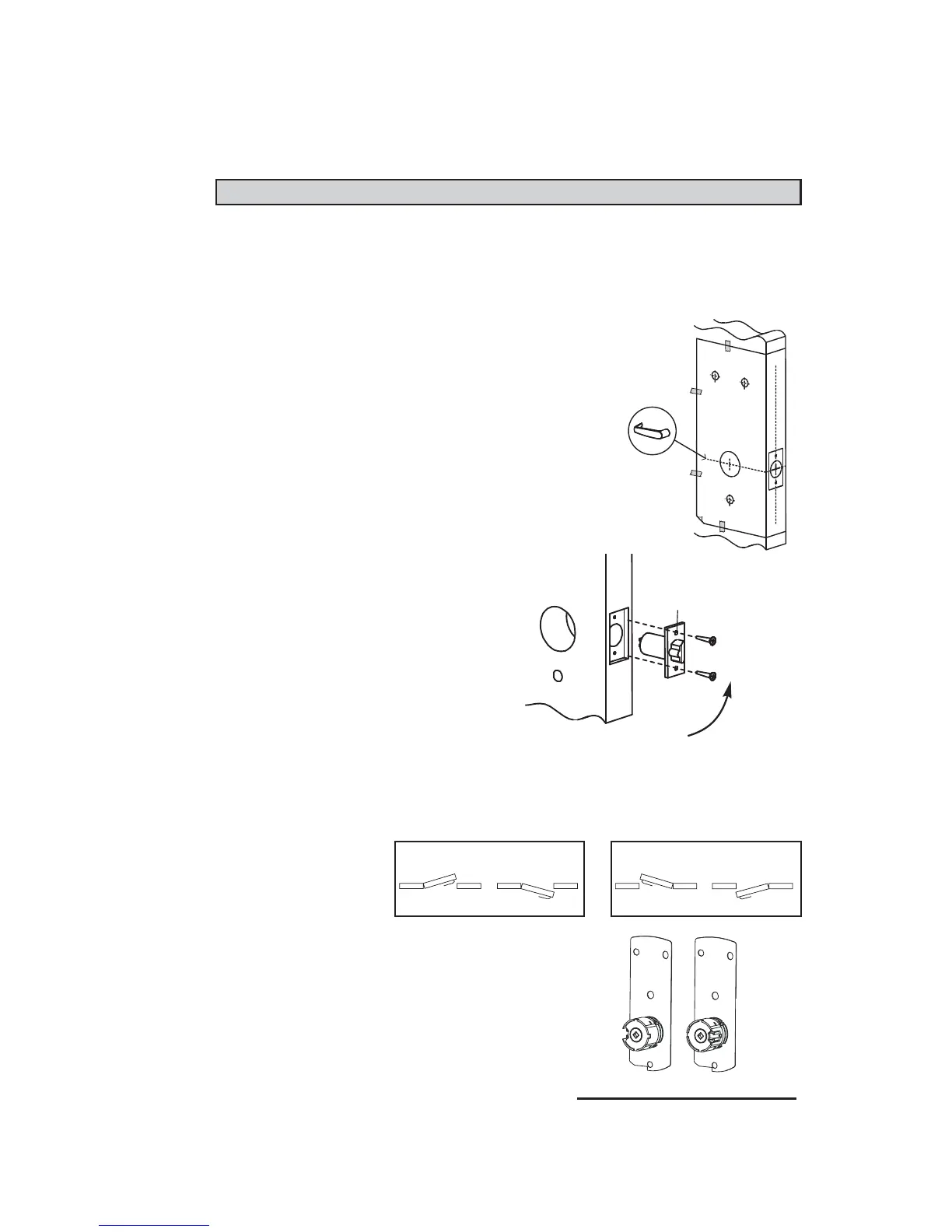

A-1. Door Preparation
Note: Drill from both sides of the door to prevent unsightly damage.
1. Determine which template fits your E-Plex 2xxx installation (either the
2
3
⁄8" [60 mm] Backset or the 2
3
⁄4" [70 mm] Backset).
2. Place appropriate paper template (supplied) onto door and mark for
holes. Drill the three
1
⁄2" (13 mm) holes first. Next drill the 2
1
⁄8" (54 mm)
cross bore hole. Drill the 1" (25 mm) hole last.
3. Mortise door edge for latch unit faceplate
3
⁄16" (5 mm)
deep to dimensions shown. Insert latch unit into the
1" (25 mm) hole, making certain that the latch bolt
bevel faces direction of closing door.
4. Secure the latch to the door using two 1" (25 mm)
Phillips Mounting screws supplied. Latch unit
faceplate must be flush with door (for doors with
1" diameter hole, use sleeve on latch).
A-2. LOCK HANDING
The E-Plex 2xxx is a non-handed lock
that is preassembled for left-hand
door installations.
1. Determine the hand of your door. For Left Hand doors, proceed to section C.
For Right Hand doors, follow steps below.
2. Remove the two connecting screws from the
cylindrical drive unit. Rotate cylindrical drive
unit 180º. Reposition spacer(s) as found
before disassembly. Remount drive unit with
the two connecting screws.
D
Closing Direction
Left Hand Left Hand Reverse Bevel
LEFT HAND DOOR
Right Hand Right Hand Reverse Bevel
RIGHT HAND DOOR
LH Assembly RH Assembly
Cylindrical Drive Unit Position
To Next Page
