TECHNICAL DESCRIPTION ULTRAFLOW
®
54 and 34
5512-385 GB/02.2014/Rev. H1
23
7.1 Installation angle for ULTRAFLOW
®

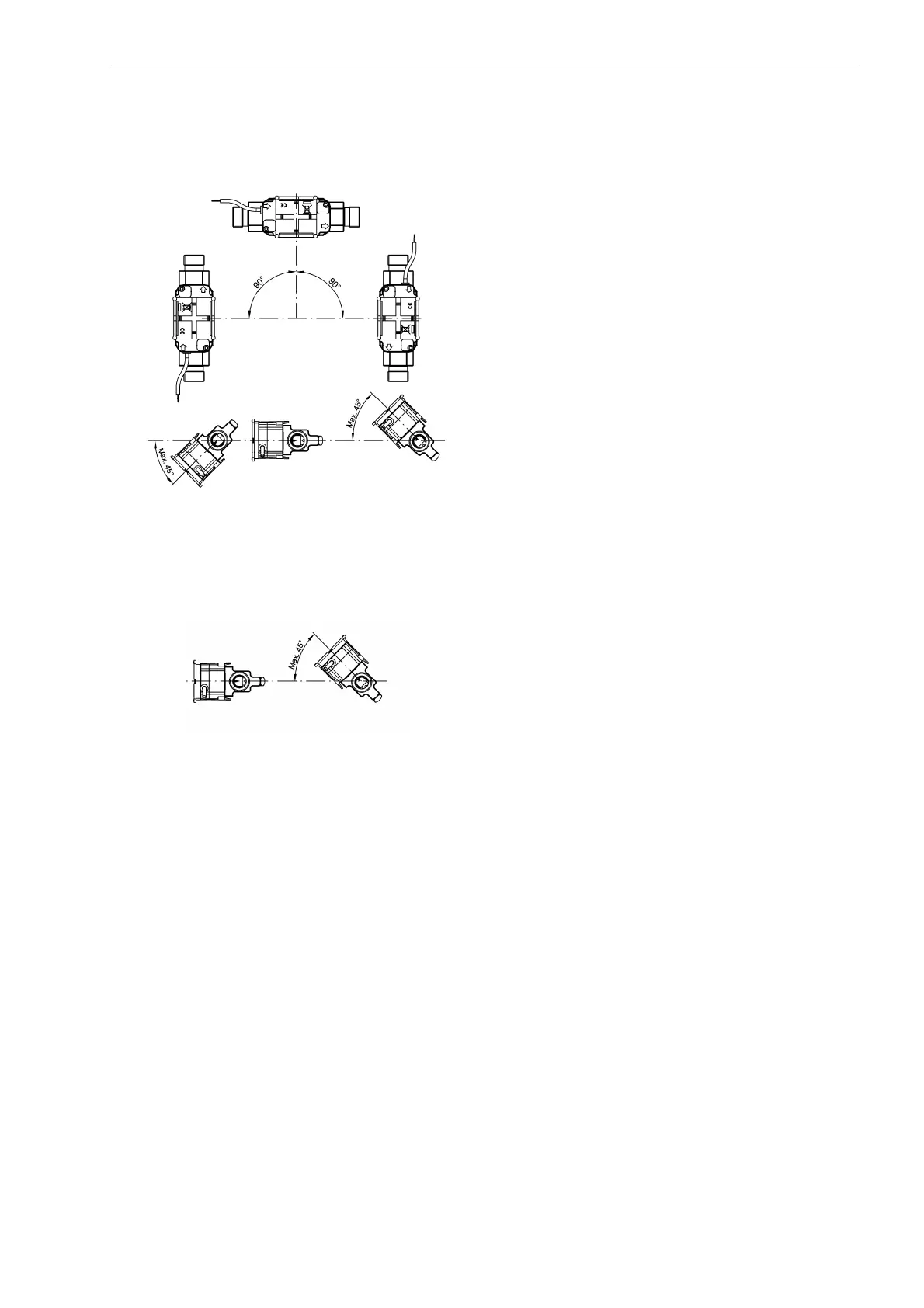

Figure 9
Figure 10
ULTRAFLOW
®
54 and 34 may be installed
horizontally, vertically or at an angle.
Important!
For ULTRAFLOW
®
54 and 34 the electronics
housing must be placed on the side (when
installed horizontally).
ULTRAFLOW
®
54 may be turned up to ±45°
around the pipe axis.
ULTRAFLOW
®
34 may be turned up to +45°
around the pipe axis as shown in Figure 10.
