TECHNICAL DESCRIPTION ULTRAFLOW
®
54 and 34
5512-385 GB/02.2014/Rev. H1
52
9.8 Sealing
ULTRAFLOW
®
is sealed from the factory. Verified sensor will be supplied with laboratory marks and a year mark as
shown in Figure 34.
If the seal of a verified sensor is broken, the sensor must be verified before being installed in a location
demanding verification.

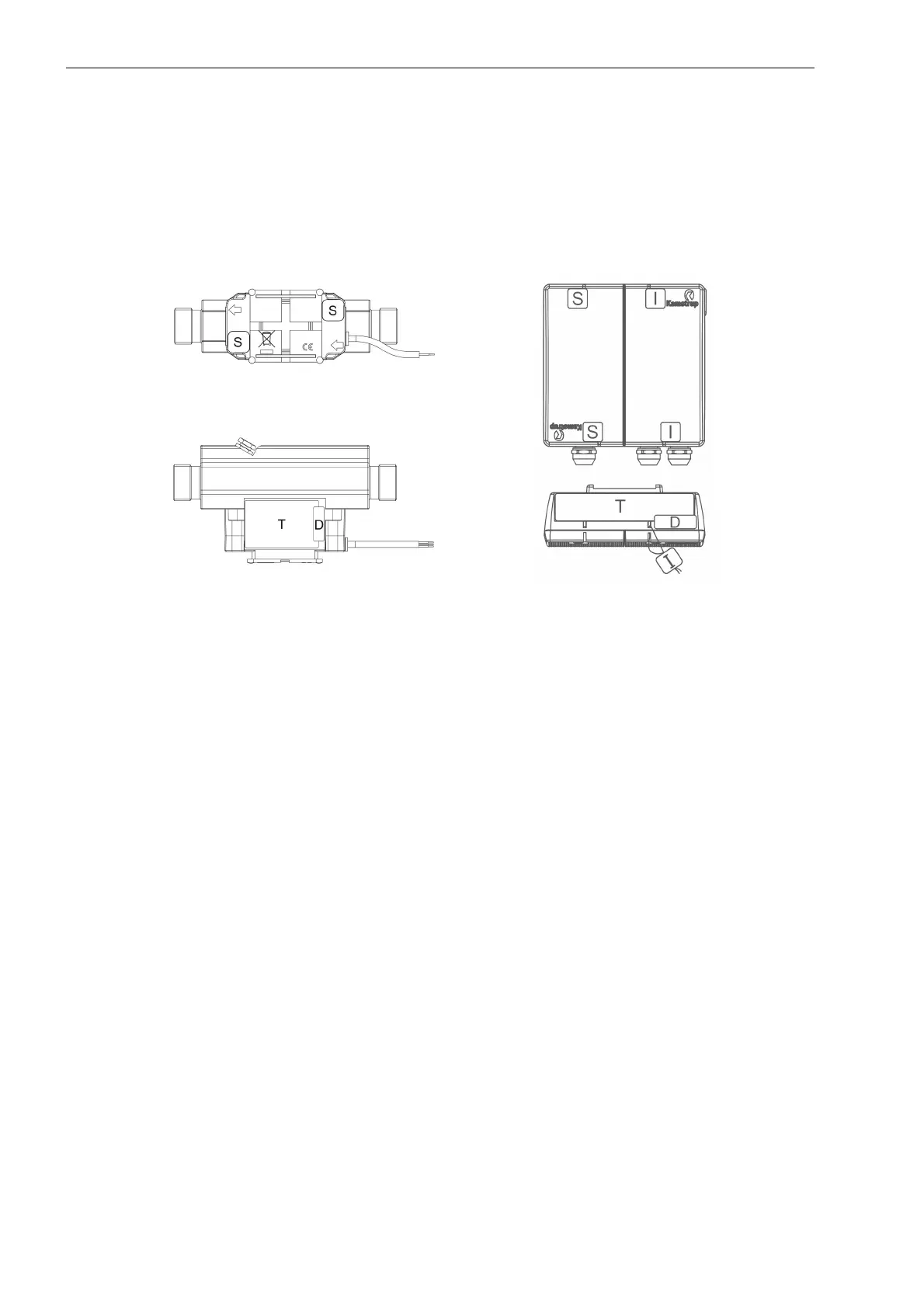

Figure 34. MID sealing of ULTRAFLOW
®
.
On the drawings the sealing is divided into following groups:
D Module D/F label or security seal (depending on type label).
S Security seal. Covering screws.
T Type label (as void label or with security seal D).
I Installation seal (wire and seal or sealing label).
Note: Sealing requirements may vary as a consequence of national regulations.
Figure 35. MID sealing of Pulse Divider.
