KaVo ERGOcom 3 - Setting Video Output 1

ERGOcom 3
5 Operation | 5.3 Operation, with display interface (comfort/excellence)
See also: 5.2.1 Operational mode, Page 27

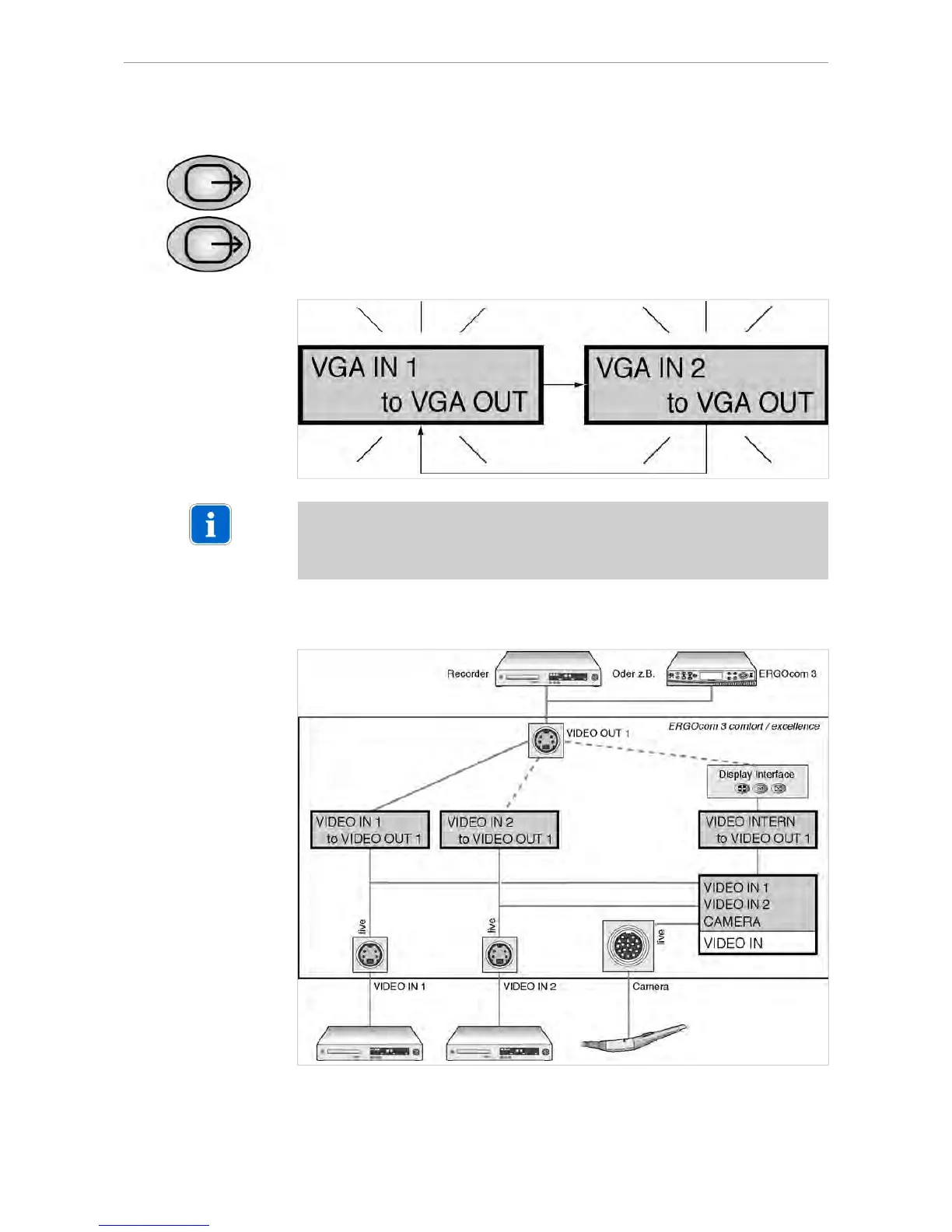

▶ Hold down the VGA OUT button for > 2 seconds.
The status display flashes and setting mode is activated.
▶ Use VGA OUT to select the required VGA input.
Note
If there is no input for 8 seconds, the ERGOcom 3 switches back to operational
mode.
This saves the last setting on the status display.
5.3.3 VIDEO OUT 1 - set image source
38/56
