Keithley 2002 Getting Started Manual

NEXT
PREV
POWER
DISPLAY
2002 MULTIMETER
DCV ACV DCI ACI Ω2 Ω4
FREQ TEMP
REL TRIG
INFO LOCAL EXIT ENTER
RANGE
RANGE
ERR REM TALK LSTN SRQ REAR REL FILT MATH 4W AUTO ARM TRIG SMPL
!
FR
500V
PEAK
FRONT/REAR
2A 250V
AMPS
CAL
STORE RECALL
CHAN SCAN
FILTER MATH
CONFIG MENU
HI
INPUT
LO
SENSE
Ω 4 WIRE
INPUTS
350V
PEAK
1100V
PEAK
AUTO
1
2
3
4
5
Range : 200mVDC
Primary Display Line
Secondary Display Line
6
7
8

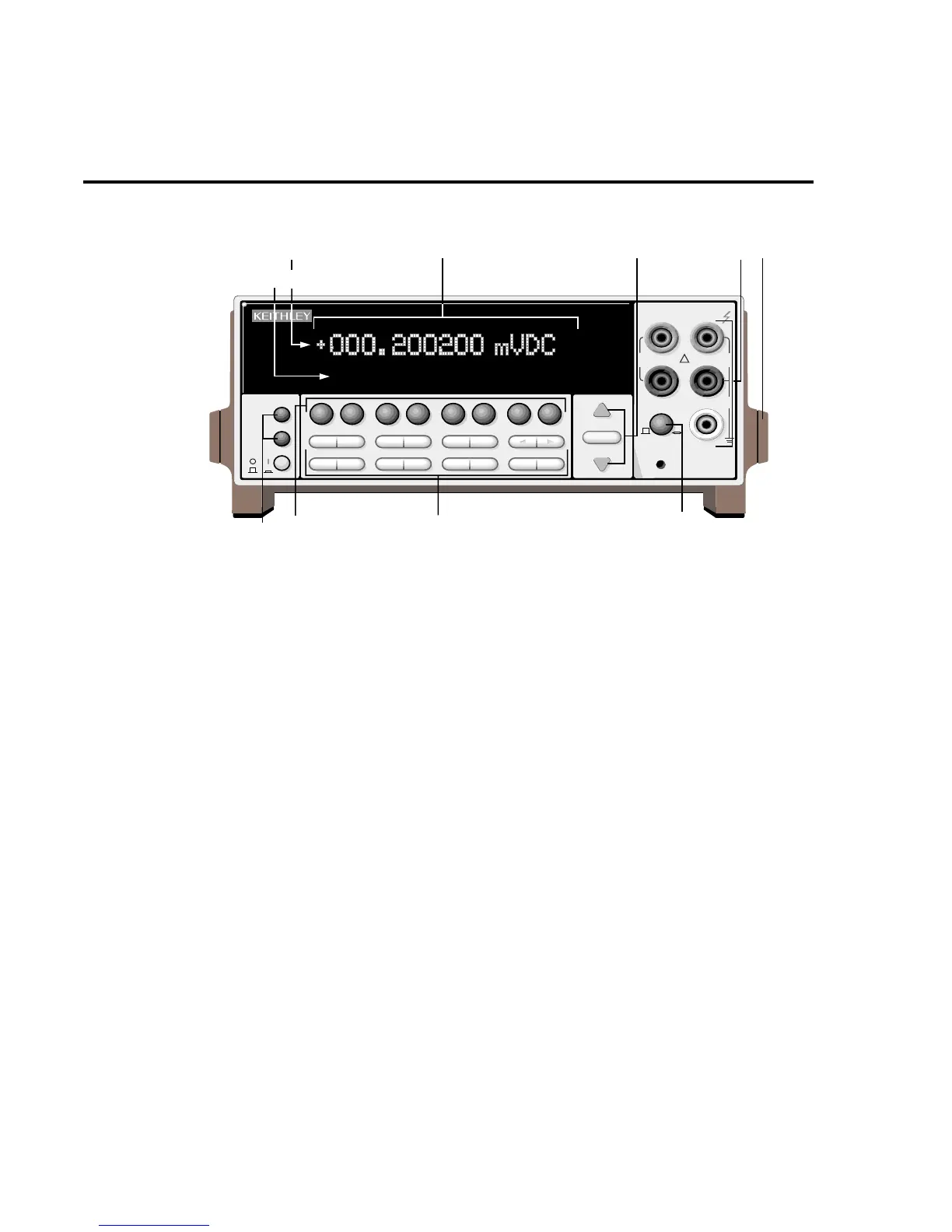

Figure 2
Model 2002
front panel
overview
1 ANNUNCIATORS
ERR Questionable reading
REM In remote
TALK Addressed to talk
LSTN Addressed to listen
SRQ Service Request
REAR Reading acquired from rear inputs
REL Relative reading displayed
FILT Digital filter enabled
MATH Math calculation enabled
4W 4-wire resistance reading displayed
AUTO Autoranging enabled
ARM Trigger armed; not in idle
*(asterisk) Reading being stored
2 FUNCTION KEYS Select measurement function (DC and AC voltage, DC and AC cur-
rent, 2-wire and 4-wire resistance, frequency, and temperature)
3 RANGE KEYS
▲ Moves to higher range; increments digit
▼ Moves to lower range; decrements digit
AUTO Enables/disables autorange
1-4 Front Panel Operation

Keithley 2002 Specifications

General

Resolution	8.5 digits
DC Voltage Accuracy	±0.0006%
Maximum DC Voltage	1000 V
Maximum AC Voltage	750 V
Maximum DC Current	3 A
Maximum AC Current	3 A
Connectivity	GPIB, RS-232
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	10 Ω to 1 GΩ
Model	2002
Category	Multimeter
Interface	GPIB, RS-232
AC Current Accuracy	±0.1%
Frequency Range	0.1Hz to 300kHz
Display	VFD
Type	Digital
Power Supply	100-240V AC, 50/60Hz
Current Range (DC)	100 μA to 3 A
Current Accuracy (DC)	±0.01%
Current Range (AC)	100 μA to 3 A
Current Accuracy (AC)	±0.1%
DC Current Range	100 μA to 3 A
AC Current Range	100 μA to 3 A
