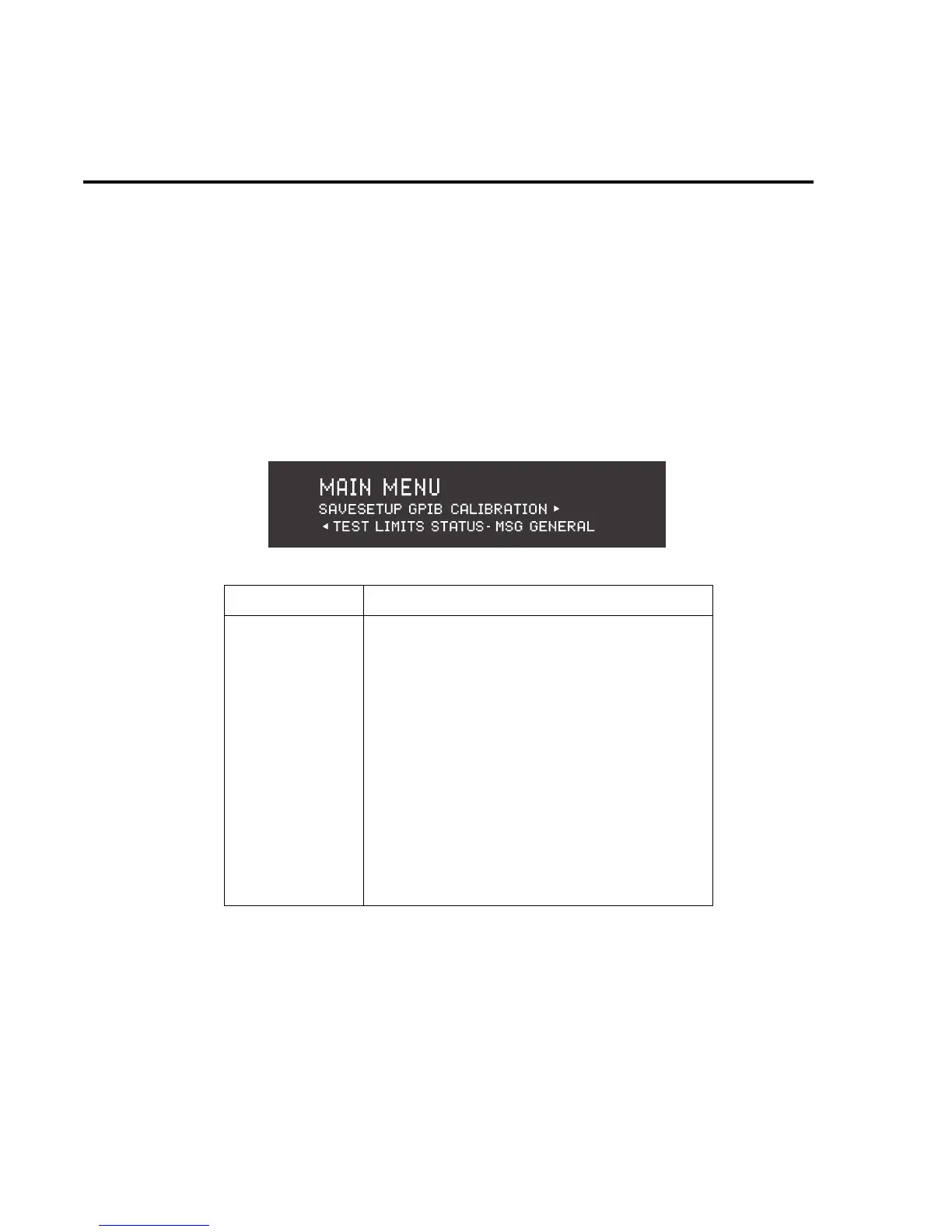

There are two basic menu structures used by the Model 2002: the main menu and the CON-

FIGure menus. The main menu accesses items for which there are no dedicated keys; the CON-

FIGure menus conﬁgure measurement functions and other instrument operations.

Table 2 summarizes main menu selections. Tables 3 and 4 show conﬁguration settings for the

measurement functions and instrument operations.

Table 2

Summary of main menu

Option Description

SAVESETUP

GPIB

CALIBRATION

TEST

LIMITS

STATUS-MSG

GENERAL

Save and restore setups stored in memory, set power-on

defaults, and return unit to default conditions.

Check or change IEEE-488 bus address, conﬁgure unit

for talk-only operation, select data elements, and display

the status byte.

Calibrate the Model 2002 (see Calibration Manual), and

check calibration date.

Perform self-tests (see Repair Manual).

Conﬁgure unit to perform limit tests.

Enable/disable status message mode.

Control output lines and read input lines of digital I/O

port, check serial number of unit and ﬁrmware revision

levels, control line-sync and autozero, conﬁgure times-

tamp, select decimal point character, and set real-time

clock.

2-6 Measurement Options
