Keithley 2002 Getting Started Manual

External scanning
The Model 2002 can be used with a scanner card (such as the Model 7011 Multiplexer Card)
installed in an external scanning mainframe (Model 7001 or 7002 Switch System). With the use
of external triggering, the Model 2002 can measure and store each scanned channel.
NOTE For complete information on scanning (external and internal), refer to Section 2 in
the User’s Manual, and the switch system and scanner card instruction manual.
NOTE The following steps assume that the Model 2002 is set to the BENCH reset default
conditions (see SETTING UP BENCH DEFAULTS) and the Model 7001/2 is set to the
RESET default conditions.
Trigger connections

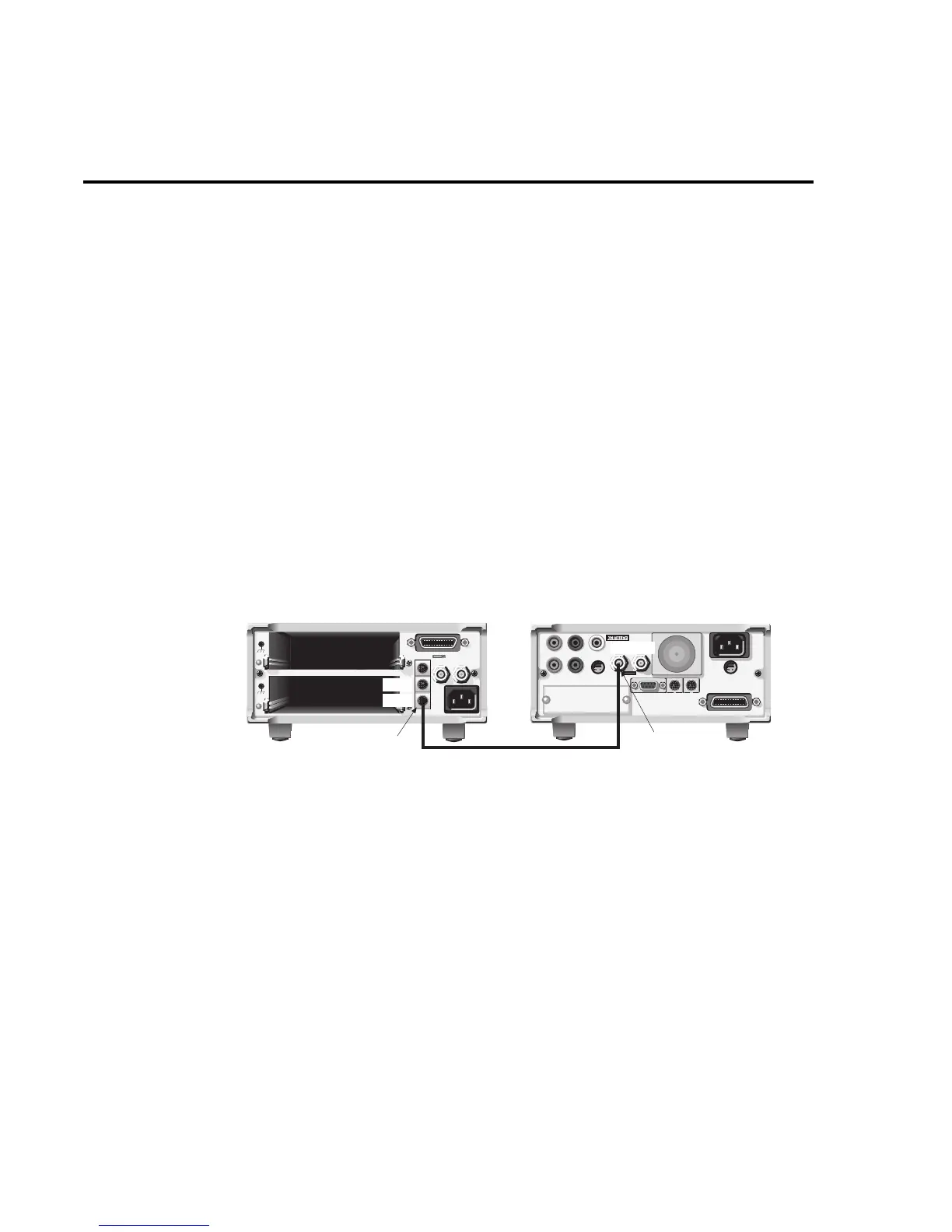

If using Trigger Link, connect the Model 2002 to the switch system as shown in Figure 13. If
using conventional external triggering, connect the instruments as shown in Figure 14. Detailed
information on triggers is provided in Section 2 of the User’s Manual.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN USA
7001 or 7002 Switch System
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
2002 Multimeter
Trigger
Link
Trigger
Link Cable
(8501)
Trigger
Link
OUT
IN
IN OUT
Figure 13
Trigger con-
nections using
trigger link
2-26 Measurement Options
