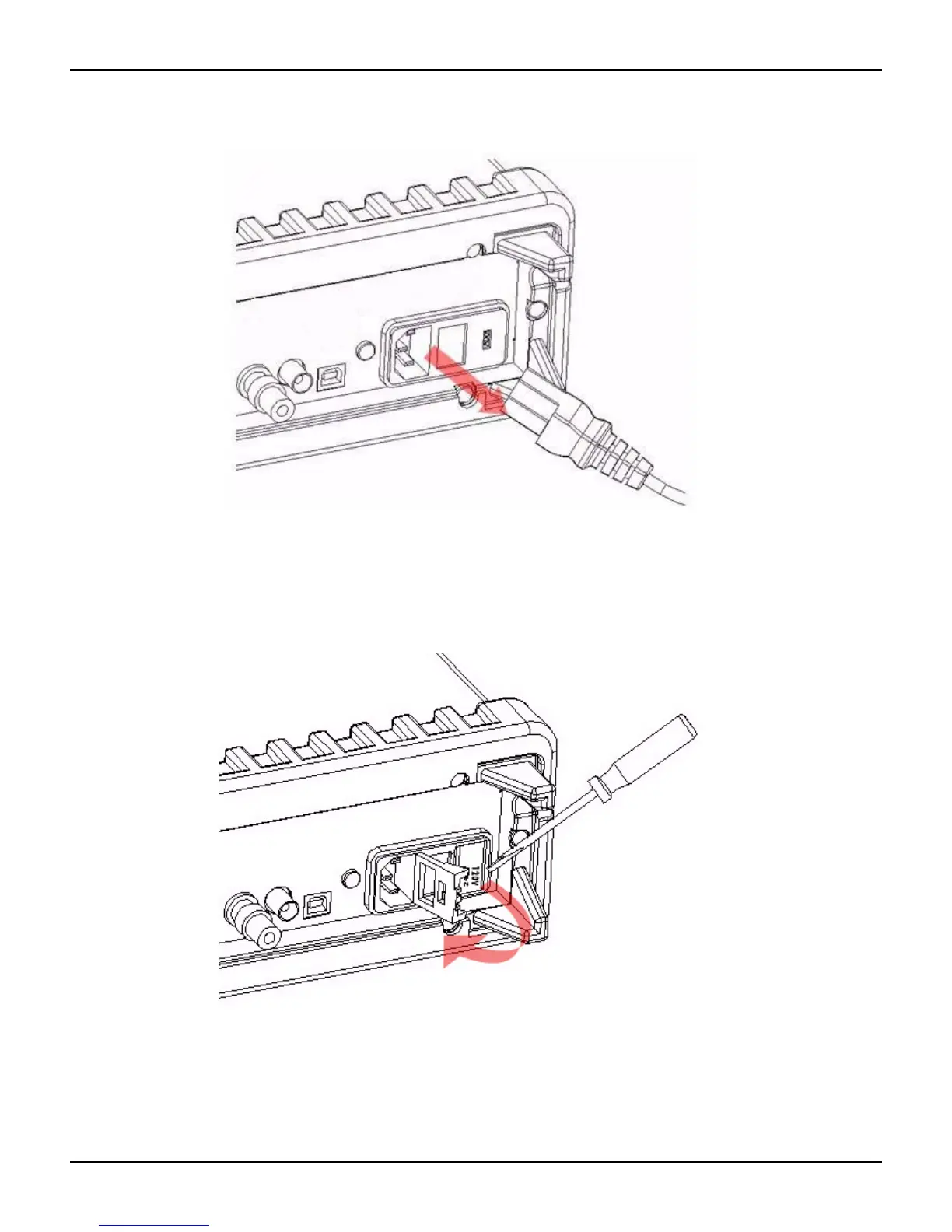

Figure 2-13
Disconnecting the AC power
Step 2: Open the voltage setting selector
Open the voltage setting selector cap as shown in Figure 2-14 (you will need a screwdriver to do
so).
Figure 2-14
Opening the voltage setting selector
Step 3: Remove the red voltage setting selector
Remove the red voltage setting selector from the right middle seam as shown in Figure 2-15 (you
might need a screwdriver to do so).
