Keithley 2100 User Manual

2100-900-01 Rev. D / September 2011 Return to Section Topics 2-11
Model 2100 6 1/2-Digit Resolution Digital Multimeter User’s Manual Section 2: Getting Started

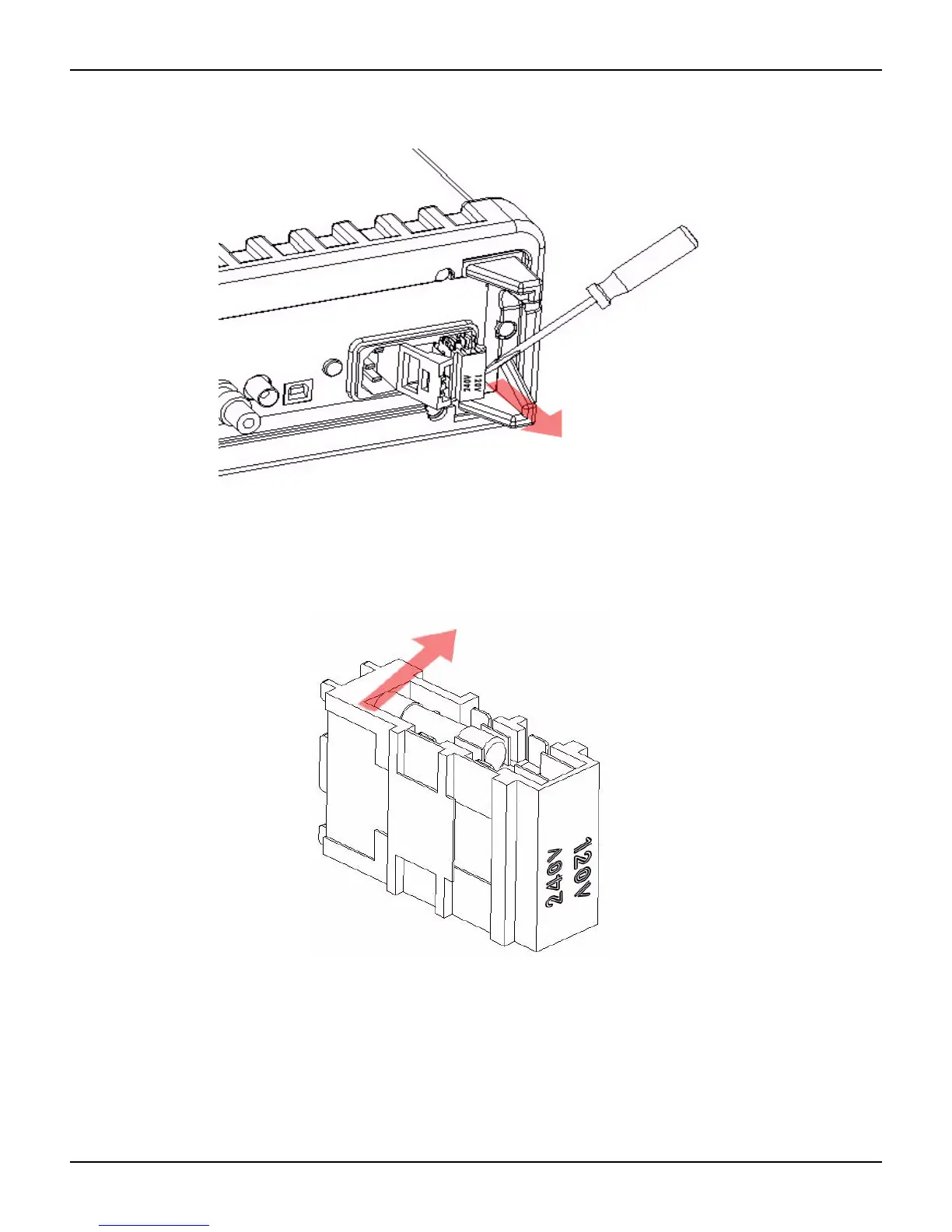

Figure 2-15
Removing the red voltage setting selector
Step 4: Remove the damaged power line fuse
Remove the damaged fuse from the selector as shown in Figure 2-16.
Figure 2-16
Removing the damaged power line fuse
Step 5: Replace the power line fuse
Replace with the new fuse as shown in Figure 2-17.

Keithley 2100 Specifications

General

DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Continuity	Yes
Diode Test	Yes
Frequency Range	3 Hz to 300 kHz
DC Voltage Accuracy	0.0035%
DC Current Range	100 µA to 10 A
DC Current Accuracy	0.05%
AC Current Range	100 µA to 10 A
Frequency Accuracy	0.01%
Capacitance Range	1 nF to 10 mF
Temperature Range	-200 °C
Connectivity	RS-232
Type	6.5-digit digital multimeter
