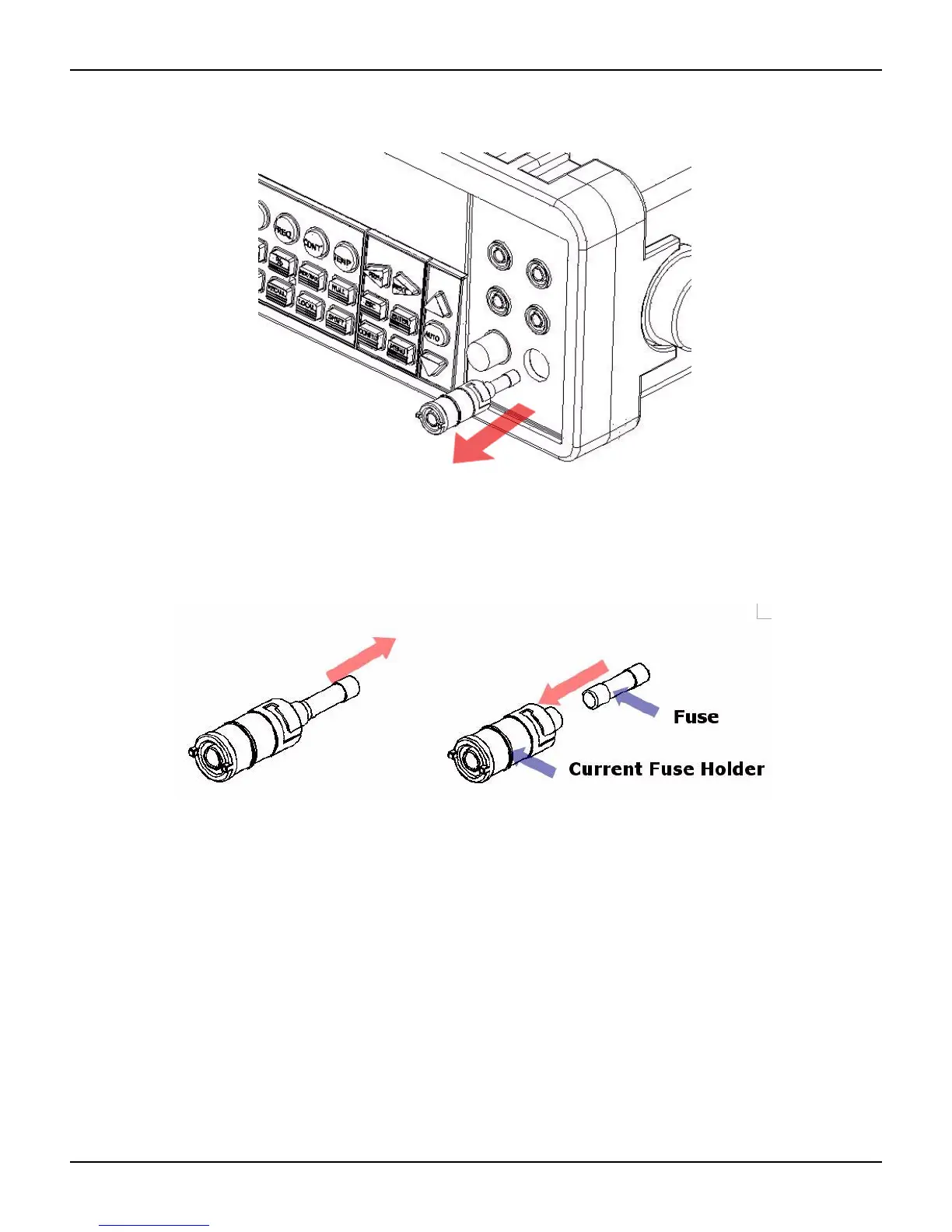

Figure 2-22
Removing the current input terminal fuse holder
Step 4: Remove and replace the damaged fuse
Remove the damaged fuse and replace it with the same type and rating of fuse (see Figure 2-23).
Figure 2-23
Removing and replacing the damaged fuse
Step 5: Reinsert and secure the current input terminal fuse holder
Reinsert the current input terminal fuse holder, turning it to the left as you push it in 
(see Figure 2-24). Ensure that the fuse holder is properly seated and secured.

Keithley 2100 Specifications

General

DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Resistance Range	100 Ω to 100 MΩ
Continuity	Yes
Diode Test	Yes
Frequency Range	3 Hz to 300 kHz
DC Voltage Accuracy	0.0035%
DC Current Range	100 µA to 10 A
DC Current Accuracy	0.05%
AC Current Range	100 µA to 10 A
Frequency Accuracy	0.01%
Capacitance Range	1 nF to 10 mF
Temperature Range	-200 °C
Connectivity	RS-232
Type	6.5-digit digital multimeter
