Series 3700A System Switch/Multimeter Reference Manual Section 2: Installation

3700AS-901-01 Rev. D/June 2018 2-9

6. Select Auto-detect Instrument Driver - Model.

7. Click Next. The Configure USB Instrument dialog box is displayed with the detected instrument

VISA resource string displayed.

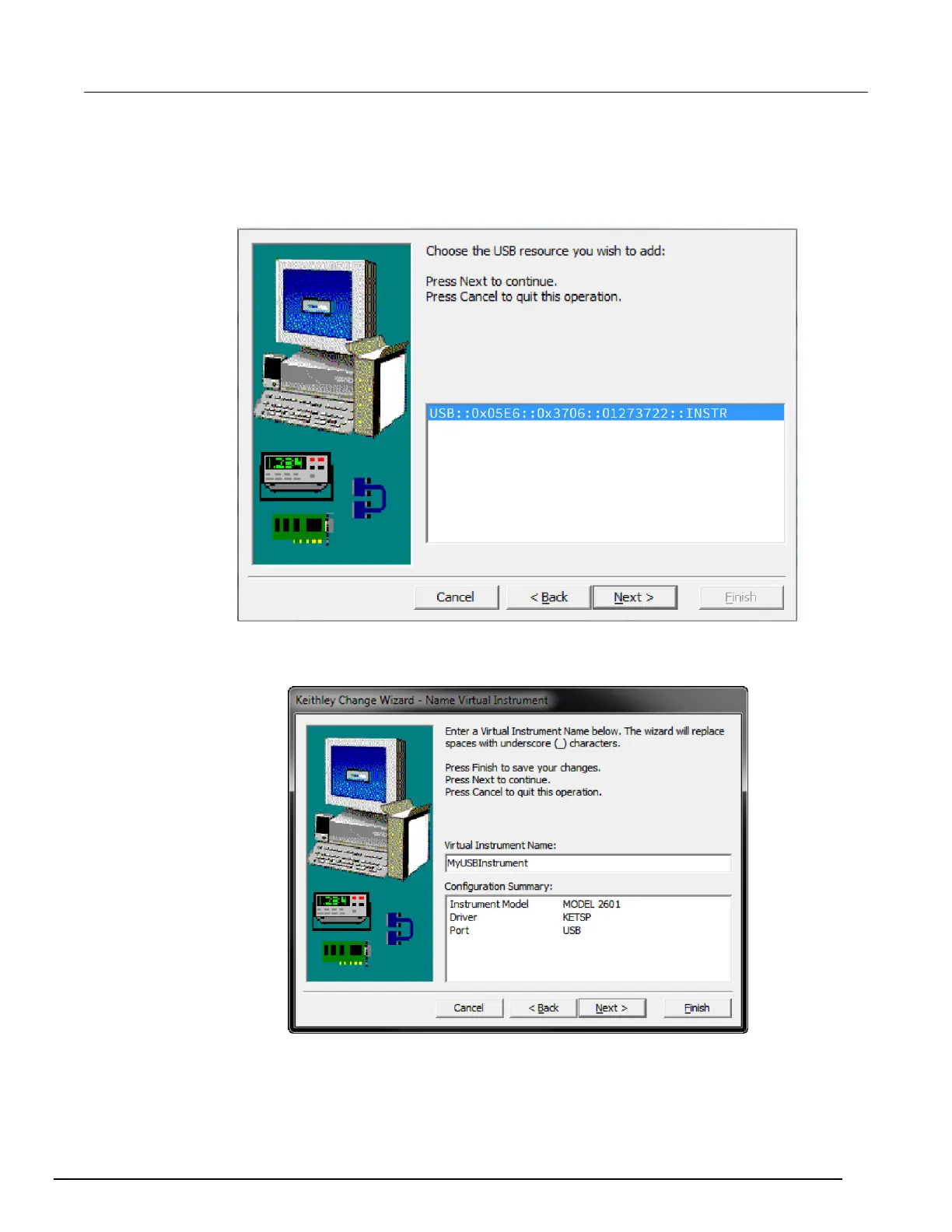

Figure 10: Configure USB Instrument dialog box

8. Click Next. The Name Virtual Instrument dialog box is displayed.

Figure 11: Name Virtual Instrument dialog box

9. In the Name Virtual Instrument box, enter a name that you want to use to refer to the instrument.

10. Click Finish.

11. Click Cancel to close the Wizard.
