Keithley 3706A Reference Manual

Series 3700A System Switch/Multimeter Reference Manual Appendix C: Status model
3700AS-901-01 Rev. D/June 2018 C-5
System summary bit (System register)
The summary bit of the system register provides enabled summary information to Bit B1 (SSB) of the
status byte.

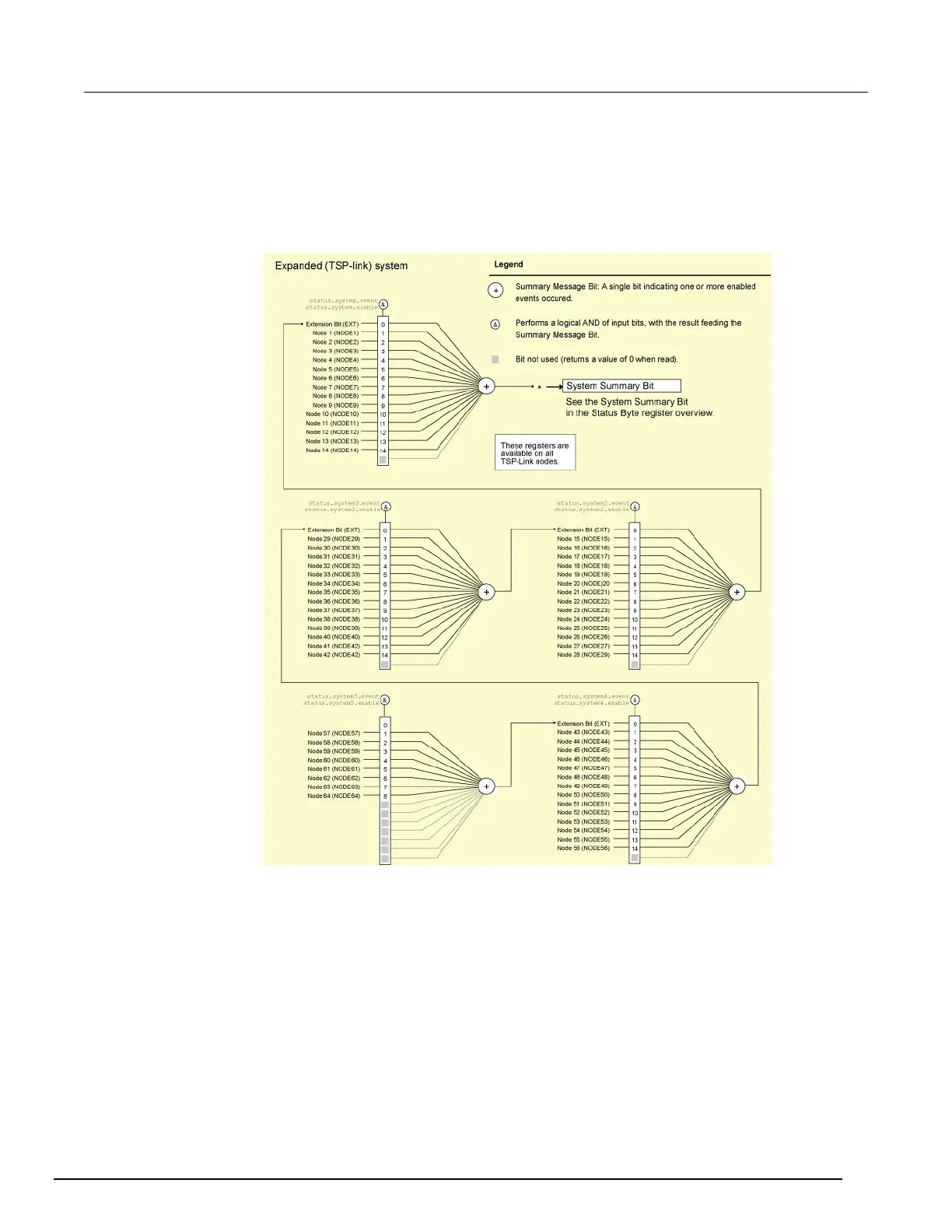

Figure 181: System summary bit (System Register)

Keithley 3706A Specifications

General

Model	3706A
Category	System Switch/Multimeter
Voltage Range	100 nV to 300 V
Basic DC Voltage Accuracy	0.0035%
Basic Resistance Accuracy	0.01%
Maximum Channels	576
Maximum Voltage	300 V
Connectivity	LAN, USB, GPIB
Interface	LAN, USB, GPIB
Switching Matrix	Yes
Channels	576 (6-slot mainframe)
Maximum Current	3 A
