Port configuration
The digital I/O port, a standard female DB-25 connector (shown below), is on the rear panel.

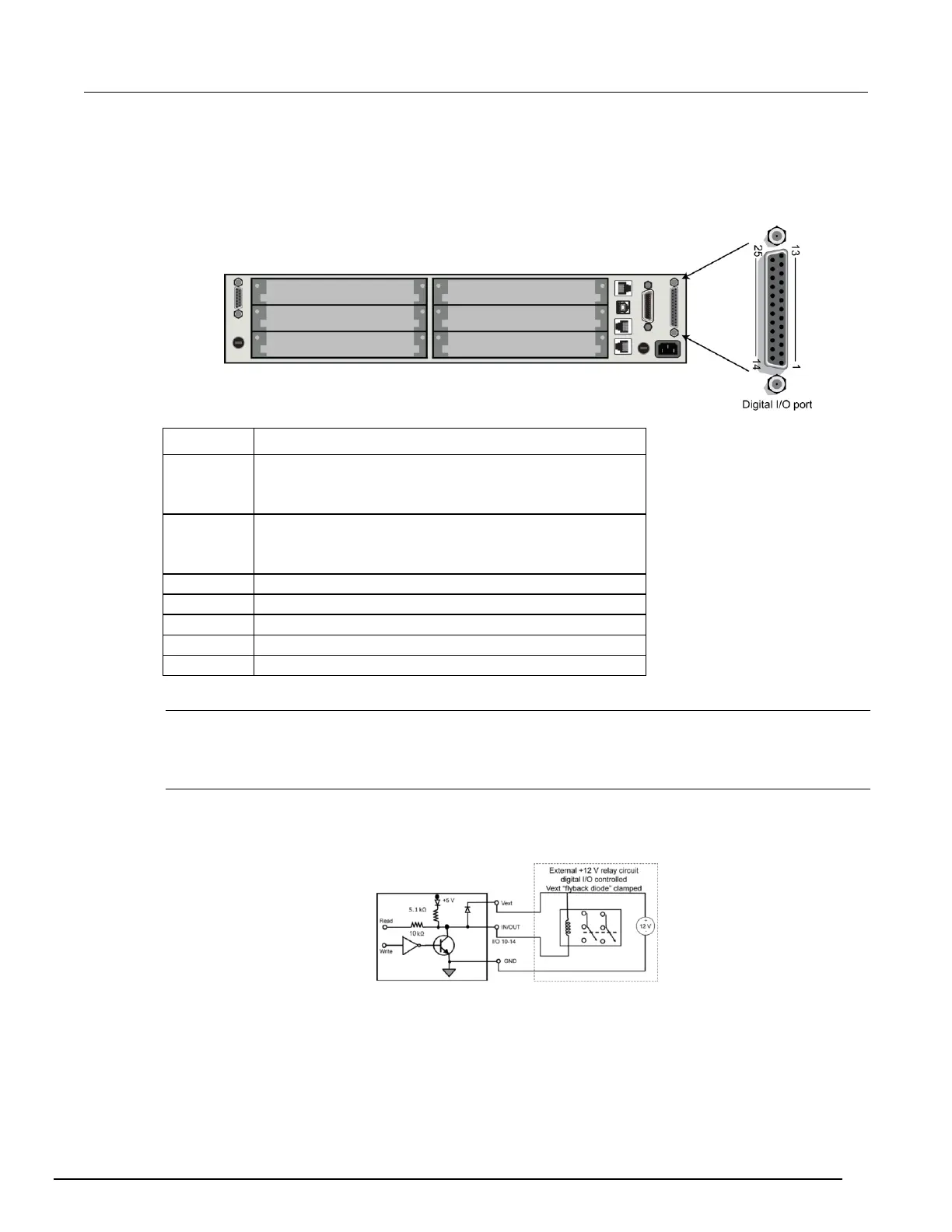

Figure 15: Digital I/O port
Pin
Description
1
...
9
Digital I/O #1
...
Digital I/O #9
10
...
14
Digital I/O #10 (high-current pins)
...
Digital I/O #14
15 to 21
Ground
22
V EXT
23
V EXT
24
Pin reserved for future use
25
V EXT
Connecting cables
Use a cable equipped with a standard male DB-25 connector (Keithley Instruments part number
CA-126-1).
Vext
The Series 3700A digital I/O provides flyback diode pins named Vext. When connected, Vext can
clamp external inductive circuitry (for example, relay drive coils) from +5 V to +33 V. Refer to the
figure below for a simplified digital I/O schematic.
Figure 16: Vext flyback
diode digital I/O
schematic
