Keithley 3706A Reference Manual

Series 3700A System Switch/Multimeter Reference Manual Section 10: Instrument programming
3700AS-901-01 Rev. D/June 2018 10-41

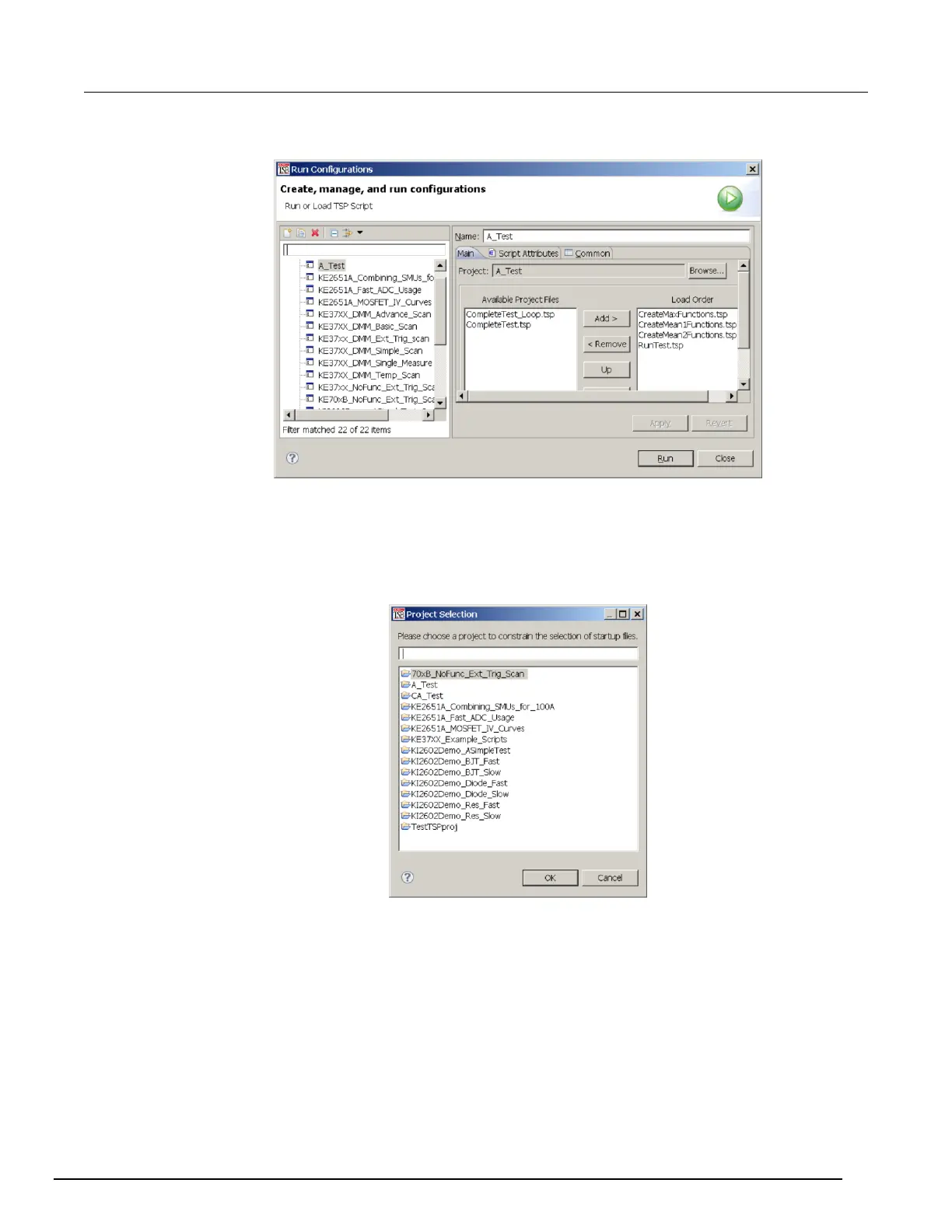

Figure 126: Run Configurations dialog box
4. In the Name box, enter the name of your new run configuration.
5. Click the Browse button next the Project box.
6. Select a project from the list of available projects
7. Click OK.
Figure 127: Project Selection dialog box

Keithley 3706A Specifications

General

Model	3706A
Category	System Switch/Multimeter
Voltage Range	100 nV to 300 V
Basic DC Voltage Accuracy	0.0035%
Basic Resistance Accuracy	0.01%
Maximum Channels	576
Maximum Voltage	300 V
Connectivity	LAN, USB, GPIB
Interface	LAN, USB, GPIB
Switching Matrix	Yes
Channels	576 (6-slot mainframe)
Maximum Current	3 A
