Keithley 3706A Reference Manual

Series 3700A System Switch/Multimeter Reference Manual Section 12: Troubleshooting guide
3700AS-901-01 Rev. D/June 2018 12-3

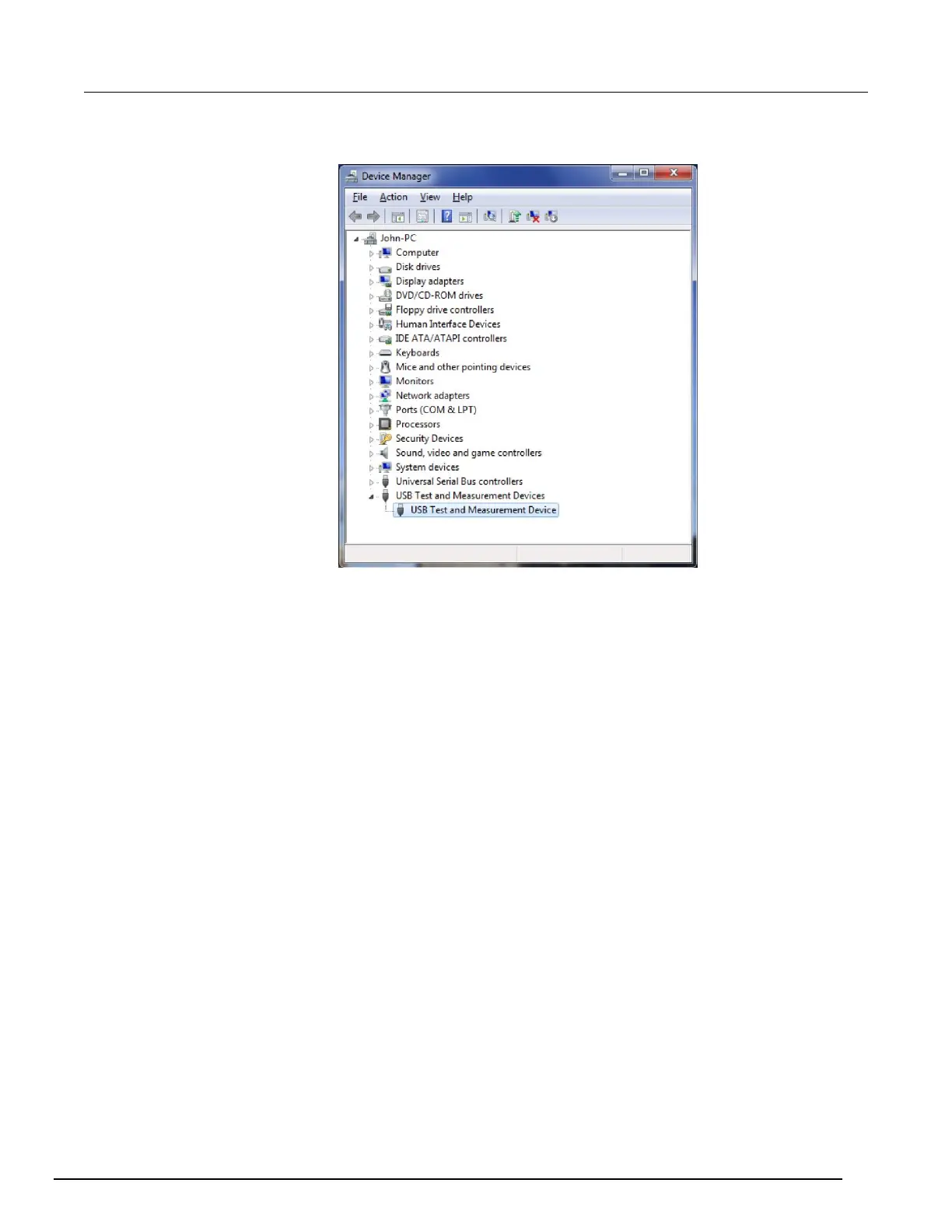

Figure 143: Device Manager dialog box showing USB Test and Measurement Device
3. Right-click the device.
4. Select Properties.
5. Select the Driver tab.
6. Click Driver Details.
7. Verify that the device driver is the ausbtmc.sys driver from IVI Foundation.

Keithley 3706A Specifications

General

Model	3706A
Category	System Switch/Multimeter
Voltage Range	100 nV to 300 V
Basic DC Voltage Accuracy	0.0035%
Basic Resistance Accuracy	0.01%
Maximum Channels	576
Maximum Voltage	300 V
Connectivity	LAN, USB, GPIB
Interface	LAN, USB, GPIB
Switching Matrix	Yes
Channels	576 (6-slot mainframe)
Maximum Current	3 A
