Model 6487 Reference Manual Status Structure 10-7
Status byte and service request (SRQ)
Service request is controlled by two 8-bit registers: the status byte register and the service
request enable register. Figure 10-3 shows the structure of these registers.

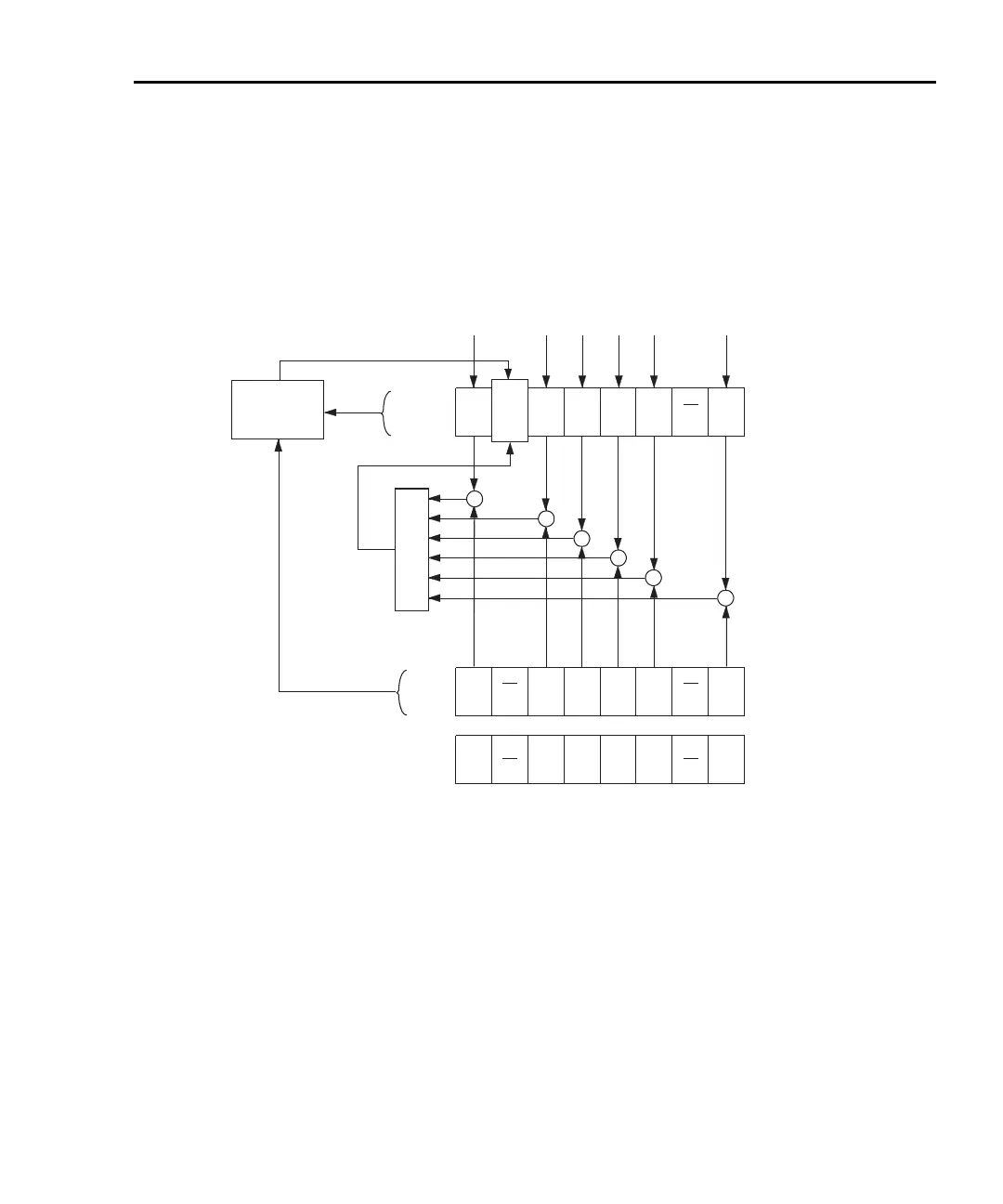

Figure 10-3
Status byte and service request
Status byte register
The summary messages from the status registers and queues are used to set or clear the
appropriate bits (B0, B2, B3, B4, B5, and B7) of the status byte register. These summary
bits do not latch and their states (0 or 1) are solely dependent on the summary messages
(0 or 1). For example, if the standard event register is read, its register will clear. As a
result, its summary message will reset to 0, which in turn will reset the ESB bit in the
status byte register.
Status Summary Messages (6)
OSB
(B7)
RQS
(B6)
MSS
ESB
(B5)
MAV
(B4)
QSB
(B3)
EAV
(B2)
(B1)
(B0)
OR
* SRE
* SRE?
Status Byte
Register
Service Request
Enable Register
OSB = Operation Summary Bit
MSS = Master Summary Status
RQS = Request for Service
ESB = Event Summary Bit
MAV = Message Available
QSB = Questionable Summary Bit
EAV = Error Available
MSB = Measurement Summary Bit
& = Logical AND
OR = Logical OR
OSB
(B7) (B6)
ESB
(B5)
MAV
(B4)
QSB
(B3)
EAV
(B2)
(B1)
(B0)
&
&
&
&
&
MSB
MSB
&
128
(2
7
)
32
(2
5
)
16
(2
4
)
8
(2
3
)
4
(2
2
)
1
(2
0
)
Decimal
Weights
* STB?
Serial Poll
Service
Request
Generation
To Next Page
