S530 Parametric Test System Test Subroutine Library User's Manual Section 3: Test subroutine library reference
S530-907-01 Rev. A / September 2015 3-41
V/I polarities
N-channel +V
DS
, +V
GS
, -V
BS
P-channel -V
DS
, -V
GS
, +V
BS
Source-measure units (SMUs)
 SMU1: Forces vds, default current limit, measures I
DS
 SMU2: Forces vgs, default current limit
 SMU3: Forces vbs, default current limit
Example
result = id1(d, g, s, sub, vgs, vds, vbs)

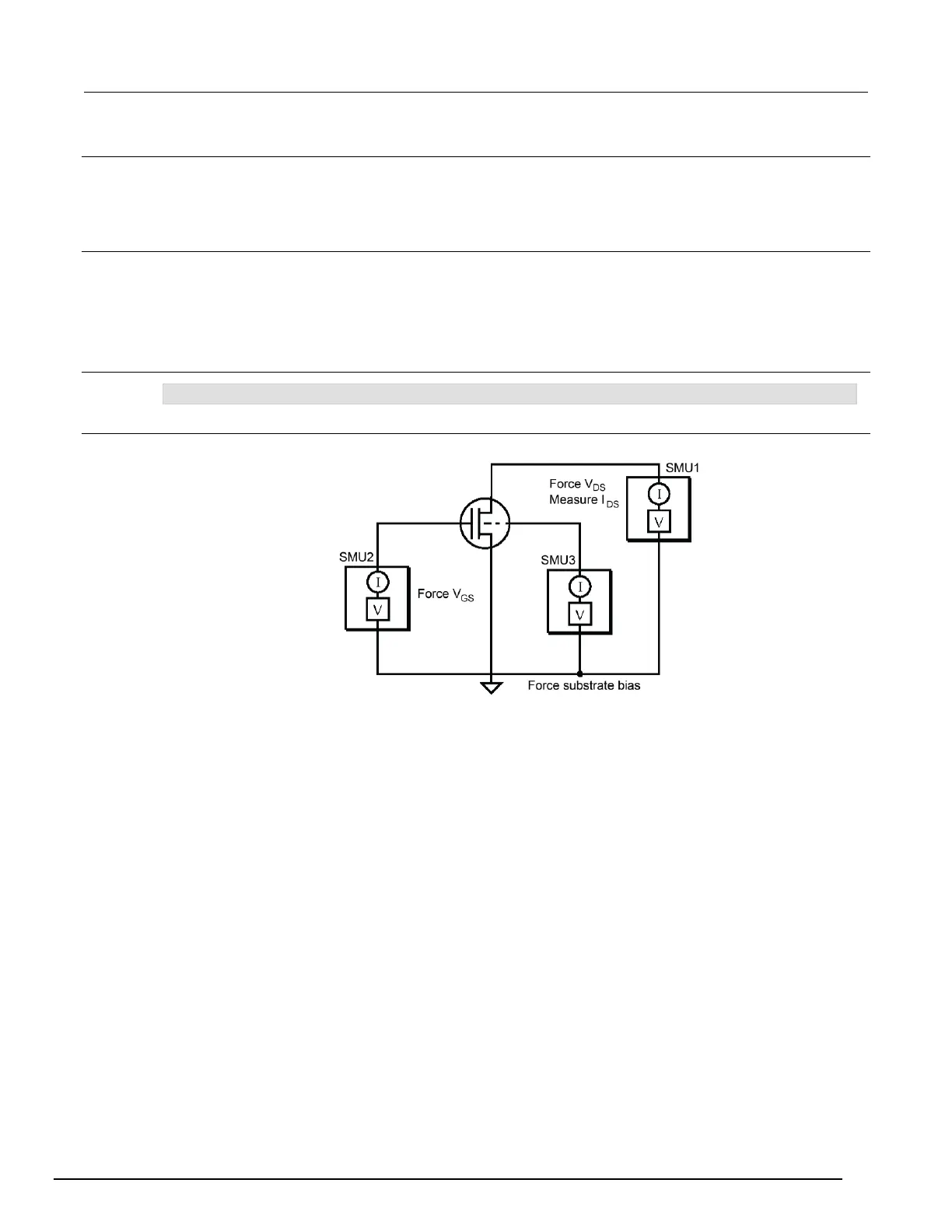

Schematic
