Keithley S530 User Manual

Section 2: Using the test subroutine library S530 Parametric Test System Test Subroutine Library User's Manual
2-2 S530-907-01 Rev. A / September 2015

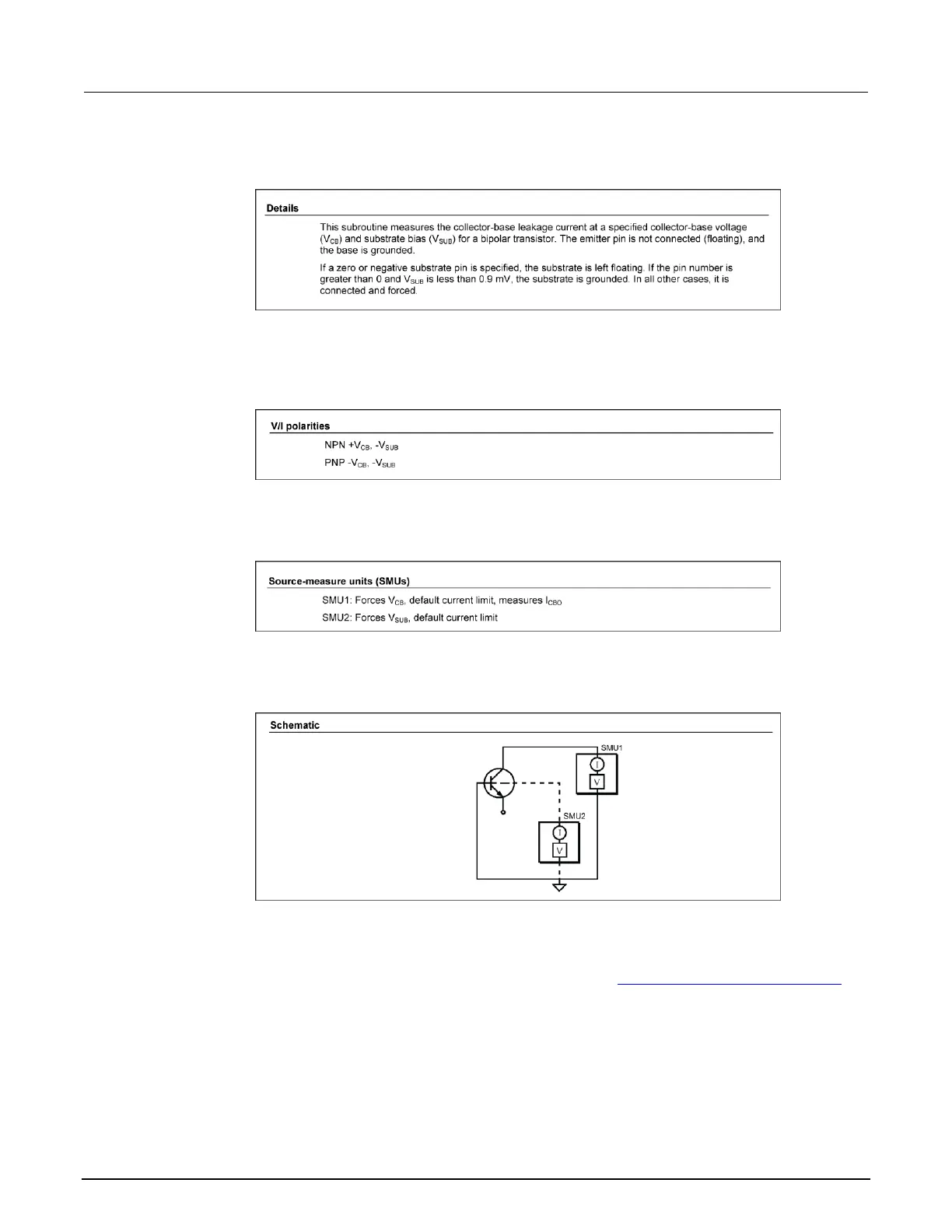

 Details: Additional information about using the subroutine.
Figure 3: Example details
 V/I polarities: The polarities of the current or voltage flow between the pins of the device; based
on whether you are using an NPN or PNP transistor. This information is only applicable in some
subroutines.
Figure 4: Example V/I polarities information
 Source-measure units (SMUs): A description of what each SMU in the test configuration does in
the subroutine. This information is only applicable in some subroutines.
Figure 5: Example SMUs description
 Schematic: A simplified schematic showing the configuration of the instruments and devices for
the subroutine. This information is only applicable in some subroutines.
Figure 6: Example schematic
Categorized subroutine lists
The subroutine descriptions are listed in alphabetical order in the Test subroutine library reference
(on page 3-1) section of this manual. The tables that follow contain all of the subroutines grouped by
function, with a brief description of the purpose of the subroutine and a hyperlink to the full subroutine
description.
