Service
KM00321,000022D -19-01SEP09-4/6
KM00321,000022D -19-01SEP09-5/6
KM00321,000022D -19-01SEP09-6/6

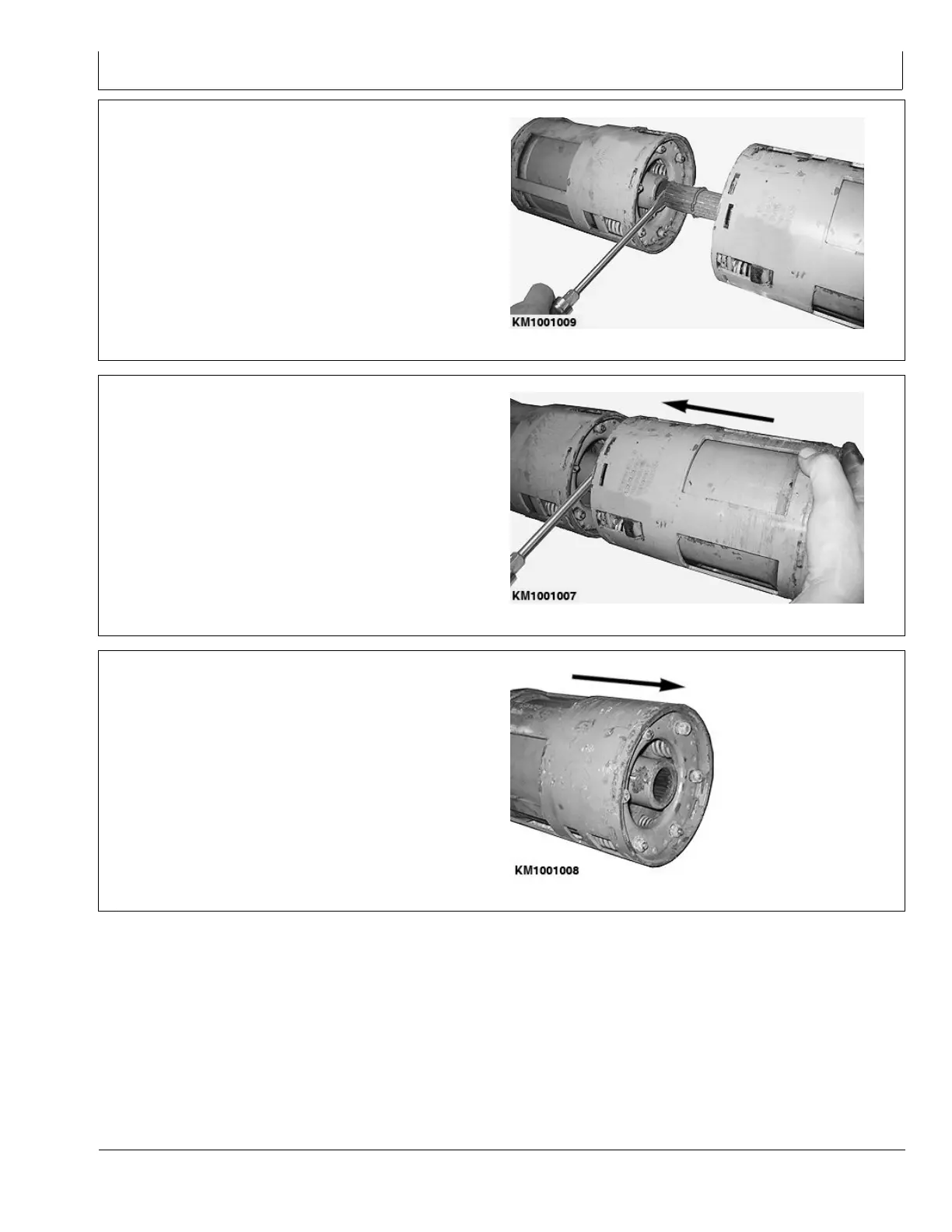

4. Secure the splined shaft with a suitable tool against
slipping.
KM1001009 —UN—01SEP09
5. Move the slip clutch onto the splined shaft as shown.
Remove the slip clutch with splined shaft.
KM1001007 —UN—01SEP09
6. Remove the second slip clutch.
NOTE: Assemble slip clutches in reverse order.
KM1001008 —UN—01SEP09
