Kemper 345plus - Adjusting Dividers

Service
KM00321,000035F -19-09DEC14-2/2
KM00321,000022A -19-01SEP09-1/1

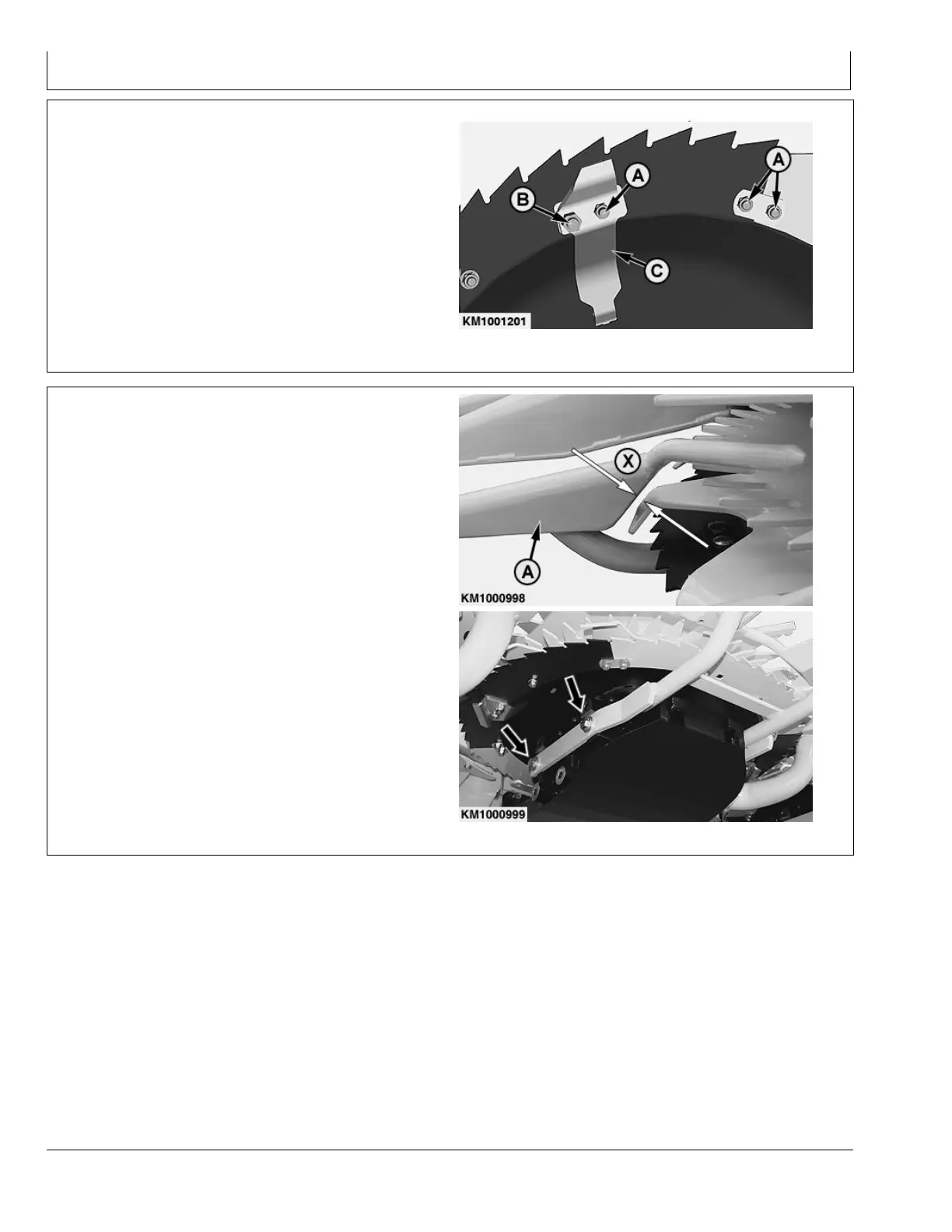

IMPORTANT: Always use reinforcement plate (C)
when installing the cleaners.
Tighten all attaching screws of blade segments and
cleaners with the specified torque.
Specification
Screws (M8)—Torque....................................................................28 N·m
20.65 lb.-ft.
Screws (M10)—Torque..................................................................51 N·m
37.62 lb.-ft.
A—Screws (M8)
B—Screws (M10)
C—Reinforcement Plate
KM1001201 —UN—07OCT14
Adjusting Dividers
In order to prevent plugging and crop losses, the dividers
(A) have to be properly adjusted.
Always keep distance (X) between 1 and 7 mm (0.04 and
0.27 in.).
The specified distance (X) can be adjusted by means of
slot holes (see arrows).
Specification
Dividers and
drums—Distance from
each other................................................................................ 1 to 7 mm
0.04 to 0.27 in.
A—Divider
X—1 to 7 mm (0.04 to 0.27 in.)
