Attaching to a FENDT Forage Harvester
KM00321,0000126 -19-23MAR12-1/1
KM00321,0000184 -19-12JUN12-1/5
Continued on next page KM00321,0000184 -19-12JUN12-2/5

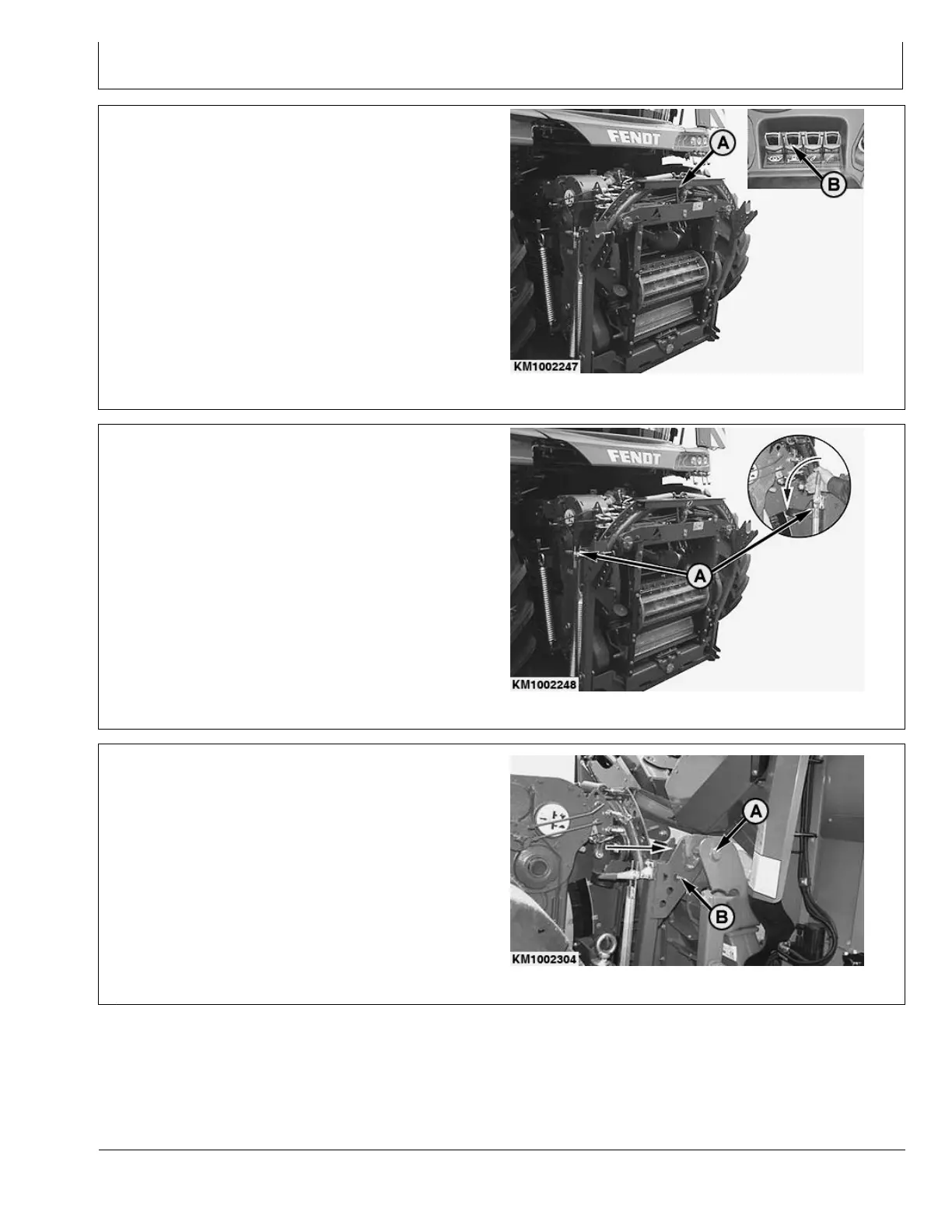

Align the Oscillating Frame
Align oscillating frame (A) with linear module (B).
A—Oscillating Frame
B—Linear Module
KM1002247 —UN—23MAR12
Attach the Rotary Harvesting Unit to FENDT
Forage Harvesters
1. Use tensioning lever (A) to open the lock.
A—Tensioning Lever
KM1002248 —UN—23MAR12
2. Drive the forage harvester slowly to the rotary
harvesting unit until pins (A) on the right and left sides
of the rotary harvesting unit are above the upper
receiver jaws (B) on the tilt frame.
A—Pin B—Receiver Jaws
KM1002304 —UN—11JUN12
