Kemper 345plus - Install Additional Wiring Harness (Only Forage Harvesters of the Types 498)

Attaching to a Claas forage harvester
Continued on next page KM00321,0000883 -19-26FEB19-1/3

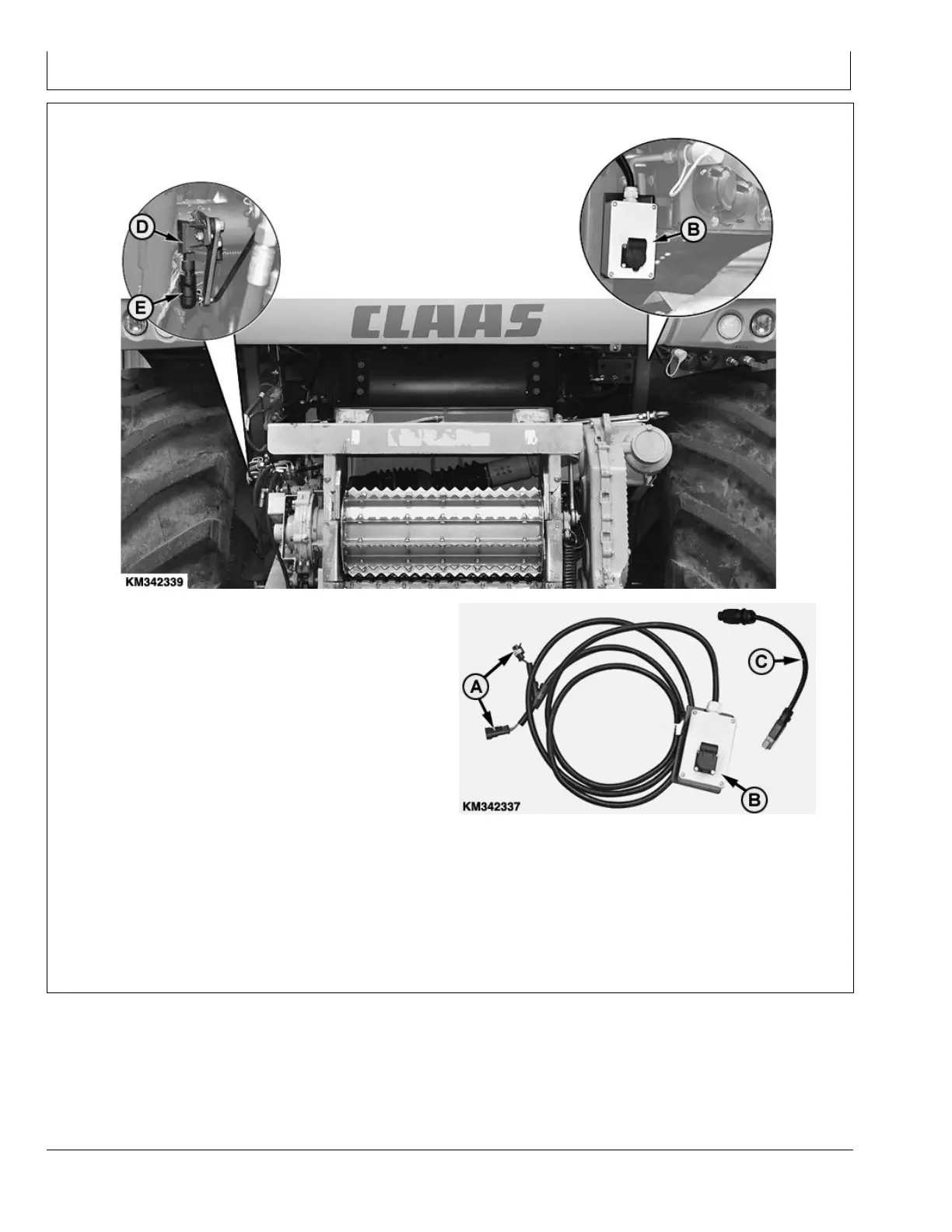

Install additional wiring harness (only forage harvesters of the types 498)
KM342339 —UN—03JUL18
IMPORTANT: The additional wiring harness is supplied
with the following rotary harvesting units and
must be mounted on the forage harvester:
•
All rotary harvesting units that are equipped
for the attachment of the additional chassis
•
All 10-row and 12-row rotary harvesting units
NOTE: The additional wiring harness is required so
that the rotary harvesting unit can be folded
in the raised condition.
The wiring harness supplied must be installed on the
Claas forage harvester before attaching the rotary
harvesting unit for the first time.
To do so, proceed as follows:
1. Pull out the connector (E) from the angle sensor (D) of
the forage harvester.
2. Connect the plug connections (A) of the supplied
wiring harness between the angle sensor (D) and
connector (E) on the forage harvester.
KM342337 —UN—02JUL18
A—Plug connections
B—Socket outlet
C—Connecting cable
D—Angle sensor
E—Connector
