Kemper 345plus - Connecting the Drive (Forage Harvester Type 492)

Attaching to a Claas forage harvester
KM00321,0000362 -19-16DEC14-1/1
Connecting the Drive (Forage Harvester Type
492)

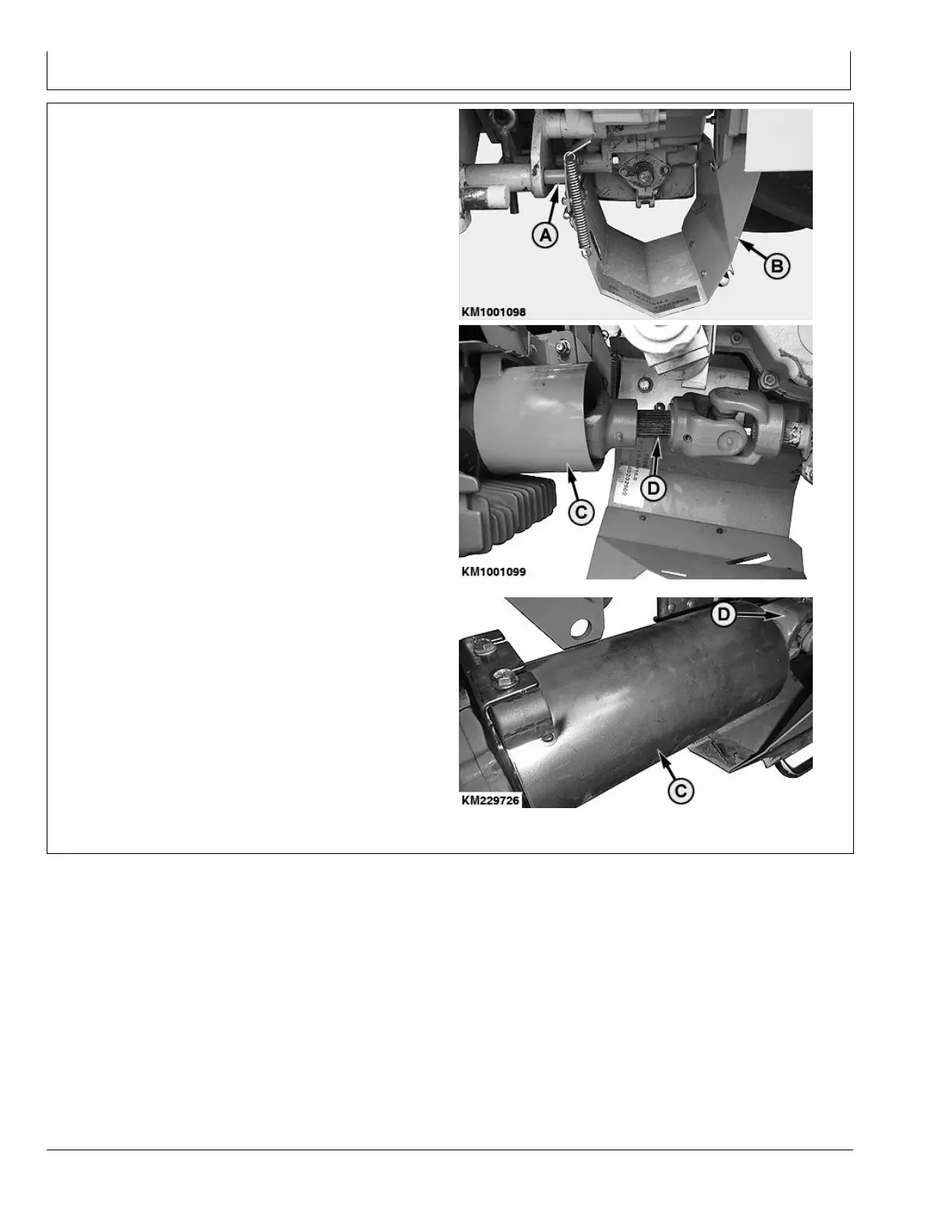

1. Install spacer bushings (A).
2. Extend the equipped shield by attaching plate (B).
3. Install protective cover (C).
4. Connect u.j. shaft (D).
IMPORTANT: Secure the u.j. shaft (D) with locking
screws on both sides.
Make sure that u.j. shaft can no longer move.
A—Spacer Bushings
B—Plate
C—Protective Cover
D—U.J. Shaft
