Lubrication and Maintenance
Continued on next page KM00321,0000360 -19-19DEC14-1/2

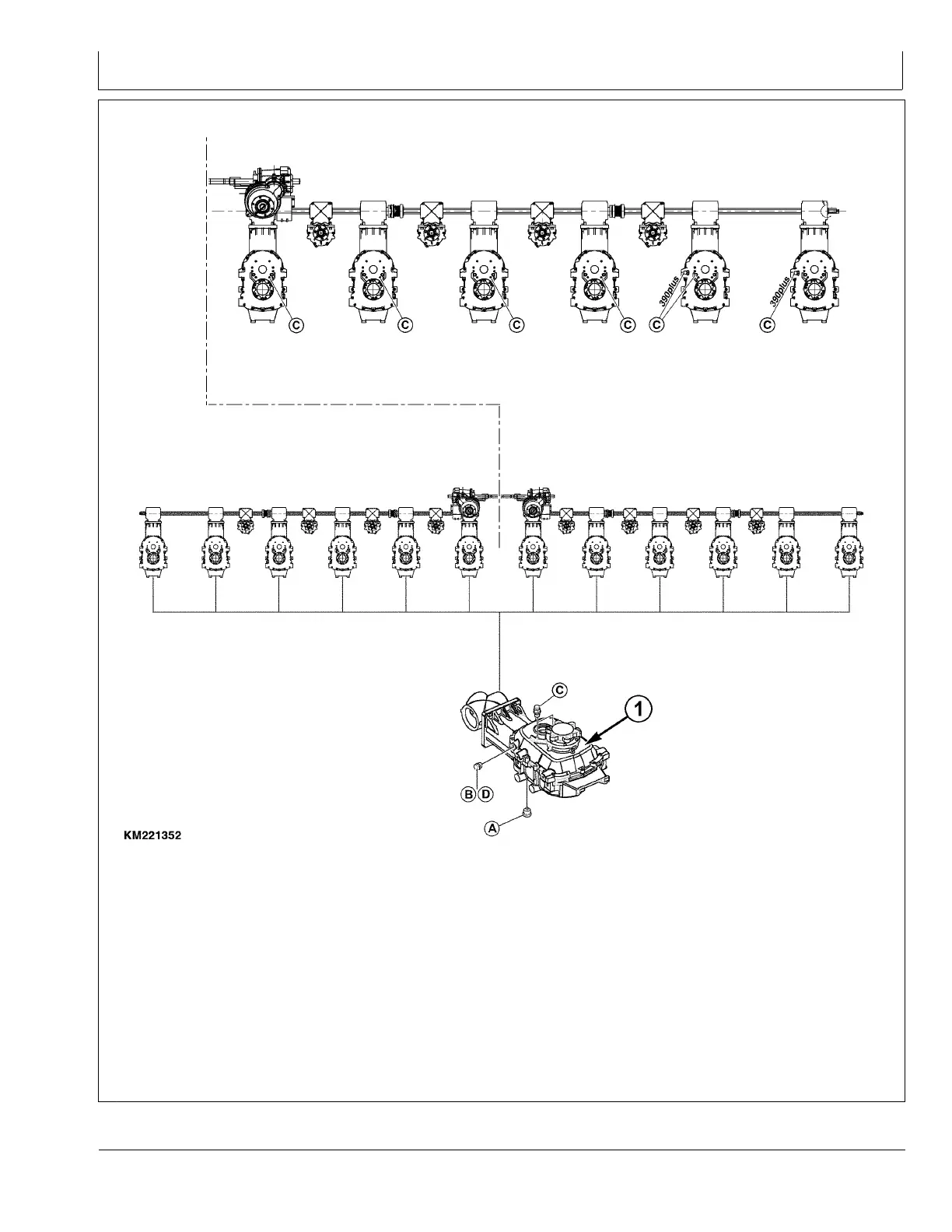

Overview of Transmissions and Oil Levels (Part 2)
KM221352 —UN—07OCT14
A—Oil Drain Plug
B—Oil Filler Plug
C—Breather
D—Oil Level Plug
1— Gathering Drums, Spur
Gear Angle Drive - 8.5 L
(2.25 US. gal.)
Rotary harvesting unit transmissions (gathering
drums)
NOTE: Twelve spur gear angle drives (1) for gathering
drums are used on 390
plus
, ten on 375
plus
, eight on
360
plus
, and six on 345
plus
rotary harvesting unit.
IMPORTANT: Make sure that breathers (C) are
always installed as shown in the illustration.
Additionally on 390
plus
only, pay attention
that the two outer breathers (C) are installed
on the oblique side of the gearbox. This
will prevent oil from escaping when folding
the rotary harvesting unit.
NOTE: The illustration shows location of breather
on left side. Install breather on the right side
accordingly (mirror-imaged).
50-5
031519
PN=99
