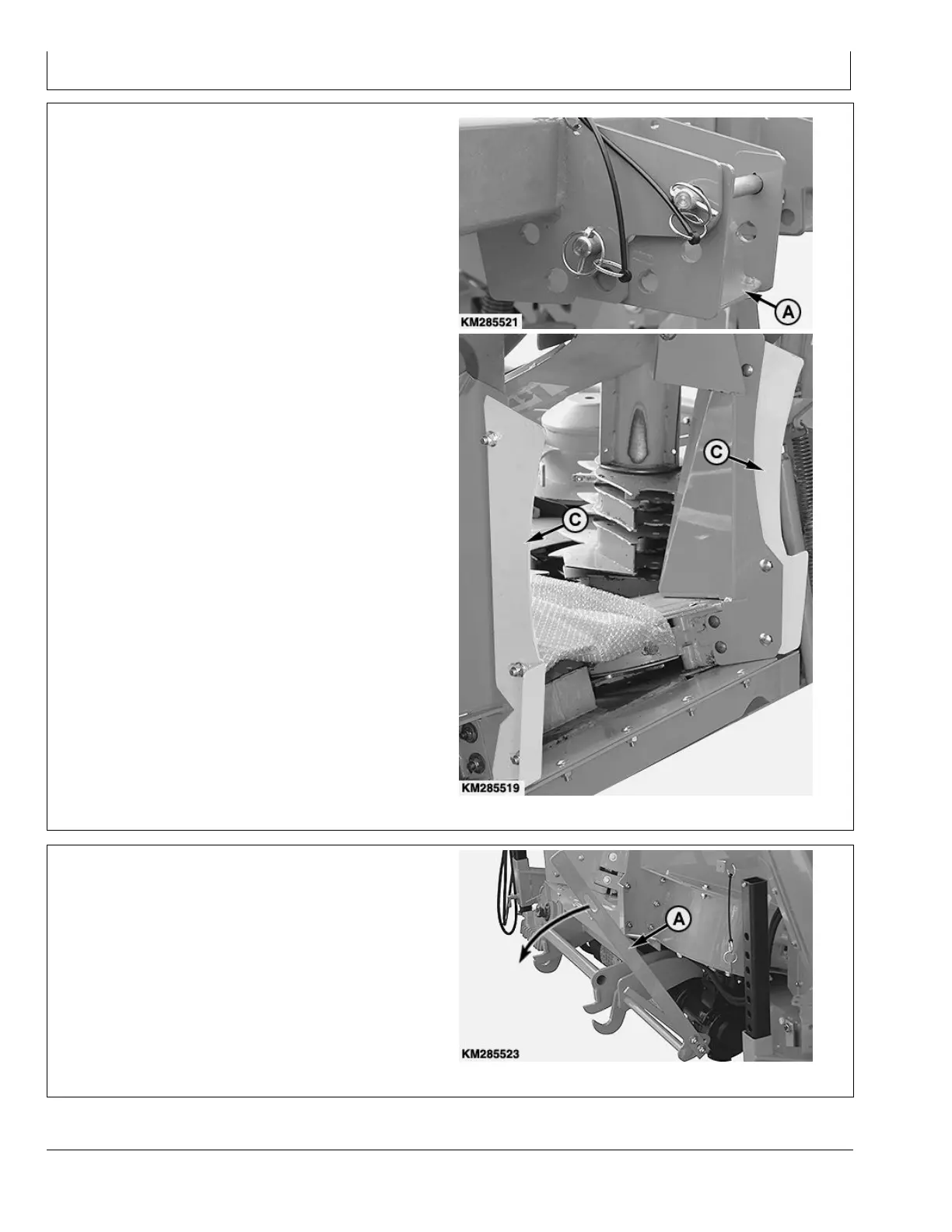

In certain harvesting conditions, console (A) can be
installed in the rear position to obtain a larger angle to
the ground (see illustration).
IMPORTANT: When consoles (A) are installed
in the rear position, the long feed plates
(C) must be installed.
Rotary harvesting unit with oscillating frame:
On rotary harvesting units with oscillating frame, consoles
(A) cannot be adjusted.
IMPORTANT: On rotary harvesting units with
oscillating frame, the long feed plates (C)
must be installed at all times.
IMPORTANT: When attaching the rotary harvesting
unit, make sure that feed plates (C) do not touch
the feed rolls of the forage harvester.
A—Console
B—Feed Plates
KM285521 —UN—21NOV16KM285519 —UN—21NOV16
Attach to CLAAS Forage Harvesters (Rotary
Harvesting Units with Rigid Attaching Frame)
1. Unlatch lever (A).
A—Lever
KM285523 —UN—21NOV16
