Attaching to a Claas forage harvester
KM00321,0000546 -19-20JUN16-2/5
Continued on next page KM00321,0000546 -19-20JUN16-3/5

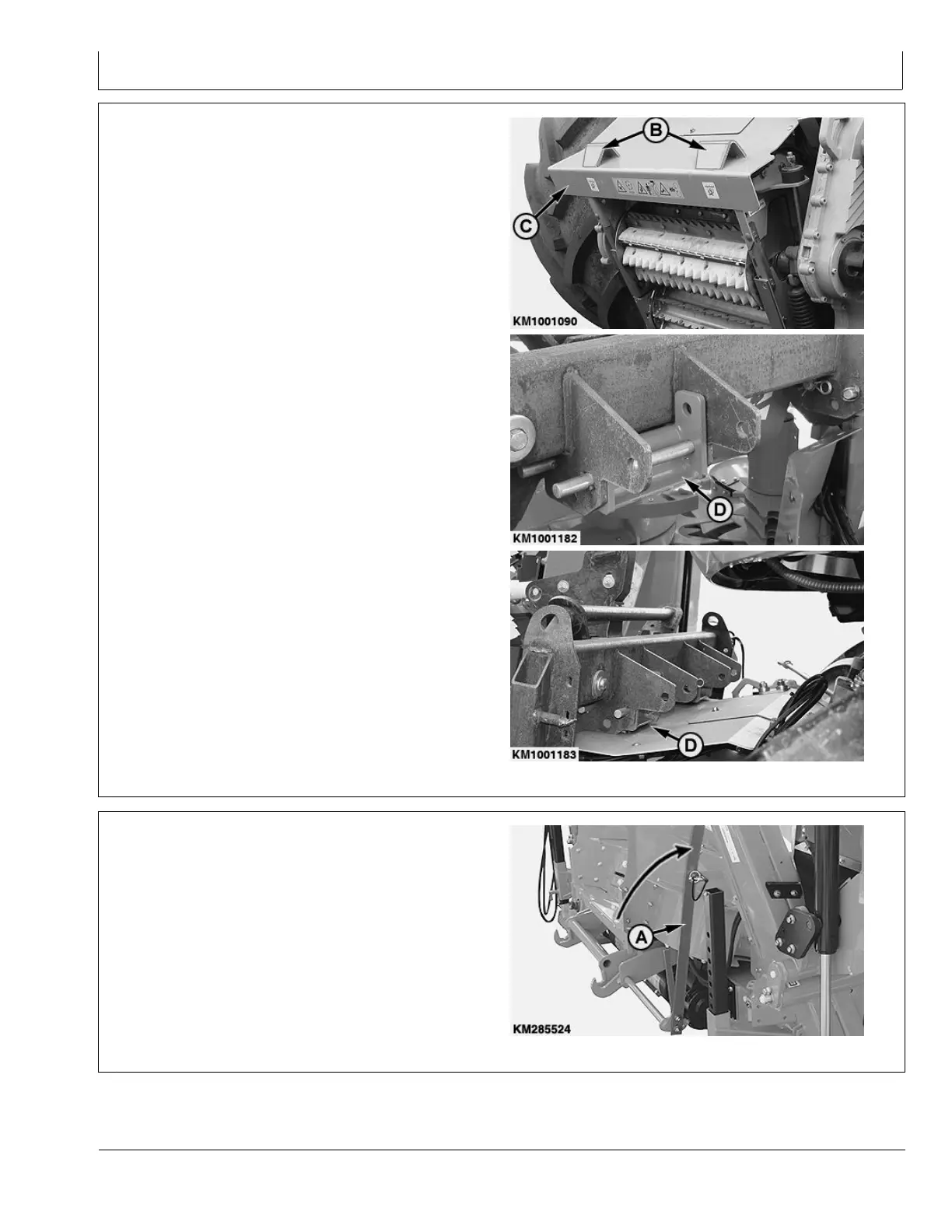

2. Drive the forage harvester close to the rotary
harvesting unit's frame until attaching straps (B)
protrude into consoles (D) of the attaching frame.
Lift feed roll housing (C) up until attaching straps (B)
of the rotary harvesting unit lie in the consoles (D).
B—Attaching Straps
C—Feed Roll Housing
D—Console
KM1001090 —UN—04FEB10KM1001182 —UN—07APR10KM1001183 —UN—07APR10
3. Lock rotary harvesting unit by engaging lever (A).
Secure lever (A) with quick-lock pin.
A—Lever
KM285524 —UN—21NOV16
20-10
031519
PN=37
