Kemper 345plus - Unlock the Oscillating Frame

Attaching to a FENDT Forage Harvester
KM00321,000012D -19-29MAR12-2/2
KM00321,000012F -19-29MAR12-1/1

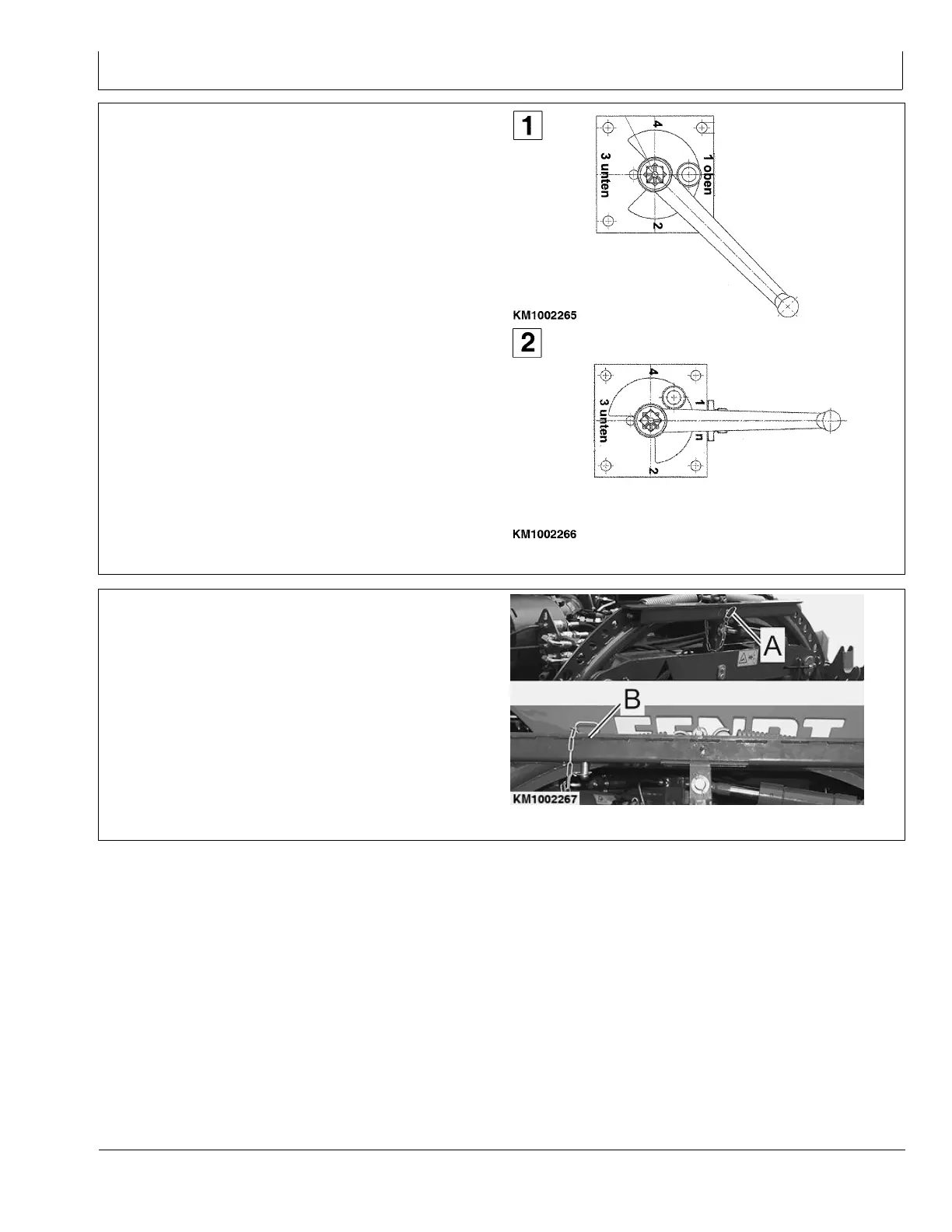

Ball cock positions
1— Position for Maize 2— Position for Grass
KM1002265 —UN—29MAR12KM1002266 —UN—29MAR12
Unlock the Oscillating Frame
Remove locking pin (A) and insert it in hole (B) in the
oscillating frame.
NOTE: The oscillating frame is now unlocked.
A—Locking Pin B—Hole
