Kemper 345plus - Set AHC Sensors in the Transport Position; Lock;Unlock Tilt Frame (Rotary Harvesting Units for CLAAS Forage Harvesters Only)

Transport
KM00321,000081E -19-05JUL18-1/1
KM00321,0000196 -19-29JUN12-1/1

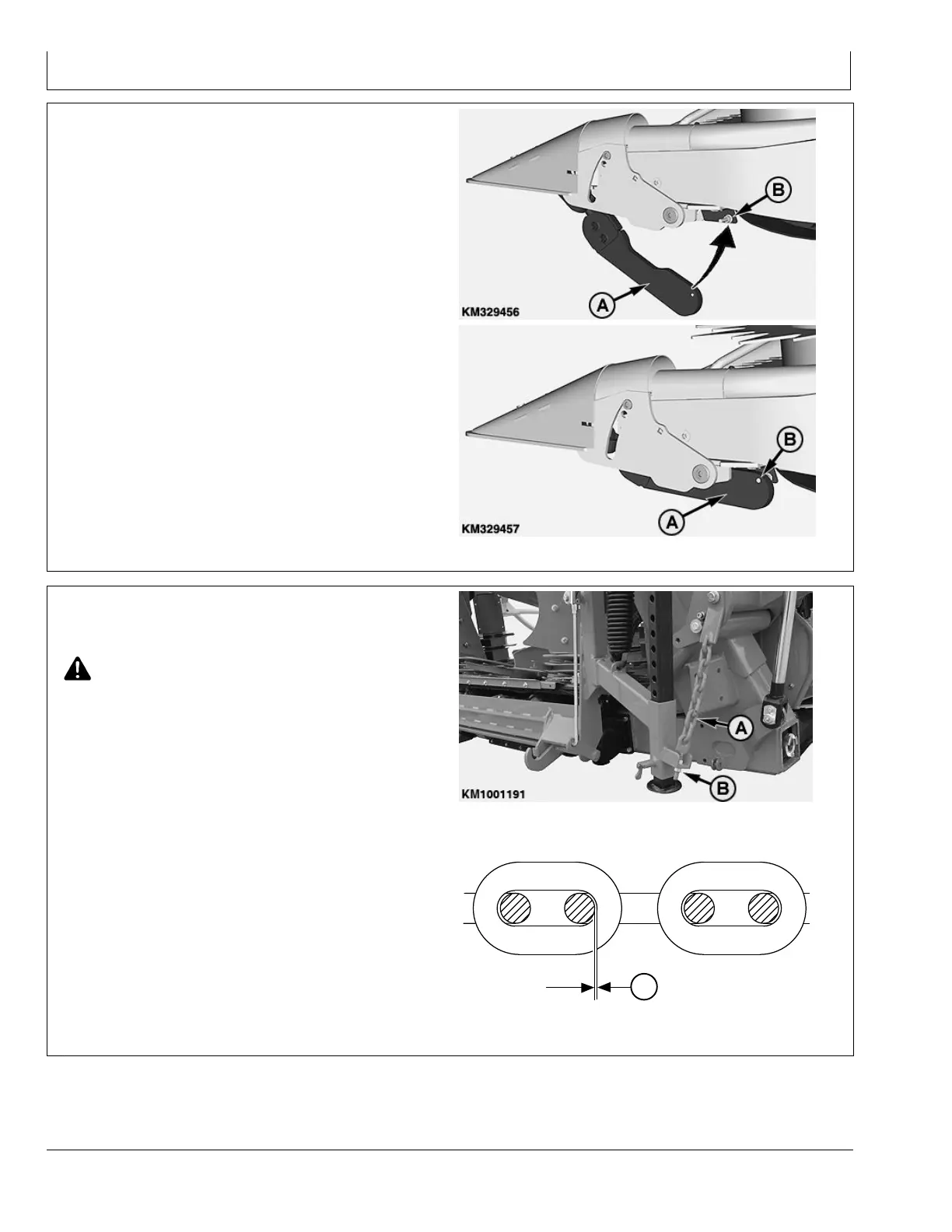

Set AHC sensors in the transport position
345
plus
and 360
plus
models only
AHC-Sensors (A) must be set into transport position in
order to meet maximum transport width:
•
Swing AHC sensor (A) in direction of arrow.
•
Put AHC-Sensor (A) onto bolt (B).
•
Repeat procedure on the other side.
A—AHC sensor B—Screw
KM329456 —UN—28AUG17KM329457 —UN—28AUG17
Lock/Unlock Tilt Frame (Rotary Harvesting
Units for CLAAS Forage Harvesters Only)
CAUTION: To prevent unintended movement
of the rotary harvesting unit when driving on
public roads, always lock the tilt frame.
The rotary harvesting unit must be folded up (transport
position) when driving on public roads. In this position,
the rotary harvesting unit is protected from pivoting by
two chains (A).
With the harvesting unit in transport position, regularly
re-tension the chains (A) using nut (B) so that a clearance
(X) of approx. 1 mm (0.04 in.) is maintained between the
chain links to avoid twisting and ensure a proper function.
A—Chain
B—Nut
X—1 mm (0.04 in.)
KM1001191 —UN—28APR10
ZX1040571
X
ZX1040571 —UN—12APR07
