Lubrication and Maintenance
KM00321,000019C -19-10AUG12-1/1

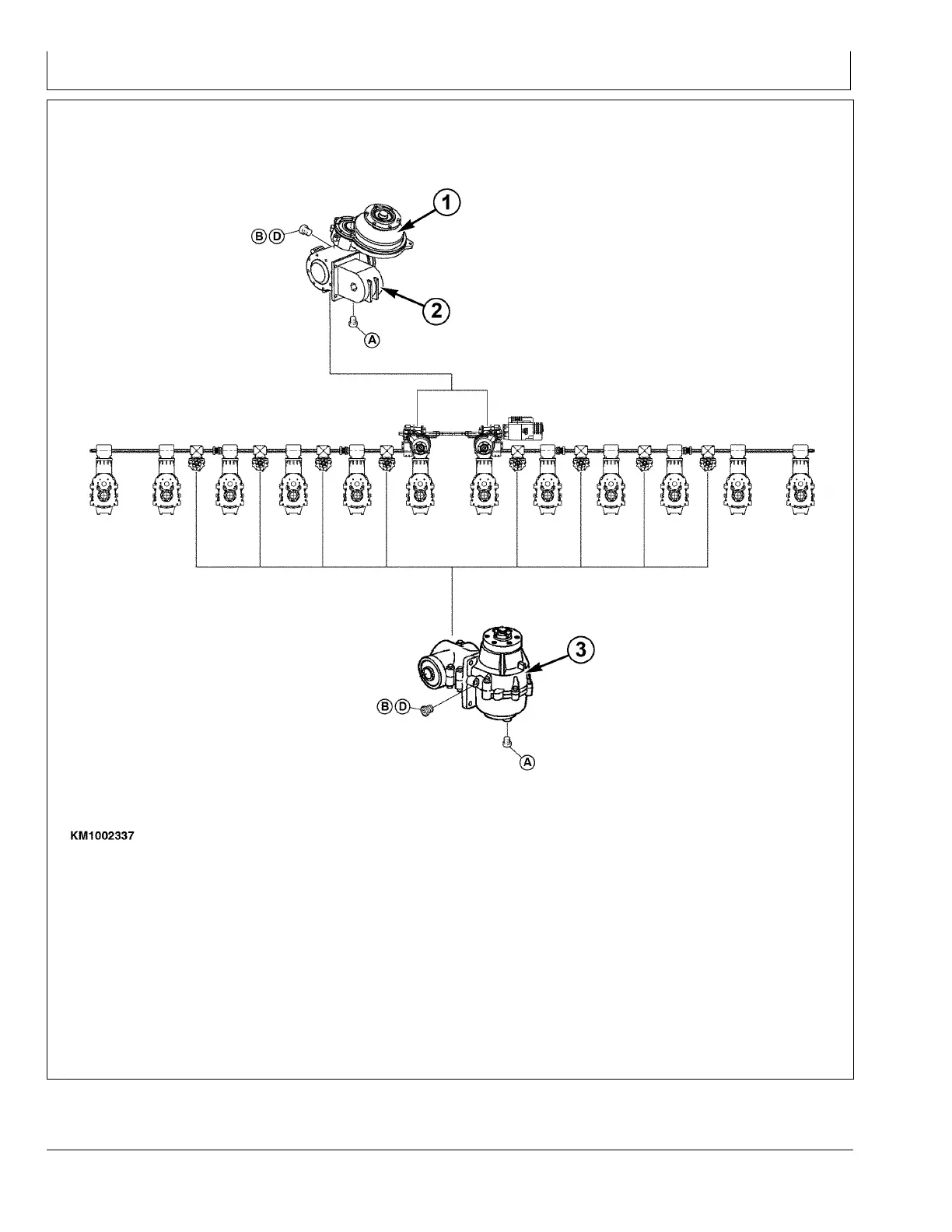

Overview of Transmissions and Oil Levels (Part 1)
KM1002337 —UN—04JUL12
390
plus
Rotary Harvesting Unit Shown
A—Oil Drain Plug
B—Oil Filler Plug
D—Oil Level Plug
1— Spur Gear Angle Drive of
Feed Drums (With a Lifetime
Filling of Fluid Grease)
2— Spur Gear Angle Drive - 1.0 L
(0.26 US. gal)
3— Spur Gear Angle Drive of
Cross Feed Drums - 0.85 L
(0.22 US. gal)
Rotary harvesting unit transmissions
NOTE: Eight spur gear angle drives (4) for cross feed
drums are used on 390
plus
, six on 375
plus
, four on
360
plus
, and two on 345
plus
rotary harvesting unit.
Check oil level
Raise rotary harvesting unit slightly so that it is horizontal,
and check oil level in transmissions and angle drives.
Oil level is correct when it reaches the bottom edge of
oil level plug (D).
50-4
031519
PN=98
