Attaching to a Claas forage harvester
Continued on next page KM00321,0000545 -19-21JUN16-1/2
Install Feed Plates
Rotary harvesting units with rigid attaching frame:
Depending on the condition of the crop, the rotary
harvesting unit can be engaged in two different positions.
To guide the rotary harvesting unit flat on the ground,
install console (A) on both sides in the front position as
shown (factory setting).
IMPORTANT: When consoles (A) are installed
in the front position, the short feed plates
(B) must be installed.

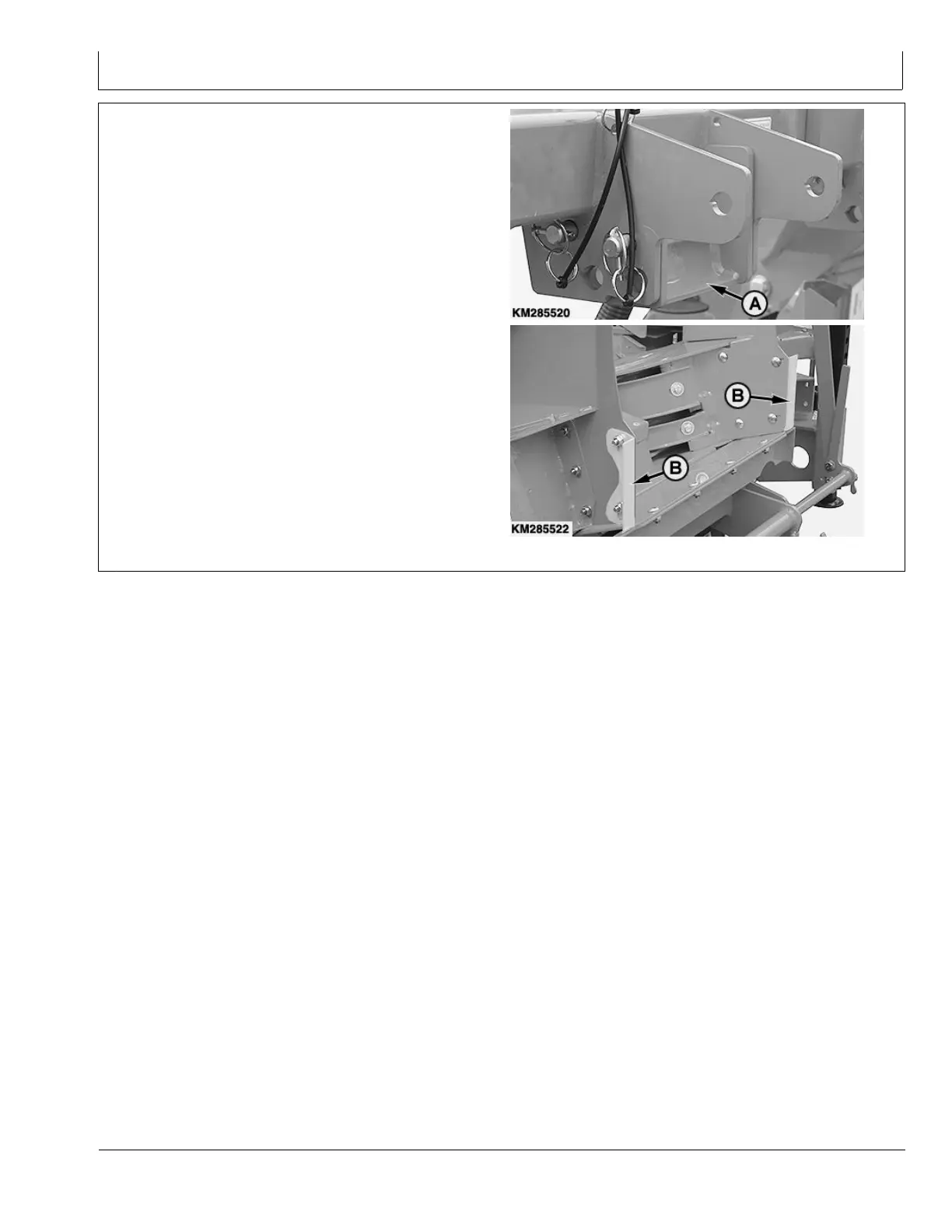

A—Console
B—Feed Plates
