Attaching to a FENDT Forage Harvester
KM00321,0000184 -19-12JUN12-3/5
KM00321,0000184 -19-12JUN12-4/5
KM00321,0000184 -19-12JUN12-5/5

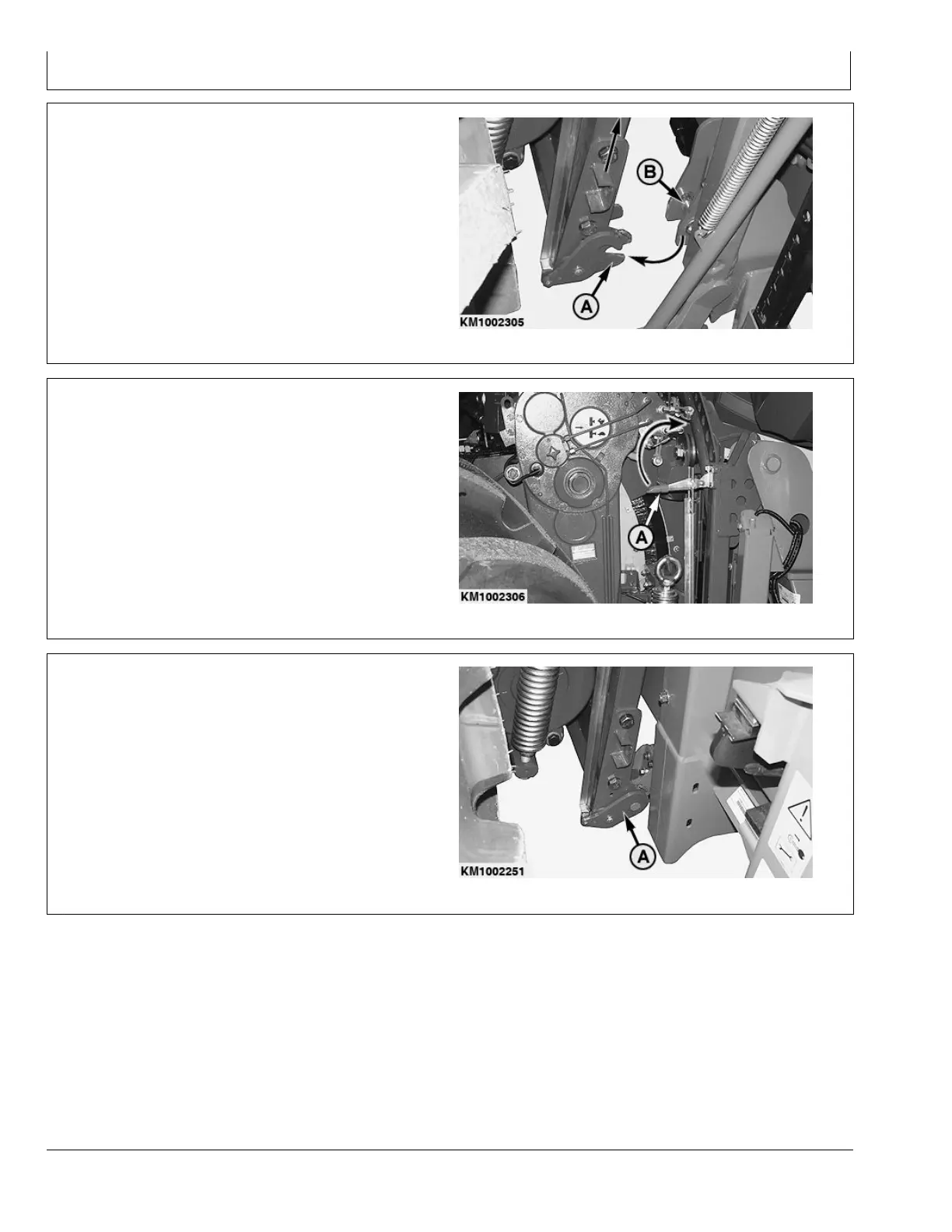

3. Raise the lifting gear until pins (B) engage in the lower
latches (A) at left and right.
4. Stop the engine.
5. Apply the park brake.
A—Latches B—Pin
KM1002305 —UN—12JUN12
6. Use tensioning lever (A) to close the lock.
A—Tensioning Lever
KM1002306 —UN—12JUN12
7. Check that locking hooks (A) are seated correctly.
A—Locking Hook
KM1002251 —UN—23MAR12
23-2
031519
PN=64
