Attaching to a KRONE Forage Harvester
KM00321,000053F -19-14JUN16-5/7
Continued on next page KM00321,000053F -19-14JUN16-6/7

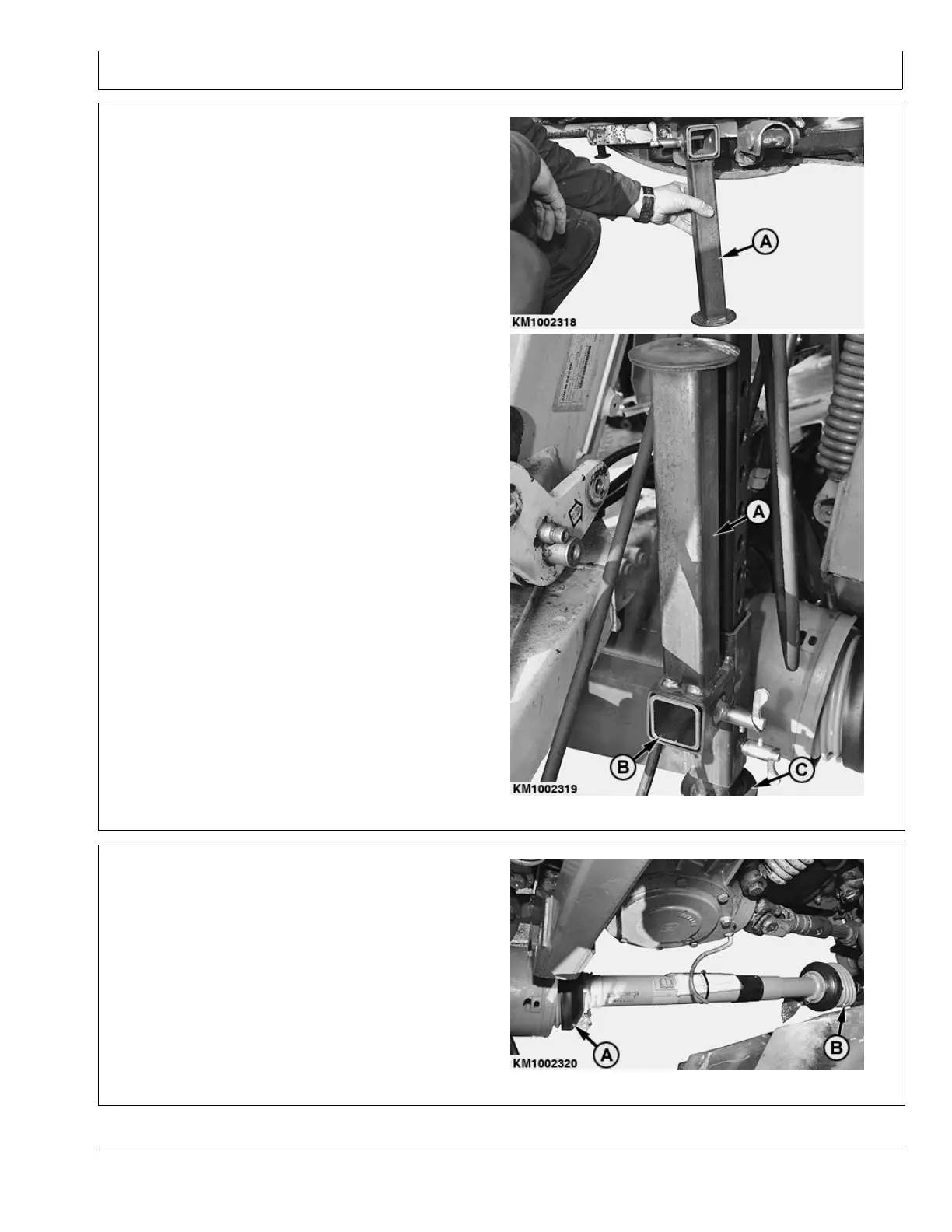

5. Remove front jackstands (A) and store them in the
mounting provided (B).
6. Pull rear jackstands (C) up and lock them in the
highest position.
A—Front Jackstands
B—Mounting
C—Rear Jackstands
KM1002318 —UN—18JUN12KM1002319 —UN—18JUN12
7. Connect the driveshaft (A) on the rotary harvesting
unit to the driveshaft (B) on the forage harvester.
IMPORTANT: Make sure that the slide ring engages
on both ends of the driveshaft.
A—Driveshaft - Rotary
Harvesting Unit
B—Driveshaft - Forage
Harvester
KM1002320 —UN—19JUN12
