Operating the Rotary Harvesting Unit
KM00321,000081B -19-05JUL18-2/6
Continued on next page KM00321,000081B -19-05JUL18-3/6

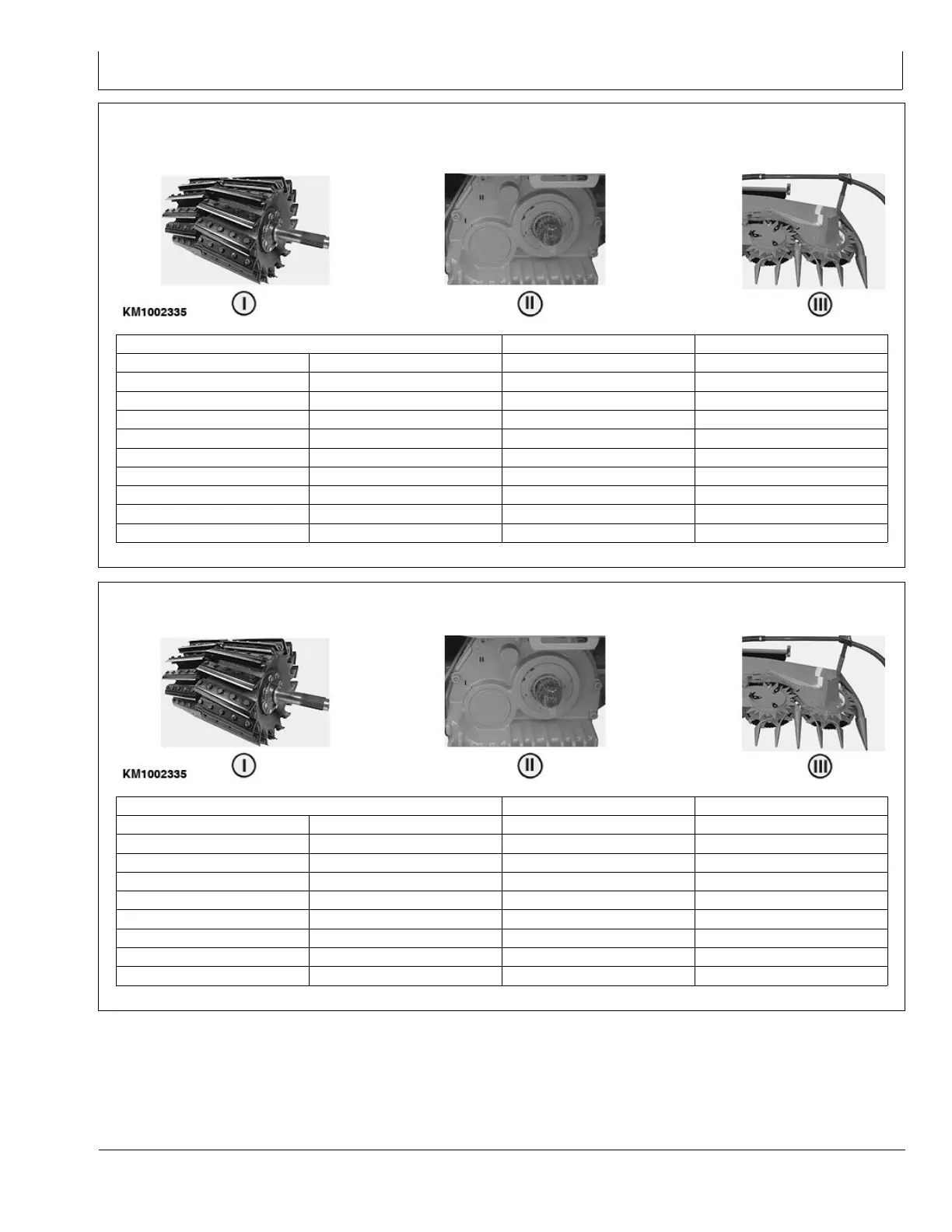

Cutterhead with 36 Knives (Types 494, 497, and 498)
Two-speed gear box (II) for normal length of cut
(standard)
KM1002335 —UN—29JUN12
I—Length of cut, number of knives
II—Rotary harvesting unit drive
III—Gathering drum speed
2x18 knives 2x9 knives
Speed
rpm
4 mm (0.16 in.) ,8 mm (0.31 in.)
1 51
,4,7 mm (0.18 in.) ,9,4 mm (0.37 in.)
1 51
,5,3 mm (0.21 in.) ,10,6 mm (0.42 in.)
1 51
,6,0 mm (0.24 in.) ,12,0 mm (0.47 in.)
1 51
,6,7 mm (0.26 in.) ,13,4 mm (0.52 in.)
2 64
,7,3 mm (0.29 in.) ,14,6 mm (0.57 in.)
2 64
,8 mm (0.31 in.) ,16 mm (0.63 in.)
2 64
,8,7 mm (0.34 in.) ,17,4 mm (0.68 in.)
2 64
,9,3 mm (0.37 in.) ,18,6 mm (0.73 in.)
2 64
Cutterhead with 36 Knives (Types 494, 497, and 498)
Two-speed gear box (II) for short length of cut (option)
KM1002335 —UN—29JUN12
I—Length of cut, number of knives
II—Rotary harvesting unit drive
III—Gathering drum speed
2x18 knives 2x9 knives
Speed
rpm
2,7 mm (0.11 in.) ,5,4 mm (0.21 in.)
2 41
,3,3 mm (0.13 in.) ,6,6 mm (0.26 in.)
2 41
,4,0 mm (0.16 in.) ,8,0 mm (0.31 in.)
2 41
,4,7 mm (0.18 in.) ,9,4 mm (0.37 in.)
2 41
,5,3 mm (0.21 in.) ,10,6 mm (0.42 in.)
1 51
,6,0 mm (0.24 in.) ,12,0 mm (0.47 in.)
1 51
,6,7 mm (0.26 in.) ,13,4 mm (0.52 in.)
1 51
,7,3 mm (0.29 in.) ,14,6 mm (0.57 in.)
1 51
