Operating the Rotary Harvesting Unit
KM00321,000035C -19-03DEC14-2/3
KM00321,000035C -19-03DEC14-3/3
Rotate the multi-speed drive
To select the third and fourth speeds, the drive must be
rotated around its central axis.

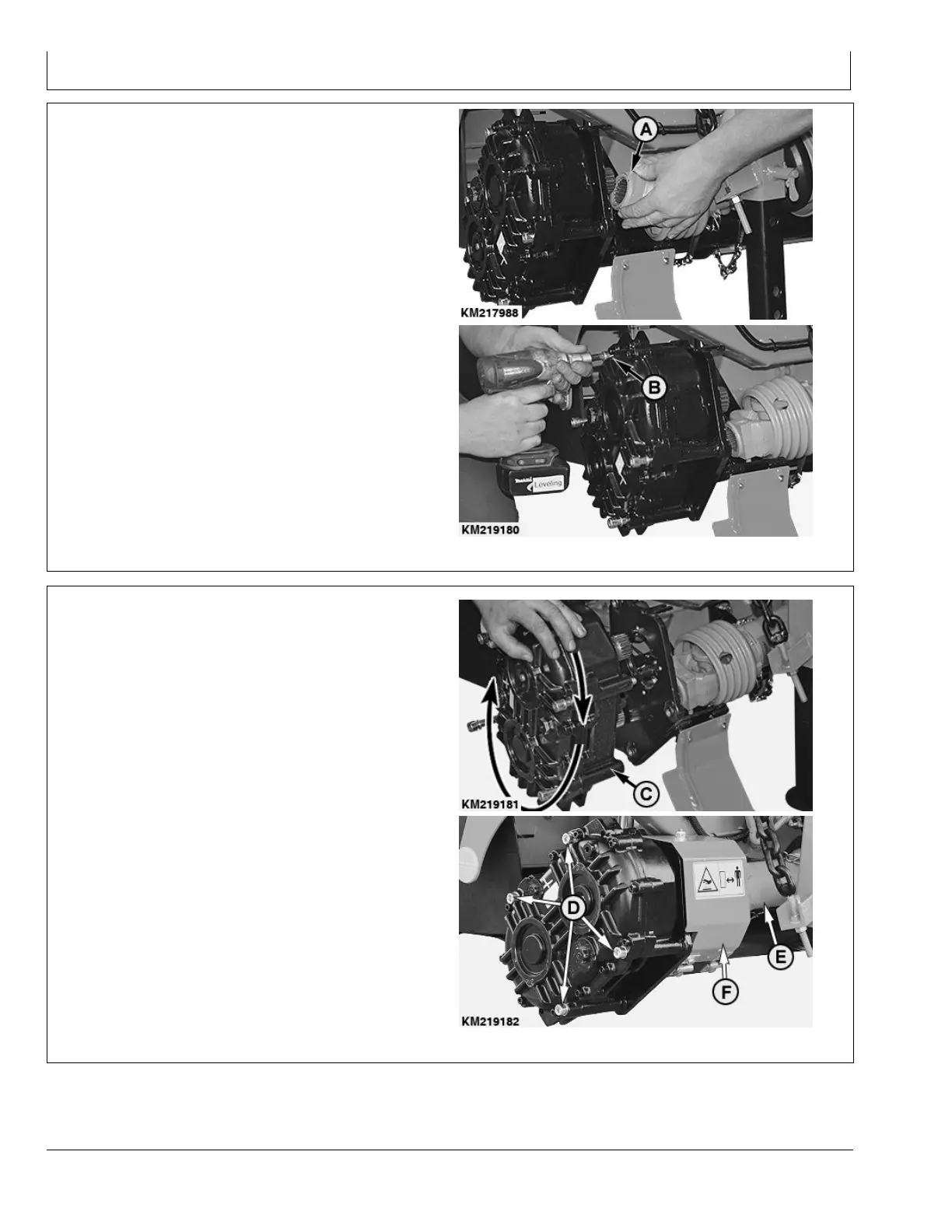

To do this, proceed as follows:
1. Remove u.j. shaft (A) from drive.
2. Loosen hex. socket screws (B).
A—U.J. Shaft B—Hex. Socket Screws
KM217988 —UN—15SEP14KM219180 —UN—15SEP14
3. Rotate drive (C) through 180°.
NOTE: The drive can be rotated without taking it off.
4. Tighten hex. socket screws (D) to specification.
Specification
Drive, Hex. Socket
Screws—Torque........................................................... 95 N·m (70 lb.-ft.)
5. Re-install u.j. shaft (E) and shield (F).
C—Drive
D—Hex. Socket Screws
E—U.J. Shaft
F— Shield
