X8 MIG WELDER 2.3 System structure
Caution:
If the circulation of the coolant liquid is obstructed, a thermal cutoff switches the
welding system off. Check and fix the error before using the welding system again.
If the error was caused in an unsuccessful filling of the cooler, refill the cooler. In
other cases, the error disappears automatically in 30 seconds.
8. Wireless pairing button
To pair the wire feeder or power source with Control Pad, press the button. If the power source
is connected to wire feeder(s), the wire feeder(s) pairs with Control Pad. If the power source is
not connected to a wire feeder, the power source pairs with Control Pad.
The LED is blue when the wire feeder or power source is wirelessly connected to Control Pad.
The LED is blinking blue when the wire feeder or power source is pairing with Control Pad.

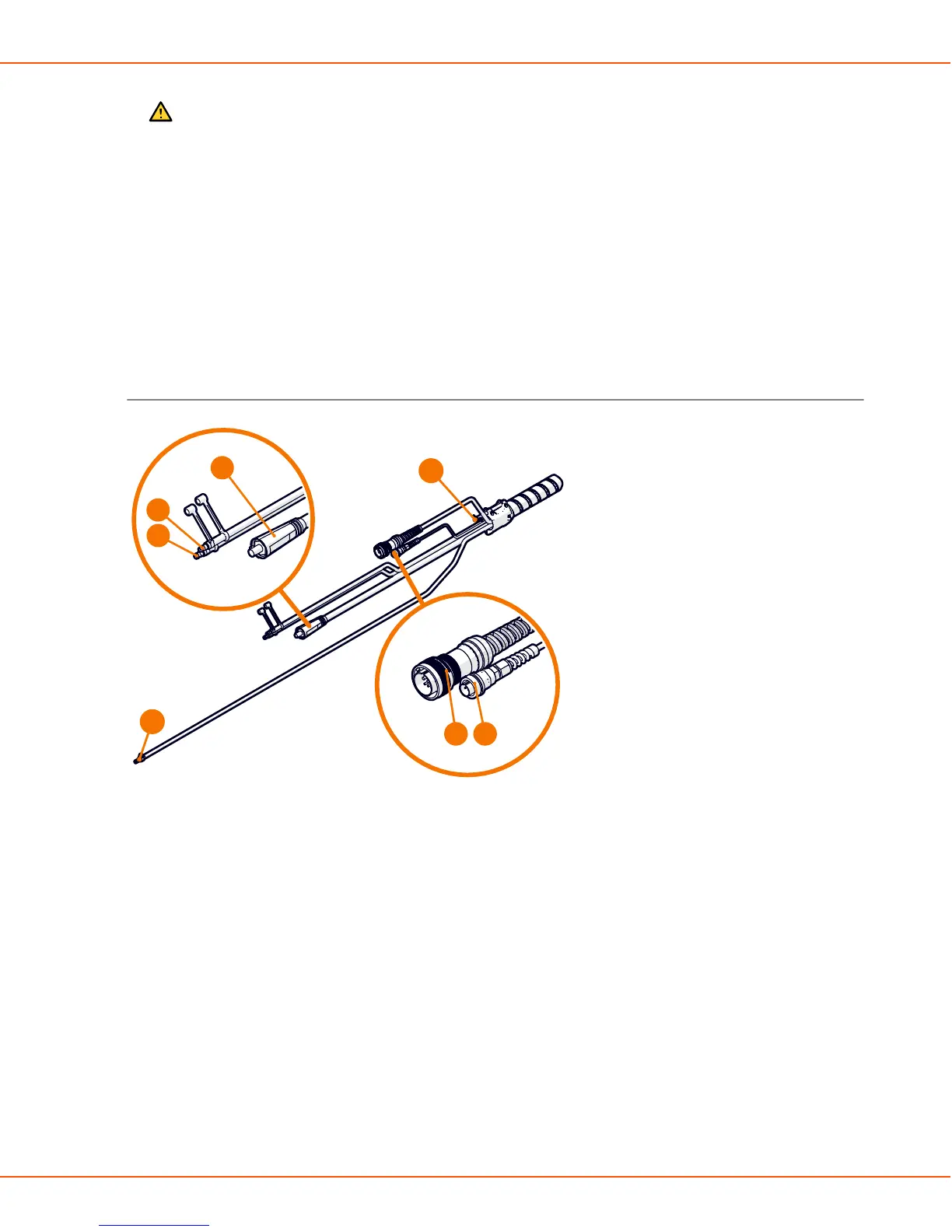

Interconnection cable
7
1
4
2
3
65
1. Shielding gas hose
2. Coolant inlet hose
3. Coolant outlet hose
4. Welding current cable
5. Control cable
6. Measurement cable
7. Strain relief pin
2.3.2 X8 Wire Feeder
This section describes the X8 Wire Feeder structure.
OPERATING MANUAL | EN 15
©
KEMPPI 2017 | 1817
