X8 MIG WELDER 2.3 System structure
3. Remote control
Connects to remote control devices (Control Pad). Supplies power and data connection with
12 V voltage.
4. Voltage sensing
Connects to the welding piece and measures arc voltage in real time.
5. Coolant outlet
Delivers cold coolant to the welding gun.
6. Coolant inlet
Receives heated coolant from the welding gun.
2.3.3 X8 MIG Guns
This section describes the structure of X8 MIG guns.

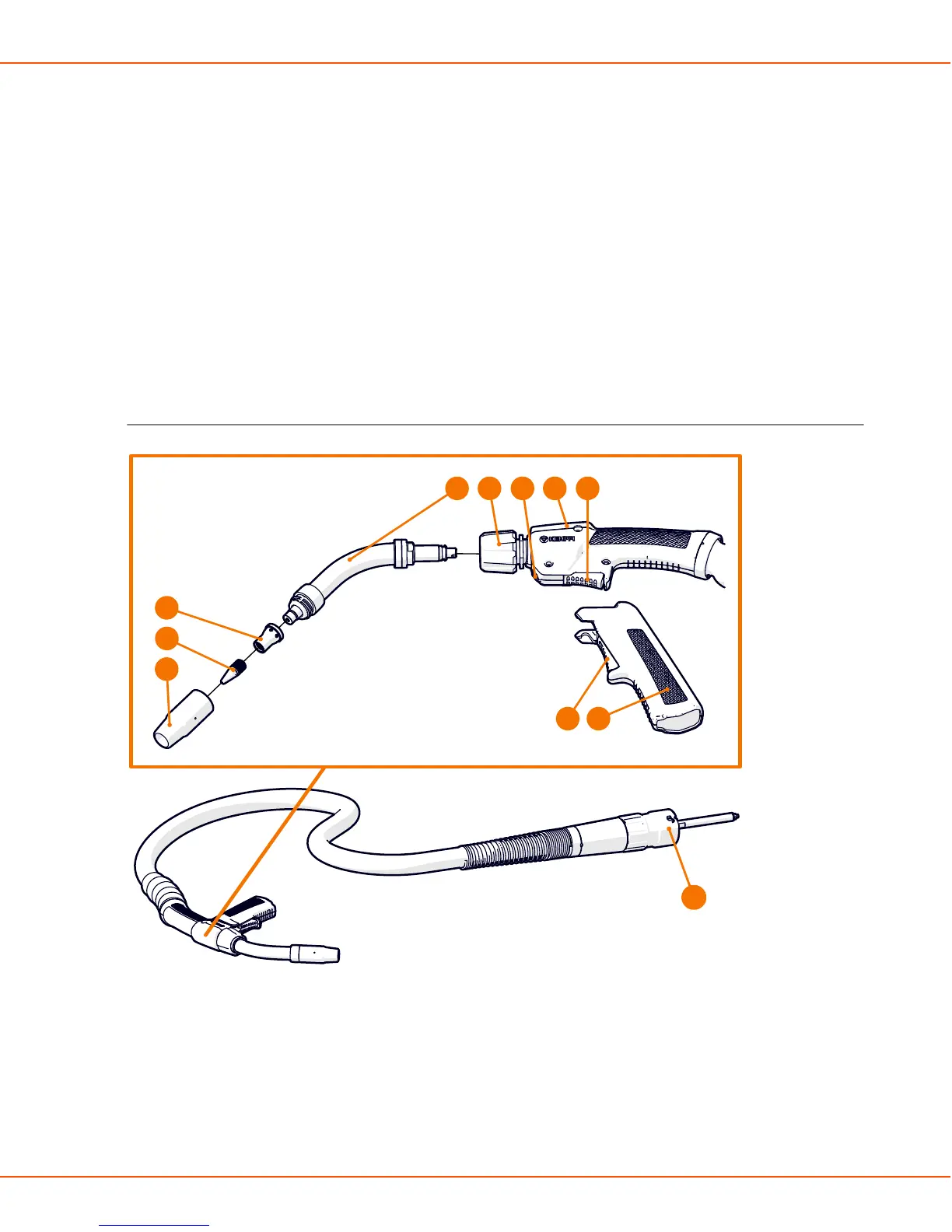

Gas-cooled gun
11
754 6 8
3
9
2
10
1
1. Gas nozzle
2. Contact tip
3. Contact tip adapter
4. Neck
5. Neck tightener
